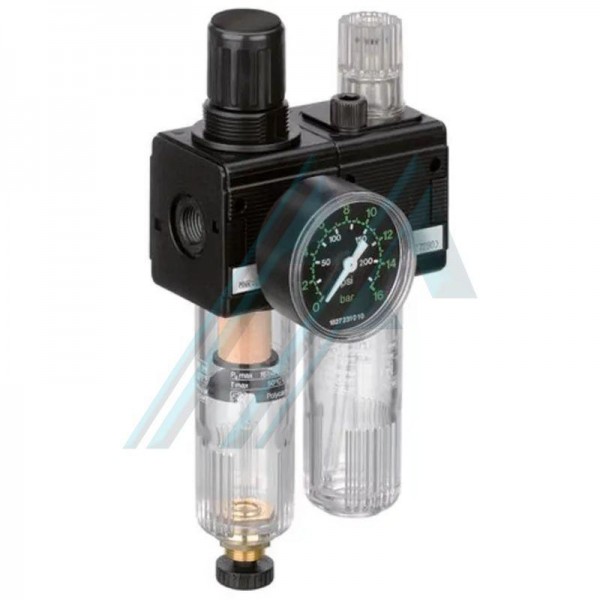

Maintenance unit with pressure regulating valve with lubricating filter 1/4" female thread

- 1/4" female thread.

- Flow rate 1,100 l/min.

- Filtration efficiency 5 µm.

- Semi-automatic condensate drain, open without pressure.

- Min.2 bar operating pressure.

- Max. operating pressure 16 bar.

- Min. ambient temperature -10°C+60ºC.

- Pressure regulation range min.0.5 bar.

- Pressure regulation range max.10 bar.

- Vertical mounting.

- Lubricator with a container volume of 50cm³.

- Manual oil filling type.

- Oil dosage with 1000 l/min 1-2 drops.
