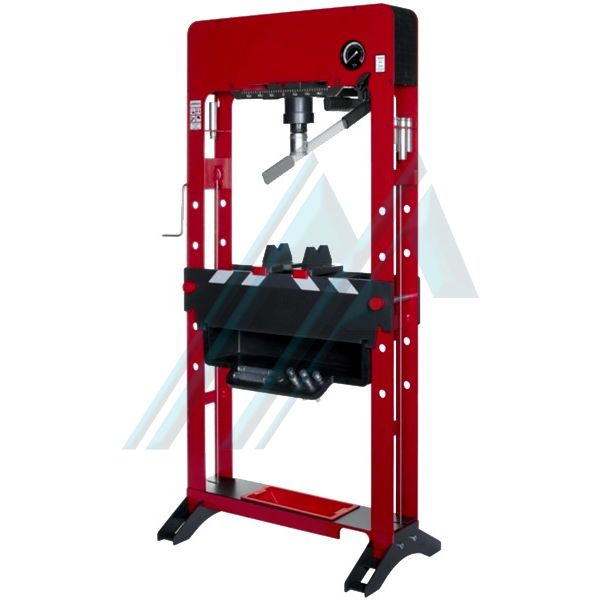

FEATURES

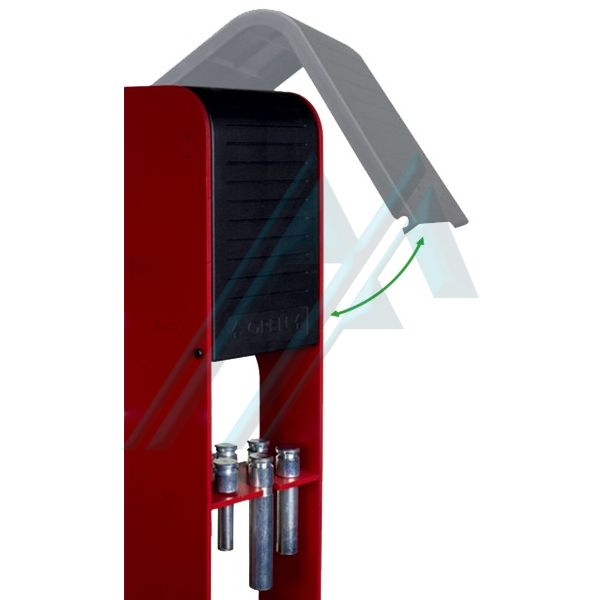

Design is more compact and more functional that integrates all the hydraulic elements within the chassis, protegiendolos and saving space in the workshop and in the transport.

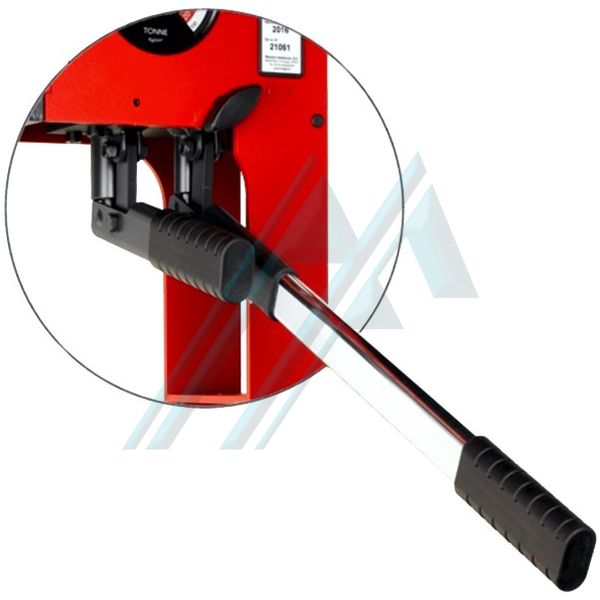

Different options of pumps: manual, single or two speed, manual-pneumatic or electric depending on the speed of work required.

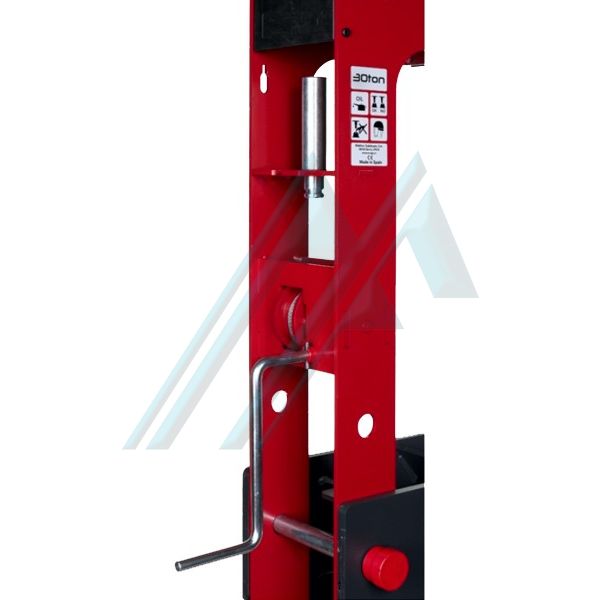

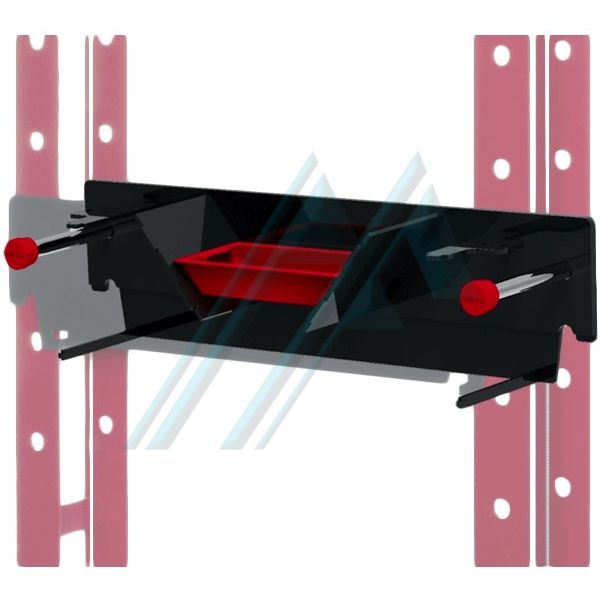

Work table adjustable in different heights.
Spindle extensible to approach faster and/or fine tuning.

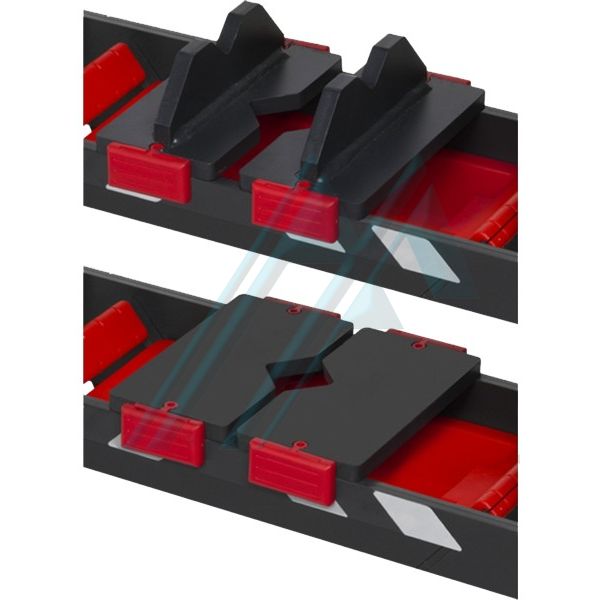

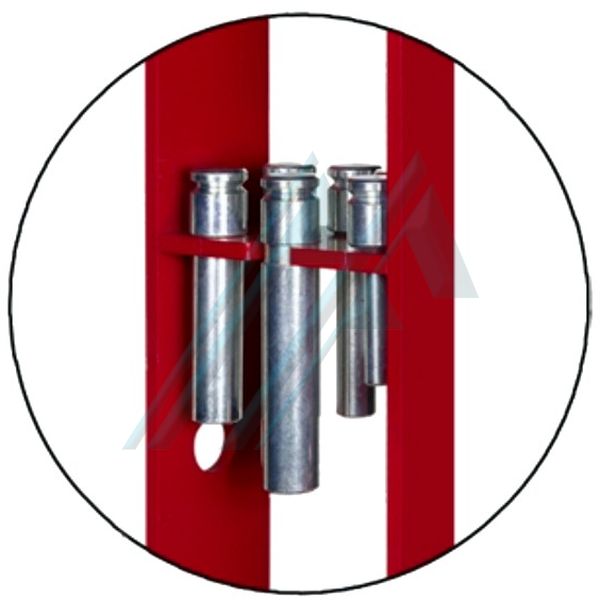

Include 2 braces in "V" guide of fixing and hole extraction. Patented.

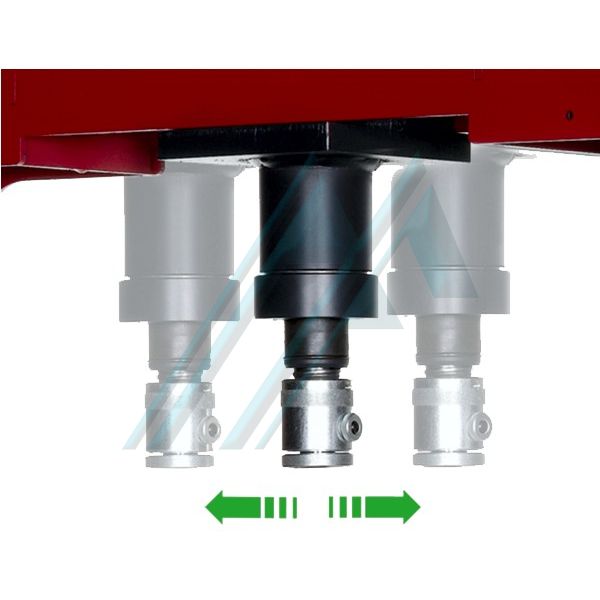

Cylinder sliding over the head on these models.
Manometer integrated in the chassis with cushioning to extend its life. Positioning of a manometer at the height of the view for easy reading.

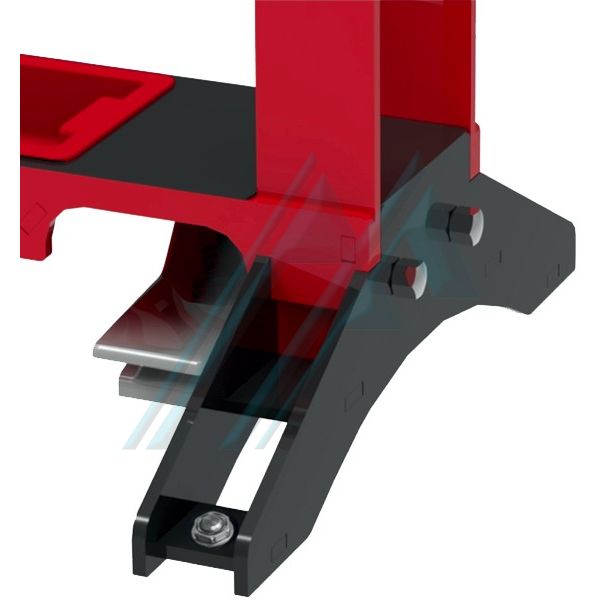

Presses ready for attachment to the floor or mounting of wheels. Tray removable.
Piston with automatic return.
Supplied with feet for transport disposable and ready to work.
SECURITY
- Safety valve against over loads.
- Limiter hydraulic route.

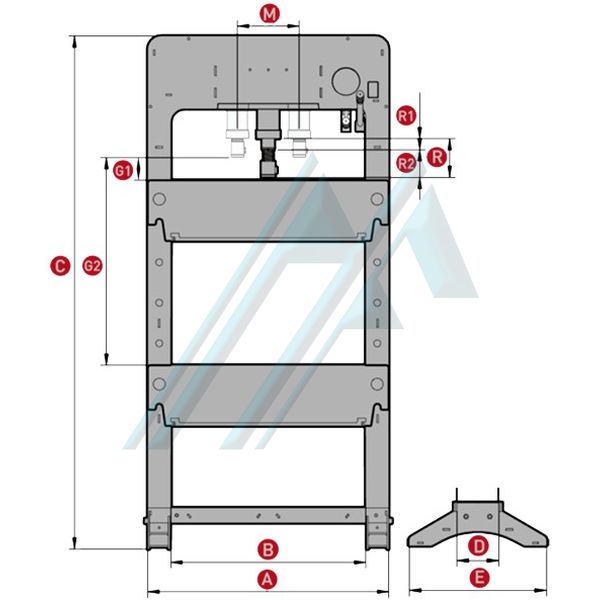

Capacity (t) | To | B | C | D | And | G1 min. | G2 MAX. | R1 Tour | R2 Tour spindle | M Tour side | Reference |
30 | 890 | 720 | 1900 | 150 | 490 | 84 | 770 | 120 | 75 | 212 | PRD30 |
50 | 890 | 720 | 1900 | 150 | 490 | 84 | 770 | 120 | 75 | 189 | PRD50 |
30 air foot pedal | 890 | 720 | 1900 | 150 | 490 | 84 | 770 | 120 | 75 | 212 | PRD30NF |
50 air pedal | 890 | 720 | 1900 | 150 | 490 | 84 | 770 | 120 | 75 | 189 | PRD50NF |
Models NF are air-driven using a foot pedal.
