FEATURES

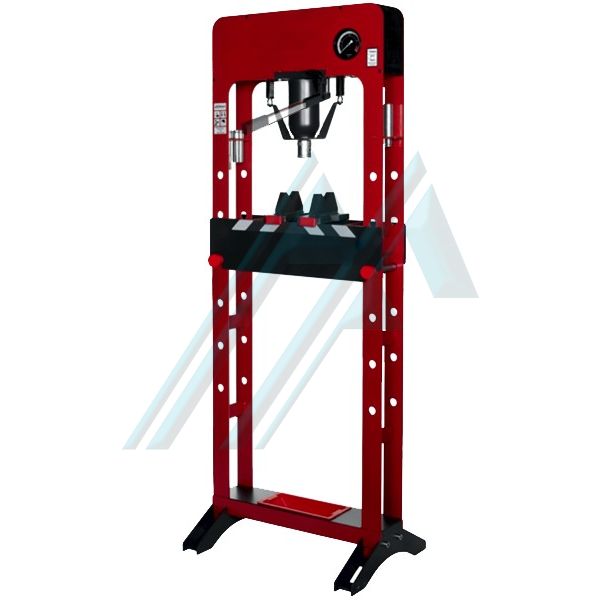

Design is more compact and more functional that integrates all the hydraulic elements within the chassis, protegiendolos and saving space in the workshop and in the transport.

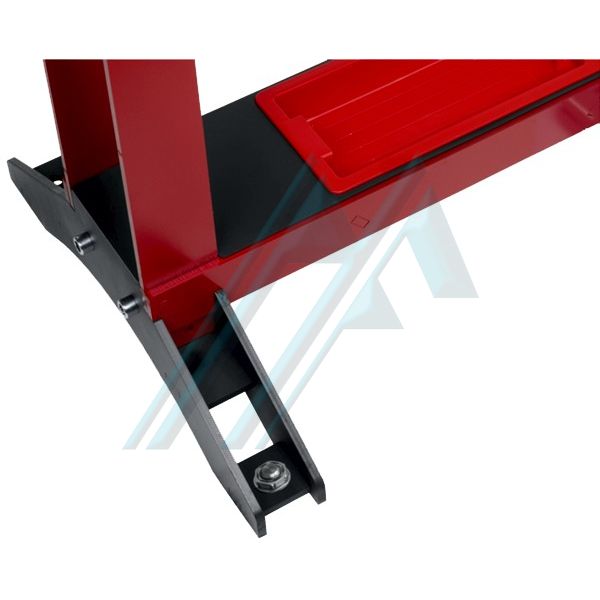

All of the knobs to pedal. Hands-free. Chassis of a single piece. Lighter but more robust.
Without uncomfortable wires of the winch. The table floats gently thanks to the manipulators tires. Work area completely free of obstacles. Patented.
Work table adjustable in different heights.
Spindle extensible to approach faster and/or fine tuning.

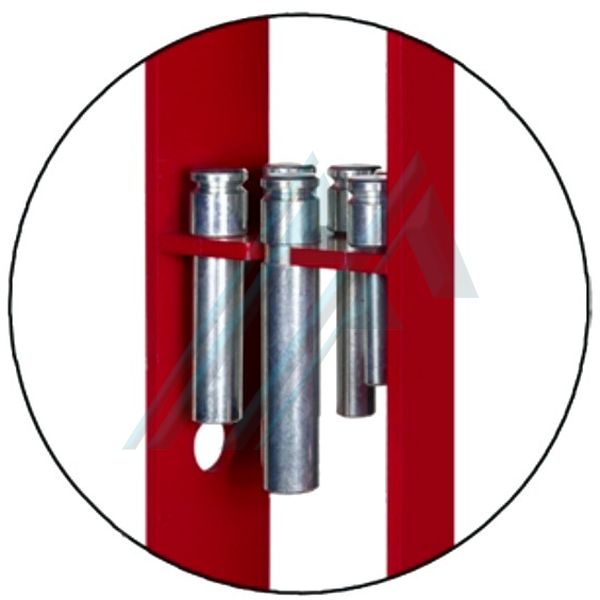

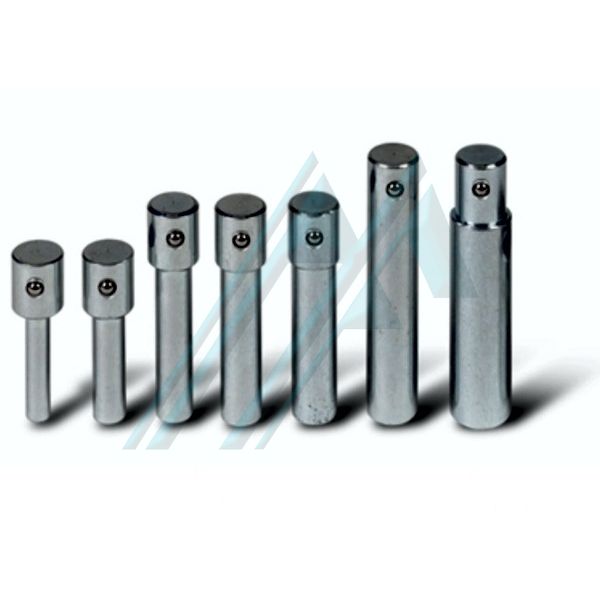

Include 2 braces in "V" guide of fixing and hole extraction. Patented.
Cylinder sliding over the head on these models.
Manometer integrated in the chassis with cushioning to extend its life. Positioning of a manometer at the height of the view for easy reading.
Piston with automatic return.
SECURITY
- Safety valve against over loads.
- Limiter hydraulic route.
|

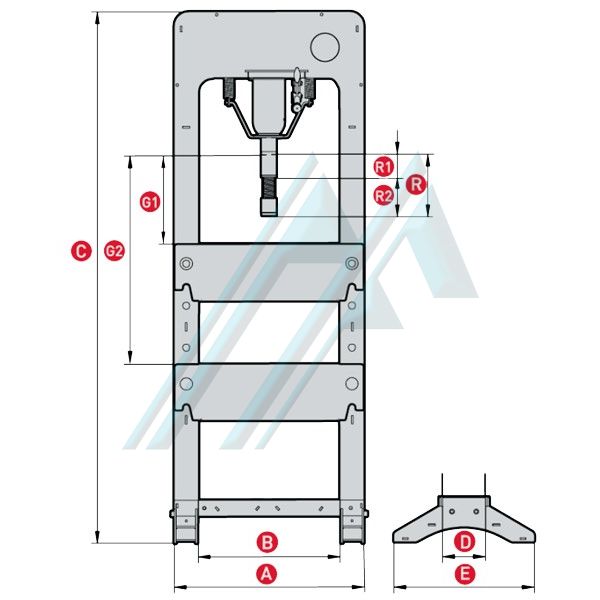

Capacity (t) |
To | B | C | D | And |
G1 min. |
G2 MAX. |
R1 Tour |
R2 Tour spindle |
M Tour side |
Reference |
| 30 | 890 | 720 | 1920 | 195 | 490 | 85 | 470 | 120 | 75 | 252 | PRP30 |
| 50 | 890 | 720 | 1920 | 195 | 490 | 80 | 465 | 120 | 75 | 229 | PRP50 |
The prices shown on the website do not include VAT
The shipping costs are calculated automatically in the cart according to the weight of the product and the place of delivery
