90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 6 outside.- Peasda series.- Material forged steel.- Bichromated anti rust treatment.
5,13 €
90° elbow threaded nut M-12X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-12X150.- For hydraulic pipe Ø 6 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
4,63 €
90° elbow threaded nut M-24X150 to hydraulic pipe Ø 16 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-24X150.- For hydraulic pipe Ø 16 outside.- Heavy series.- Material forged steel.- Bichromated anti-oxidation treatment.
11,50 €
90° elbow threaded nut M-22X150 to hydraulic pipe Ø 15 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-22X150.- For hydraulic pipe Ø 15 outside.- Light series.- Material forged steel.- Bichromated antioxide treatment.
7,83 €

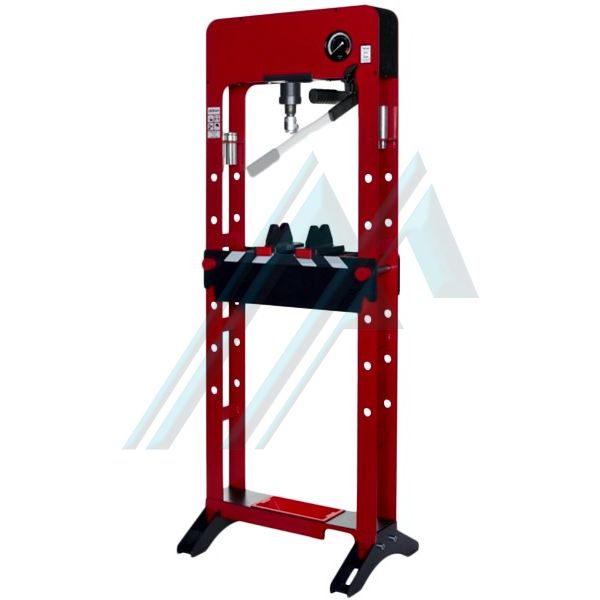

FEATURES
Design is more compact and more functional that integrates all the hydraulic elements within the chassis, protegiendolos and saving space in the workshop and in the transport.
Different options of pumps: manual, single or two speed, manual-pneumatic or electric depending on the speed of work required.

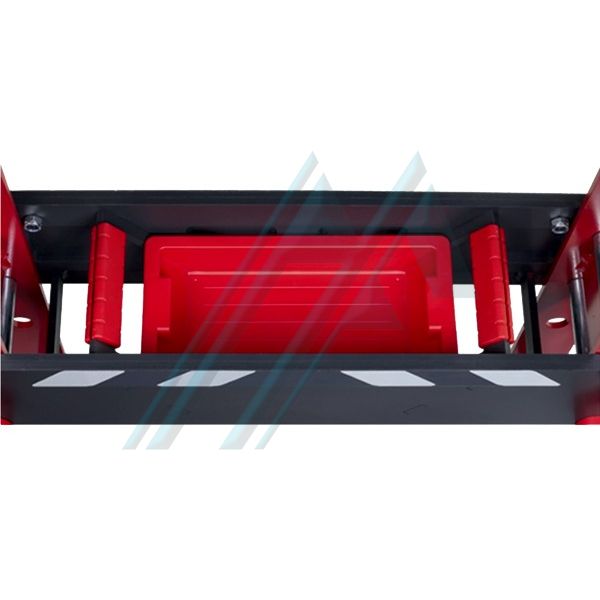

Work table adjustable in different heights.
Spindle extensible to approach faster and/or fine tuning.
Include 2 braces in "V" guide of fixing and hole extraction. Patented.
Cylinder sliding over the head on these models.
Manometer integrated in the chassis with cushioning to extend its life. Positioning of a manometer at the height of the view for easy reading.

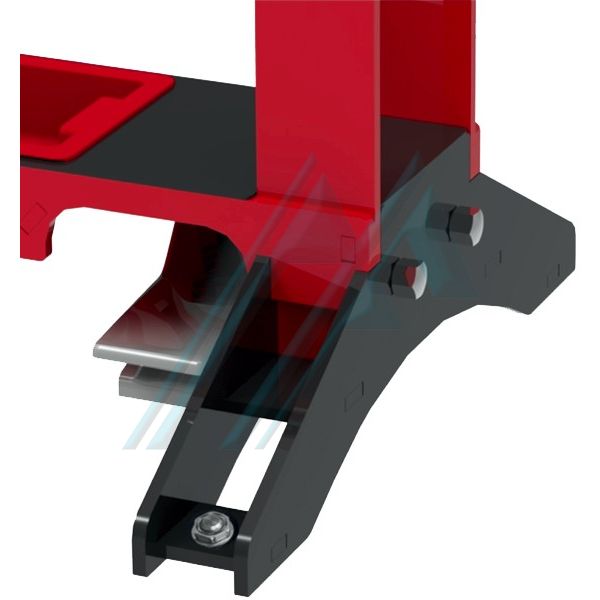

Presses ready for attachment to the floor or mounting of wheels. Tray removable.
Piston with automatic return.
SECURITY
- Safety valve against over loads.
- Limiter hydraulic route.

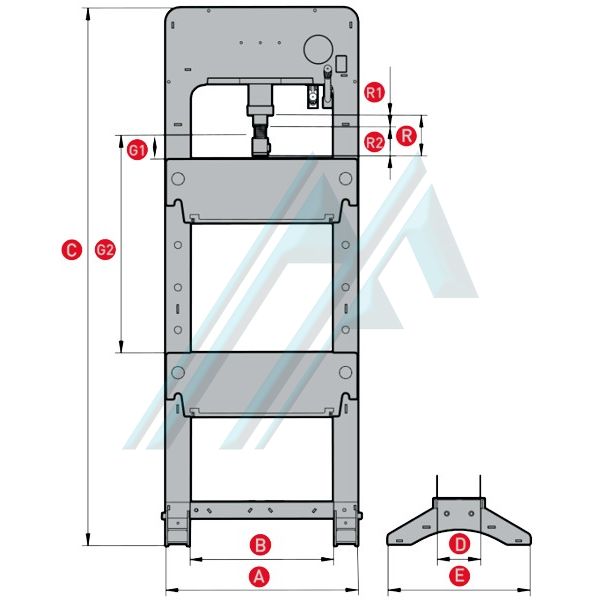

Capacity (t) | To | B | C | D | And | G1 min. | G2 MAX. | R1 Tour | R2 Tour spindle | M Tour total | Reference |
| 20 | 670 | 530 | 1850 | 132 | 488 | 21 | 858 | 120 | 75 | 195 | PRC20 |
| 30 | 670 | 530 | 1850 | 132 | 488 | 17 | 854 | 120 | 75 | 195 | PRC30 |
| 50 | 670 | 530 | 1850 | 132 | 488 | 66 | 766 | 120 | 75 | 195 | PRC50 |
| 20 | 670 | 530 | 1850 | 132 | 488 | 21 | 858 | 120 | 75 | 195 | PRC20NF |
| 30 | 670 | 530 | 1850 | 132 | 488 | 17 | 854 | 120 | 75 | 195 | PRC30NF |
| 50 | 670 | 530 | 1850 | 132 | 488 | 66 | 766 | 120 | 75 | 195 | PRC50NF |
Models NF are air-driven using a foot pedal.
