90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 6 outside.- Peasda series.- Material forged steel.- Bichromated anti rust treatment.
5,13 €
90° elbow threaded nut M-12X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-12X150.- For hydraulic pipe Ø 6 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
4,63 €
90° elbow threaded nut M-24X150 to hydraulic pipe Ø 16 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-24X150.- For hydraulic pipe Ø 16 outside.- Heavy series.- Material forged steel.- Bichromated anti-oxidation treatment.
11,50 €
90° elbow threaded nut M-22X150 to hydraulic pipe Ø 15 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-22X150.- For hydraulic pipe Ø 15 outside.- Light series.- Material forged steel.- Bichromated antioxide treatment.
7,83 €

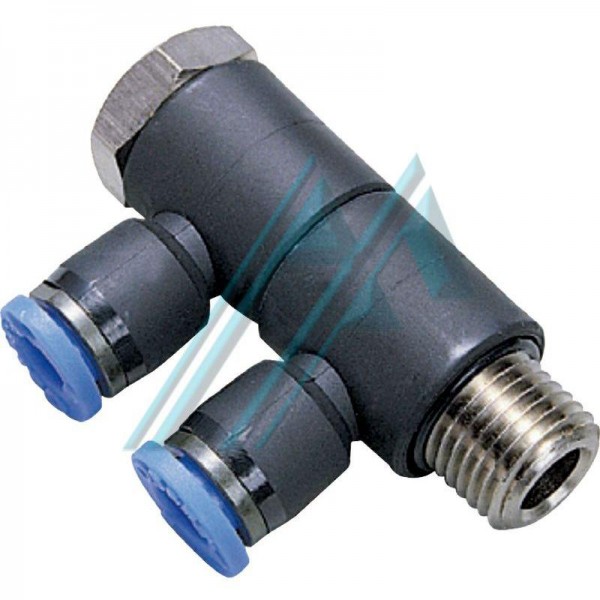

FEATURES:
- Lightweight and highly resistant body: made of technopolymer with fiberglass.
- More compact: reduction in size but without restriction of passage or decrease in effective flow.
- Maximum working pressure: 20 bar.
- Temperature: from -20ºC to + 80ºC.
- Free of silicones and oils in the assembly.
- Meets ROHS regulations on environmental protection.
- Threaded parts: nickel-plated brass.
- Great ease of connection: clamping system.
- Easy disconnection: exclusive button.
- Tefloned on the conical male threads.
- Joint cylindrical thread OR-NBR.
- Adjustable L and T threaded models.
- Light, compact and ergonomic.
- Main applications: compressed air – vacuum.
- Stainless steel multi-grip pliers: optimal clamping to the tube.
- Exclusive internal collar with maximum tube-fitting tightness.
- Vacuum pressure: -750 mm Hg.
