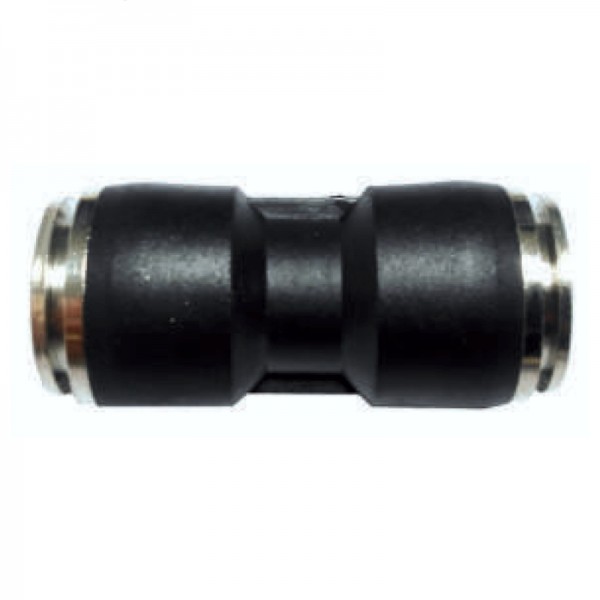

Automatic plastic - straight metal in inches.
Instant fittings with a light, compact and high resistance body for polyamide and polyurethane tube.
Availability : In stock, usually ships within one business day
Boquilla de engrase con un mango de sujeccion 1/8"
- Enchufe rápido para engrasadores hidráulicos.- Presión de servicio 250 Bar.- Rosca hembra 1/8".- Doble mango de sujeción. - Presionar la manilla para fijar.- Tamaño: 9 x 5 cm.- Material acero.
14,40 €
16,35 €
16,60 €
30,75 €
13,90 €
21,09 €
12,45 €
21,64 €

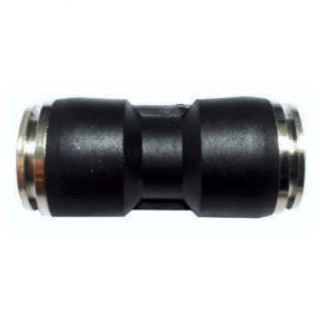

Automatic plastic - straight metal in inches.
Instant fittings with a light, compact and high resistance body for polyamide and polyurethane tube.
Availability : In stock, usually ships within one business day
FEATURES:
Light and high resistance body composed of tenopolymer with fiberglass.
Smaller size without passage restriction or decrease in effective flow.
Maximum working pressure: 20 bar.
Temperature: From -20°C to +80°C.
Without silicones and oils in the assembly.
Complies with ROHS regulations on environmental protection.
Nickel-plated brass threaded parts.
Clamping connection system.
Exclusive push-button disconnection system.
Teflon plated on the tapered male threads.
Joint cylindrical thread OR - NBR.
Adjustable L and T threaded models.
Light, compact and ergonomic.
Its main applications: compressed-vacuum air.
Stainless steel multi-grip clamp for optimal clamping to the tube.
Exclusive internal collar with maximum tube and fitting tightness.
Vacuum pressure: -750mmHg.
62,08 €
14,19 €
20,27 €
69,37 €
61,05 €
11,70 €
11,70 €
12,72 €
17,40 €
The prices shown on the website do not include VAT
The shipping costs are calculated automatically in the cart according to the weight of the product and the place of delivery
