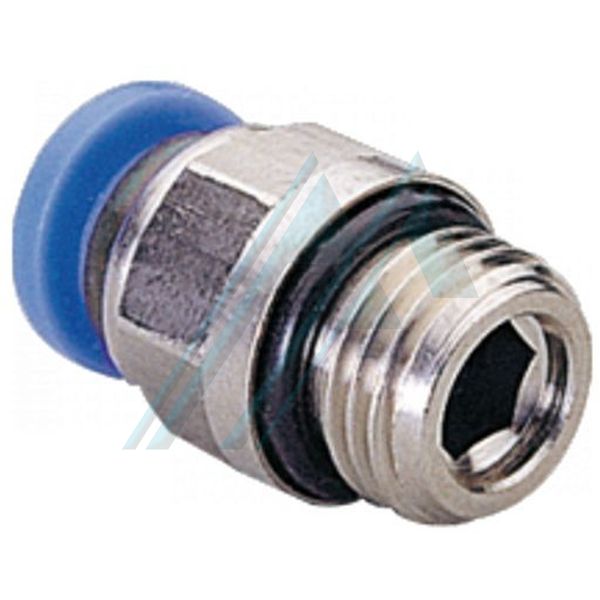

Fittings instant body lightweight, compact and high resistance for tube of polyamide and polyurethane. Thread cylinder with board.
Availability : In stock, usually dispatched in one working day
Ø Outer diameter tube
|
Connection thread
| ||||
M5 | M6 | 01 | 02 | 03 | 04 |
M5x0,8 | M6x1 | R-1/8” | R-1/4” | R-3/8” | R-1/2” |
FEATURES:
- Lightweight body and high strength: composite tenopolímero with glass fiber.
- More compact: reduced size, but without restriction of the step or decrease of cash flow.
- Maximum working pressure: 20 bar.
- Temperature: from -20°C to +80°C.
- Free of silicones and oils in the assembly.
- Complies with the ROHS directive on protection of environment.
- Parts rocadas: nickel-plated brass.
- Ease of connection: System gripping.
- Easy to disconnect: Push button exclusive.
- Teflonado on the rocks male conical.
- Thread of a cylindrical joint OR - NBR.
- Threaded models in L-and T-directional.
- Main applications: compressed Air-vacuum.
- Clamp multiagarre Stainless steel: Optimal clamping of the tube.
- Collar inner sole with high insulation-to-pipe fitting.
- Vacuum pressure: -750 mm Hg.
