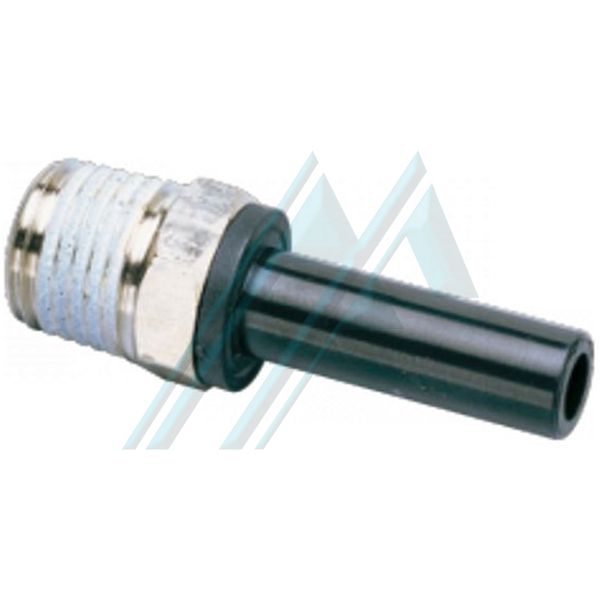

Lightweight, compact and high resistance push-in fittings for polyamide and polyurethane tubing . Tapered thread.
Availability : In stock, usually shipped within one business day
Lightweight, compact and high resistance push-in fittings for polyamide and polyurethane tubing . Tapered thread.
Availability : In stock, usually shipped within one business day
OR External diameter of the tube | Connection thread | ||||
M5 | M6 | 0 1 | 02 | 03 | 04 |
M5x0.8 | M6x1 | R-1/8 " | R-1/4 " | R-3/8 " | R-1/2 " |
CHARACTERISTICS:
- Lightweight and high strength body: tenopolymer composite with fiberglass.
- More compact: reduction in size but without restriction of passage or decrease in effective flow.
- Maximum working pressure: 20 bar.
- Temperature: from -20 ° C to + 80 ° C.
- Free of silicones and oils in the assembly.
- Meets ROHS regulations on environmental protection.
- Rock parts: nickel-plated brass.
- Great ease of connection: clamping system.
- Easy disconnection: Exclusive button.
- Tefloned on the conical male rocks.
- Joint cylindrical thread OR - NBR.
- Adjustable L and T threaded models.
- Main applications: Compressed air-vacuum.
- Stainless steel multi-grip pliers: Optimum clamping to the tube.
- Exclusive internal collar with maximum tube-fitting sealing.
- Vacuum pressure: -750 mm Hg.
62,08 €
14,19 €
29,73 €
69,37 €
61,05 €
