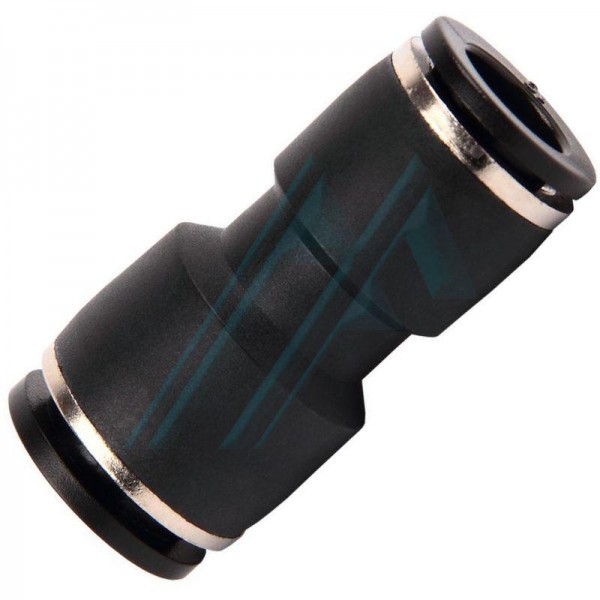

Tube fitting outer Ø 4 mm - tube outer Ø 3 mm

- Light body and high resistance: technopolymer composite with fiberglass.

- Maximum working pressure: 20 bar.

- Temperature: from -20ºC to +80ºC.

- Free of silicones and oils in the assembly.

- Complies with ROHS regulations on environmental protection.

- Easy connection: clamping system.

- Easy disconnection: exclusive push button.

- Lightweight, compact and ergonomic.

- Main applications: compressed air-vacuum.

- Inox multi-grip clamp: optimum clamping to the pipe.

- Exclusive internal collar with maximum tube-fitting tightness.

- Vacuum pressure: -750 mm Hg.

CHARACTERISTICS:

- Light body and high resistance: technopolymer composite with fiberglass.

- More compact: reduced size but without restriction of passage or reduction of effective flow rate.

- Maximum working pressure: 20 bar.

- Temperature: from -20ºC to +80ºC.

- Free of silicones and oils in the assembly.

- Complies with ROHS regulations on environmental protection.

- Threaded parts: nickel-plated brass.

- Easy connection: clamping system.

- Easy disconnection: exclusive push button.

- Teflon-coated on tapered male threads.

- OR-NBR joint cylindrical thread.

- Adjustable L and T threaded models.

- Lightweight, compact and ergonomic.

- Main applications: compressed air-vacuum.

- Inox multi-grip clamp: optimum clamping to the tube.

- Exclusive internal collar with maximum tube-fitting tightness.

- Vacuum pressure: -750 mm Hg.
