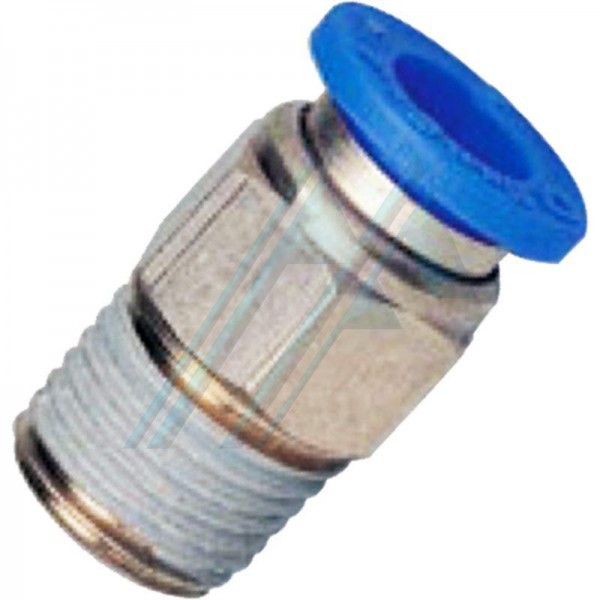

Straight fitting ø 15 1/2" pc1504

Technical data sheet

.

- CHARACTERISTICS:

- Lightweight and highly resistant body: technopolymer composite with fiberglass.

- More compact: reduced size but without restricted passage or reduced effective flow.

- Maximum working pressure: 20 bar.

- Temperature: from -20ºC to +80ºC.

- Free of silicones and oils during assembly.

- Complies with ROHS regulations for environmental protection.

- Threaded parts: nickel-plated brass.

- Easy connection: clamping system.

- Easy disconnection: exclusive push button.

- Teflon coating on the tapered male threads.

- OR-NBR joint cylindrical thread.

- Adjustable L and T threaded models.

- Lightweight, compact and ergonomic.

- Main applications: compressed air–vacuum.

- Stainless steel multi-grip clamp: optimal support for the tube.

- Exclusive internal collar with maximum tube-fitting tightness.

- Vacuum pressure: -750 mm Hg.
