90° elbow threaded nut M-52X150 to hydraulic pipe Ø 42 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 42 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
51,29 €
90° elbow threaded nut M-52X150 to hydraulic pipe Ø 38 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 38 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
122,42 €
90° elbow threaded nut M-45X200 to hydraulic pipe Ø 35 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-45X200.- For hydraulic pipe Ø 35 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
37,50 €
Single-acting pneumatic cylinder with piston diameter 25 mm
- Single-acting pneumatic cylinder. - Front spring. - Piston diameter Ø 25 mm. - Stroke 50 mm. - Material of the stem and sleeve stainless steel. - Working temperature 0ºC to +80ºC. - Working pressure from 1 Bar to 10 Bar.
75,45 €
- PVDA-LAN pressure reducing cartridge valve
- Mounting in T-21A cavity. - Pilot operated. - Adjustment using allen screw. - Adjustment from 7 to 210 Bar. - Nitrile gasket material.
287,86 €
Pressure regulating valve for threading in block Hawe CDK 3 51
- Pressure regulator valve for threading into a block. - Block not included. - Flow rate 12 l/min. - Pressure regulation from 15 to 165 BAR. - Adjustable with tool.
226,00 €
Flexible 1/4" double textile braid tubing
SELLING PRICE PER METER: 1 UNIT = 1 METER
4,63 €
Flexible tubing 3/16" double textile braid
SELLING PRICE PER METER: 1 UNIT = 1 METER
5,96 €
APPLICATIONS:
Specially recommended for lubrication of:
- Transport vehicles (Fleets, Public Works, Mining ...) for their excellent performance on hubs, wheels, electric brakes..., it allows more than 100,000 Km. without regreasable
- Mechanical elements, working at high temperature.
- Bearing and flat bearing.
- Cams, guides and elements of slow slip that require a large adhesion at a high temperature.

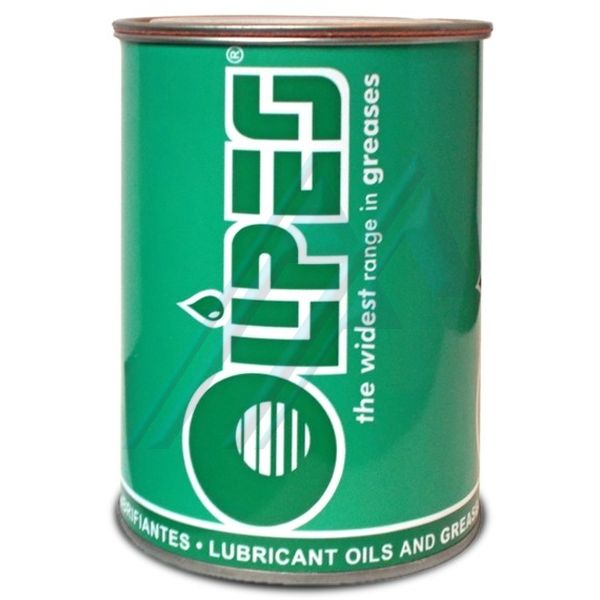

DESCRIPTION:
Fat complex of lithium for high-temperature applications. Specially designed to reduce the frequency of re-lubrication up to 80% with respect to the fat lithic conventional.
PROPERTIES:
- Ensures a cost-effective maintenance through the reduction of costs for repairs or lubrication.
- High protection and long service life, even in very aggressive environments.
−Service temperature of -20ºC to +160ºC, with tips 180 ° C (in static or low speed).
−Superior anti-Wear protection, excellent Extreme Pressure (EP).
− The technology of the thickener complex allows the grease attached to the rolling elements remain fluid, while the rest form a “screen” protector preventing the action of external contaminants (dust, moisture, etc).
− Its advanced formulation also prevents the hardening suffered by conventional greases.
− Resistant to oxidation, stable to shearing, protection against corrosion and wear.
- Stable against the mechanical work and vibration, even in the presence of contamination by water.
APPLICATIONS:
- Transport vehicles (Fleets, Public Works, Mining ...) for their excellent performance on hubs, wheels, electric brakes..., it allows more than 100,000 Km. without regreasable.
- Mechanical parts operating at high temperature.
- Bearing and flat bearing.
- Cams, guides and elements of slow slip that require a large adhesion at a high temperature.
SPECIFICATIONS:
CLASSIFICATION / GRADE | NLGI 2/3 |
DIN 51502 | KP2P-20 |
ISO 6743/9 | L-XBEHB-2 |
NEW HOLLAND | NH 710A |
NLGI | GC-LB |
JOHN DEERE | J13C3 / J25C |
PHYSICAL-CHEMICAL CHARACTERISTICS:
FEATURES | STANDARD | VALUE |
Consistency (NLGI Grade) | DIN 51818 | 2 / 3 |
Thickener (Nature) | Lithium complex | |
Color | Visual | Blue |
Base oil (viscosity Grade ISO) | ISO 3448 | 150 |
Drop point, ºC (ºF) | ASTM D-2265 | > 250 (482) |
Water resistance, 3h, 90 ° C (Degree) | DIN 51807 | 1 |
Test EP 4-Ball weld (kg) | ASTM D-2596 | > 315 |
Test Wear, 4-Ball, Footprint (mm) | ASTM D-2266 | < 0,6 |
