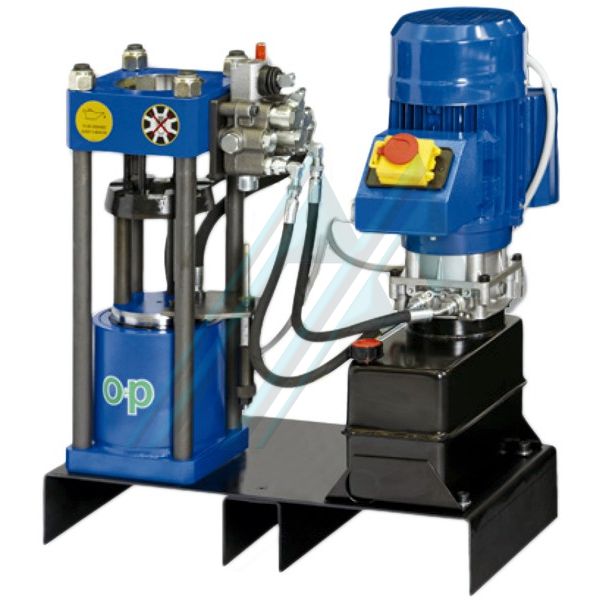

The press TUBOMATIC 040 EL is ideal machine for crimping hydraulic hoses flexible of up to 3/4" with 6 spirals and 1" 4-spiral.
Check price and availability
TUB040EL
MAIN FEATURES:
- Central hydraulic drive.
- Working position vertical.
| Pressing force | 108 Tons |
| 6 spirals 2 pieces | 1 |
| 4 spirals | 1 |
| Ø maximum swaging | 58 mm (2.284") with clamps special |
| Crimping / hour | 451 |
| Opening jaws | Ø + 37 mm (Ø + 1.457) |
| Standard voltage | 230 V 50 Hz 1 PH |
| Engine power | 1.8 Kw (2.4 Hp) |
| Dimensions L x P x A | 570 x 370 x 660 mm |
| Weight without oil | 102 kg |
| Oil | 5 litres |
| Clamps to mark | Optional accessories |
| Jaws special | Optional accessories |
| Special voltage | Acceosorio optional |
The jaws are sold separately.
