Electroválvula para aire comprimido 5 vías 3 posiciones
S9581-RFE
390,63 €
- Motor-pump coupling.- Maximum Shaft Diameter 25 mm.- Type Star 75 X 16.- Inside Diameter Star 31 mm.- Mounts star A75/16.- Maximum Torque 16,8 kgm.- Maximum Revolutions. 7000.- Weight Kgs 0,9.
76,44 €
MW 5/3 c/c 1/4" 90° lever valve
80,82 €
Valve3/2 normally closed thread1/8"
78,75 €
MW pneumatic cylinder ø 80 C-250 D/E
302,10 €
Inline flow divider tq 33-A 3 HAWE
- Online flow divider. - Flow rate 45 l/min. - 1/2" female thread. - Carbon steel material.
432,25 €
- With decompression. - D 5116 (02-2016-1.1). - Mounting on base plate not included. - Service pressure pmax: 500 bar. - Control flow Qmax: 2 l/min.
437,20 €
Male conical fitting 1/4 "pipe Ø 4 x 6
Nickel-plated brass quick connector. Swivel Tapered BSP Male Threads. Tube diameter: 4 x 6. 1/4 "thread.
2,20 €

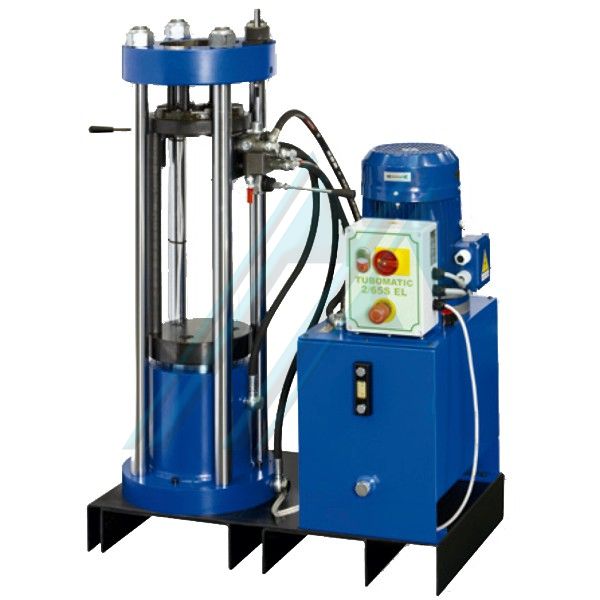

MAIN CHARACTERISTICS :
- Hydraulic central for the drive.
- Vertical working position.
* Jaws and other accessories are sold separately.
TECHNICAL CHARACTERISTICS:
PRESSING FORCE | 260 TONS |
6 SPIRALS 2 PIECES | 1 "1/2 |
4 SPIRALS | 2" |
2 BRAIDS | 2" |
Ø MAXIMUM PRESSING | 82 MM (3.228 ") |
PRESSING / HOUR | 430 |
OPENING JAWS | Ø + 33 MM (Ø + 1.299 ") |
MAXIMUM CLAMP-FREE OPENING | 110 MM (4.331 ") |
STANDARD VOLTAGE | 400 V 50 Hz 3 PH |
ENGINE POWER | 4 KW (5.5 HP) |
DIMENSIONS L x P x H | 900 x 500 x 1170 MM (35.433 "x 19.685" x 46.063 ") |
WEIGHT WITHOUT OIL | 340 KG (750 LBS) |
OIL | 35 LITERS |
ACCESSORIES | |
OIL | Included |
Optional | |
SPECIAL JAWS | Optional |
SPECIAL VOLTAGE | Optional |
You can make your inquiries about this product at info@hidraflex.com
