Adapter male JIC thread 1"5/8 to male thread 1"7/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
25,88 €
Adapter male JIC thread 1"5/8 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
18,17 €
Adapter male JIC thread 1"5/8 to male thread 1"5/16 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
23,08 €
Adapter male JIC thread 1"5/16 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
52,17 €
90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €

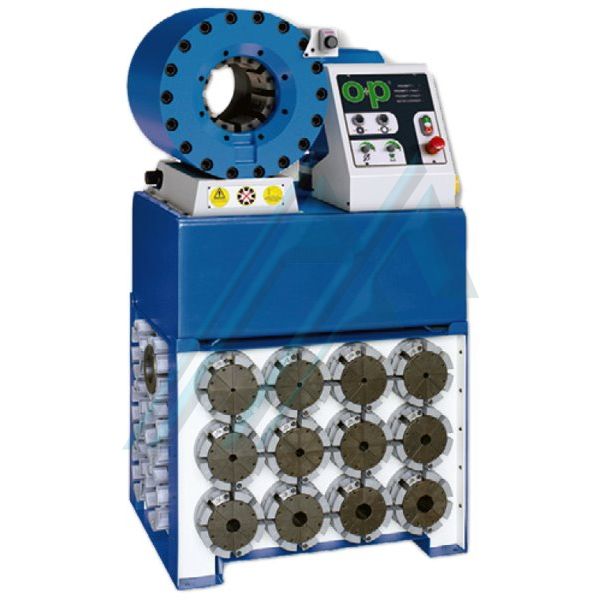

MAIN FEATURES:
- Ideal for pressing all types of fittings.
- Electronic control for the management of the new electromechanical panel.
- LED to indicate any anomalies in the system.
- Regulation of the reopening after pressing.
- Pressing time adjustment.
* Jaws and other accessories are sold separately.
TECHNICAL FEATURES:
PRESSING FORCE | 315 TONS (345 US TONS) |
6 SPIRALS | 2" |
INDUSTRIAL PIPE | 3" |
MAXIMUM PRESSING Ø | 120 MM (4.724") WITH SPECIAL JAWS |
PRESSING HOURS | 865 |
CLAMPING JAWS OPENING | Ø + 43 MM (Ø + 1.693") |
90° ROUNDS | 2" |
STANDARD VOLTAGE | 375V-420V 50HZ 3PH |
MOTOR POWER | 5.5 KW (7.5 Hp) A=10.64 |
DIMENSIONS W x D x H | 820x660x820 mm (32.283 "x25.984 "x32.283") |
WEIGHT WITHOUT OIL | 470 KG (1036 LBS) |
OIL | 110 LITERS |
ACCESSORIES | |
ELECTROMECHANICAL CONTROL WITH ELECTRONIC CARD | Including |
REGULATION VERNIER | Including |

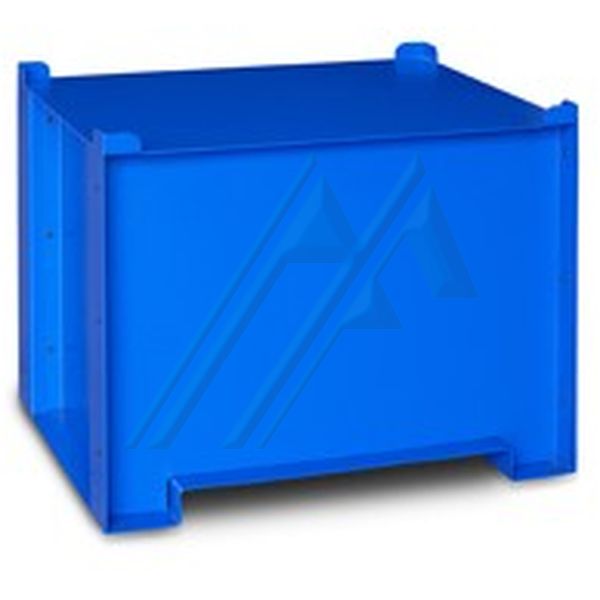

BASE | Optional |
QUICK CHANGE BREVETTATA | Optional |
FURNITURE | Optional |

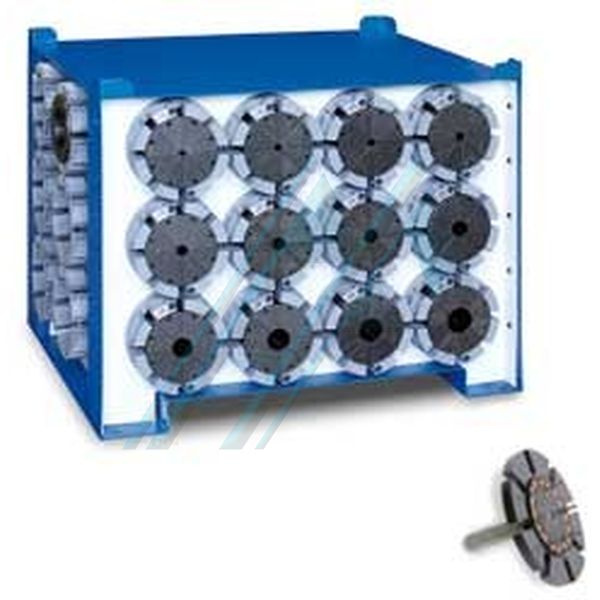

CABINET + CLAMP DISPENSER | Optional |
ELECTRIC PEDAL | Optional |

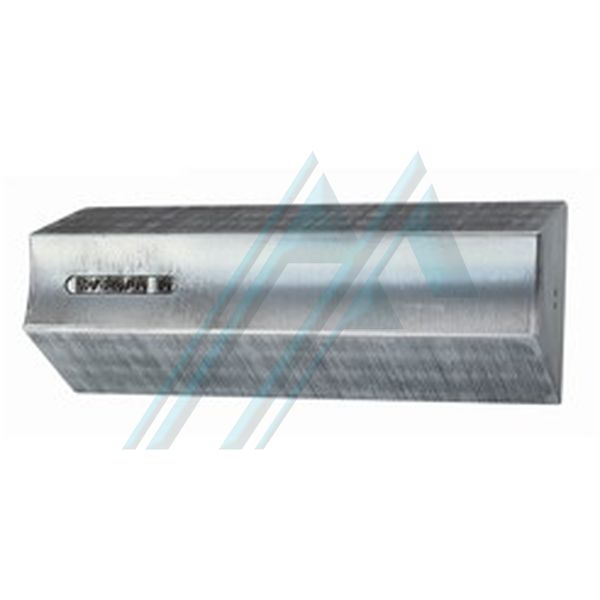

JAMMERS | Optional |
SPECIAL CLAMPS | Optional |

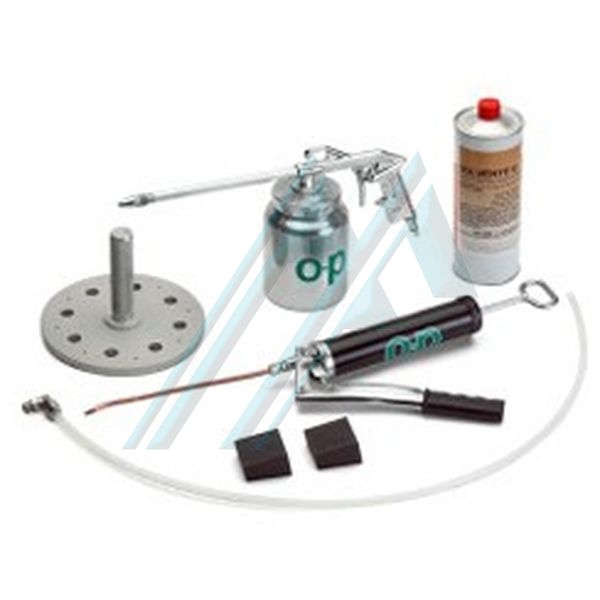

CLEANING AND MAINTENANCE KIT | Optional |
SPECIAL VOLTAGE | Optional |
MIRROR | Optional |
You can make your inquiries about this product at info@hidraflex.com
219,50 €
266,00 €
519,00 €
1 473,56 €
664,00 €
559,05 €
