Adapter male JIC thread 1"5/8 to male thread 1"7/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
25,88 €
Adapter male JIC thread 1"5/8 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
18,17 €
Adapter male JIC thread 1"5/8 to male thread 1"5/16 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
23,08 €
Adapter male JIC thread 1"5/16 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
52,17 €
90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €

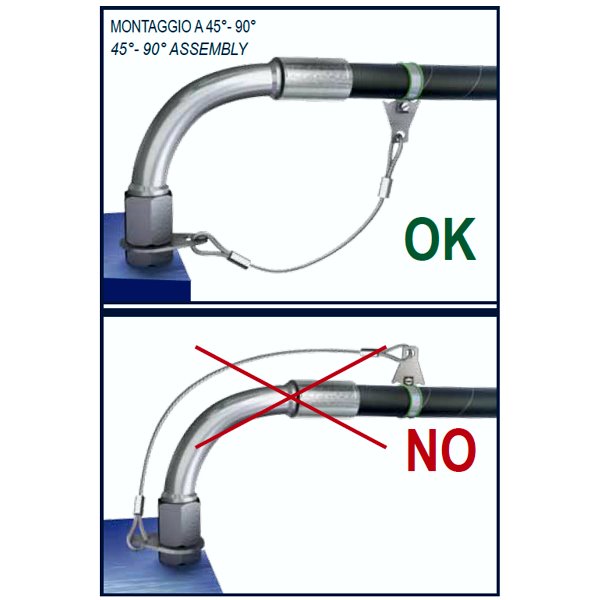

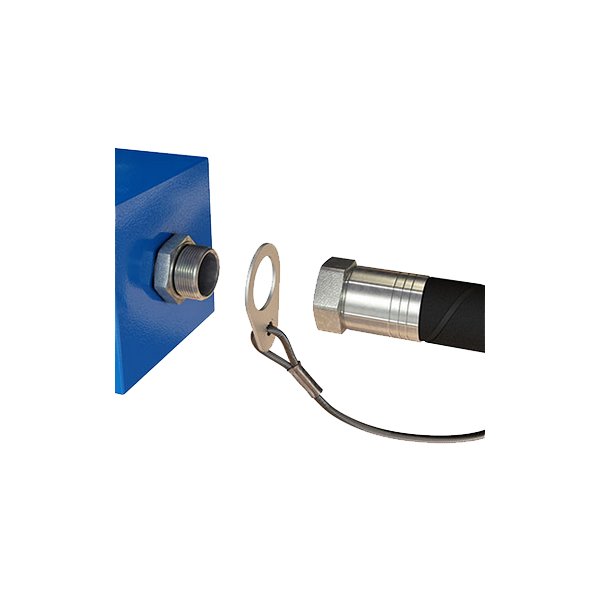

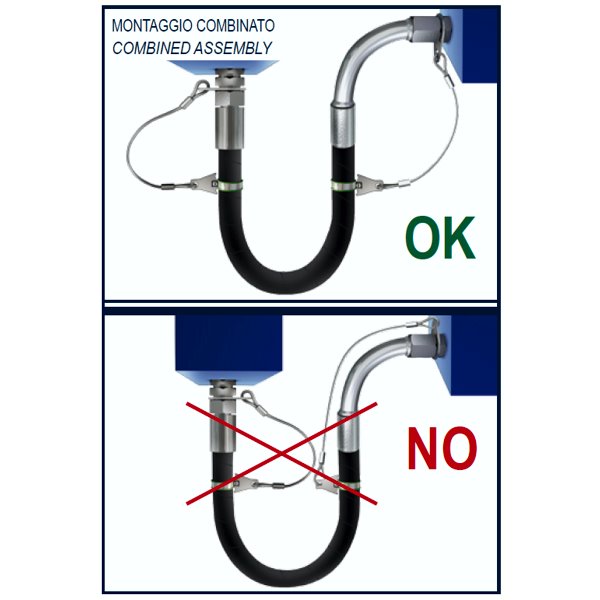

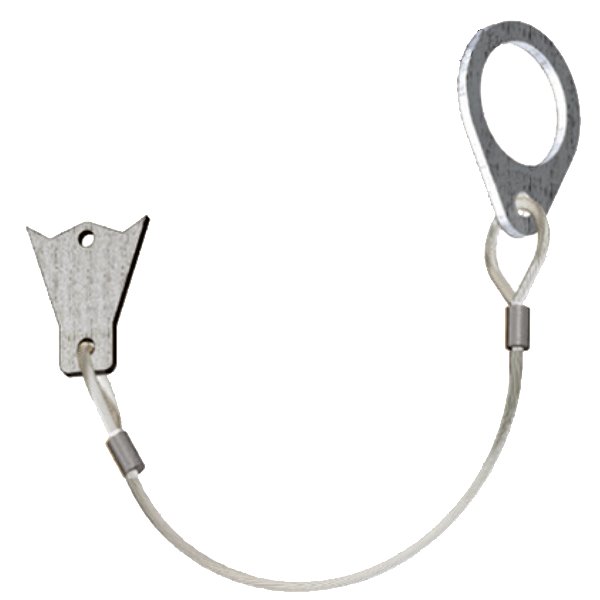

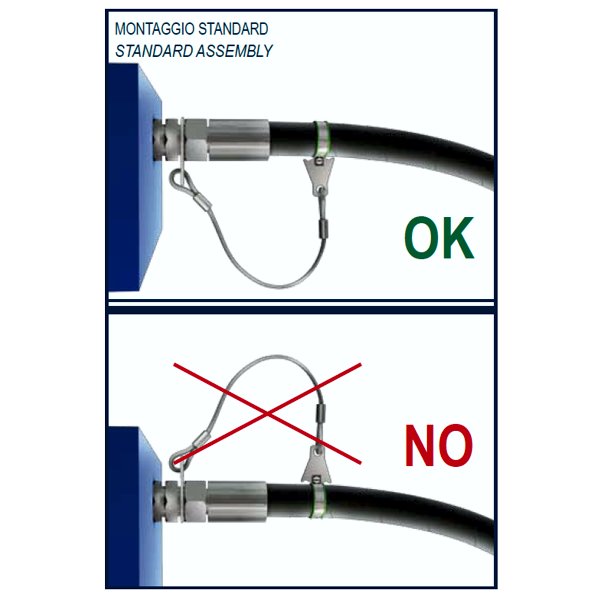

The Stopflex retention system is designed to stop the disconnected hose from running and prevent the force unleashed inside from triggering the dreaded "whip effect".

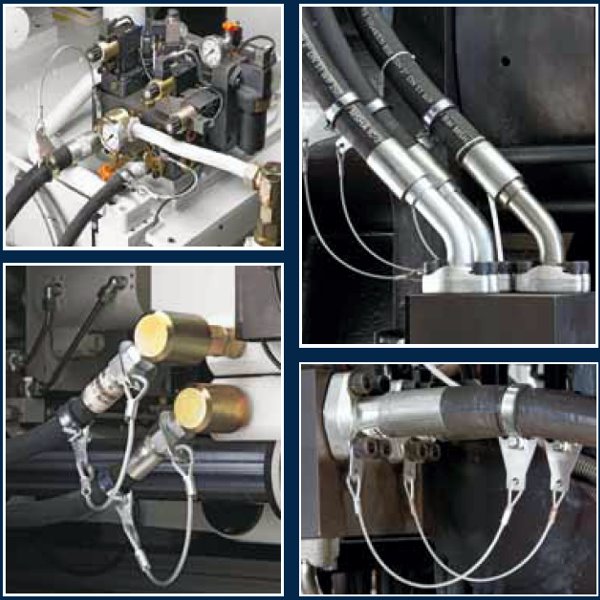

Thanks to Stopflex, the hose is anchored by a cable, thus guaranteeing total protection for operators and components.

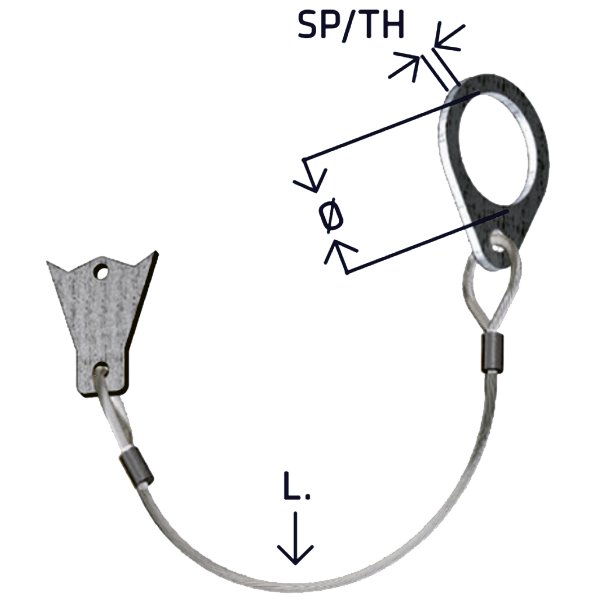

REFERENCE Reference | ø M | ø mm ø inches | SP./TH mm inches | LENGTH mm inches | MAX. PRESSURE OF WORK Max. working pressure bar - psi |
STOPFUDIN145 | 6 | 14.5 0.571 | two 0.079 | 300 11,811 | 450 6525 |
STOPFUDIN17 | 6 | 17 0.669 | two 0.079 | 300 11,811 | 445 6453 |
STOPFUDIN185 | 6 | 18.5 0.728 | two 0.079 | 300 11,811 | 420 6090 |
STOPFUDIN205 | 6 | 20.5 0.807 | two 0.079 | 300 11,811 | 420 6090 |
STOPFUDIN225 | 6 | 22.5 0.886 | two 0.079 | 300 11,811 | 420 6090 |
STOPFUDIN245 | 6 | 24.5 0.965 | two 0.079 | 300 11,811 | 420 6090 |
STOPFUDIN265 | 6 | 26.5 1,043 | two 0.079 | 300 11,811 | 420 6090 |
STOPFUDIN305 | 6 | 30.5 1,201 | 2.5 0.098 | 300 11,811 | 420 6090 |
STOPFUDIN34 | 6 | 3. 4 1,339 | 2.5 0.098 | 450 11,811 | 420 6090 |
STOPFUDIN365 | 6 | 36.5 1,437 | 2.5 0.098 | 450 17,717 | 420 6090 |
STOPFUDIN425 | 6 | 42.5 1,673 | 2.5 0.098 | 450 17,717 | 420 6090 |
STOPFUDIN455 | 6 | 45.5 1,791 | 2.5 0.098 | 450 17,717 | 420 6090 |
STOPFUDIN49 | 6 | 49 1,929 | 2.5 0.098 | 450 17,717 | 420 6090 |
STOPFUDIN525 | 6 | 52.5 2,067 | 2.5 0.098 | 450 17,717 | 385 5583 |
STOPFUDIN60 | 6 | 60 2,362 | 2.5 0.098 | 450 17,717 | 350 5075 |
3,30 €
10,58 €
13,70 €
17,40 €
8,90 €
17,40 €
