Electrically actuated compact sealed HAWE solenoid valve without drain for mounting on sub-bases.
Availability : En stock, normalmente enviado en un día laboral
VZP1G22G24
Boquilla de engrase con un mango de sujeccion 1/8"
- Enchufe rápido para engrasadores hidráulicos.- Presión de servicio 250 Bar.- Rosca hembra 1/8".- Doble mango de sujeción. - Presionar la manilla para fijar.- Tamaño: 9 x 5 cm.- Material acero.
14,40 €
16,35 €
16,60 €
30,75 €
13,90 €
21,09 €
12,45 €
21,64 €

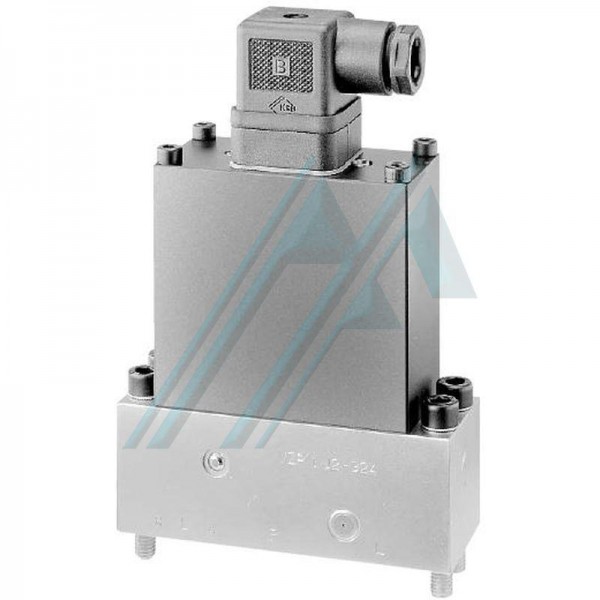

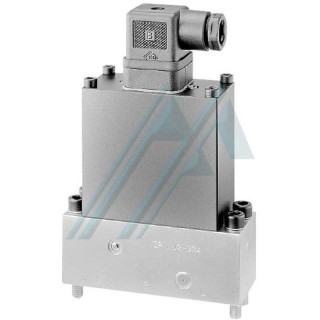

Electrically actuated compact sealed HAWE solenoid valve without drain for mounting on sub-bases.
Availability : En stock, normalmente enviado en un día laboral
VZP1G22G24
VZP poppet solenoid valves allow control of direction (forward / stop / reverse) of double and single acting cylinders in oil hydraulic systems.
These valves have been designed for mounting on plates.
Its compact design allows the creation of very compact solenoid valve blocks and thus hydraulic circuits.
Working pressure P max : 450 bar
Flow rate Q max : 16 l / min
4/3 (4/4) seat solenoid valve, single version
