Electroválvula para aire comprimido 5 vías 3 posiciones
S9581-RFE
390,63 €
- Motor-pump coupling.- Maximum Shaft Diameter 25 mm.- Type Star 75 X 16.- Inside Diameter Star 31 mm.- Mounts star A75/16.- Maximum Torque 16,8 kgm.- Maximum Revolutions. 7000.- Weight Kgs 0,9.
76,44 €
MW 5/3 c/c 1/4" 90° lever valve
80,82 €
Valve3/2 normally closed thread1/8"
78,75 €
MW pneumatic cylinder ø 80 C-250 D/E
302,10 €
Inline flow divider tq 33-A 3 HAWE
- Online flow divider. - Flow rate 45 l/min. - 1/2" female thread. - Carbon steel material.
432,25 €
- With decompression. - D 5116 (02-2016-1.1). - Mounting on base plate not included. - Service pressure pmax: 500 bar. - Control flow Qmax: 2 l/min.
437,20 €
Male conical fitting 1/4 "pipe Ø 4 x 6
Nickel-plated brass quick connector. Swivel Tapered BSP Male Threads. Tube diameter: 4 x 6. 1/4 "thread.
2,20 €

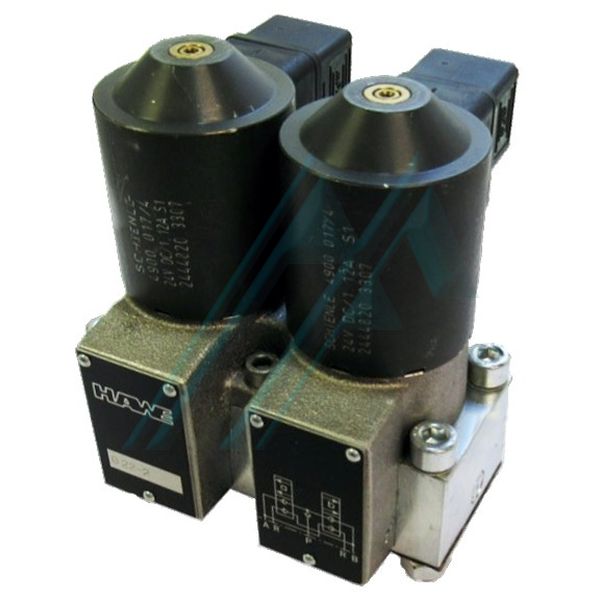

PROPERTIES AND ADVANTAGES:
- Valve construction with sealed ball seat and without drainage with high switching safety.
- Electromagnetic actuation, actuated by pressure, mechanical or manual.
- Low switching forces and smooth, jerk-free switching.
- Operating pressures up to 700 bar.
AREAS OF APPLICATION:
- Machine tools (with tension and without tension).
- Clamping elements, punching tools, devices.
- Rubber and plastic machines.
- Oil hydraulic systems and pneumatic systems.

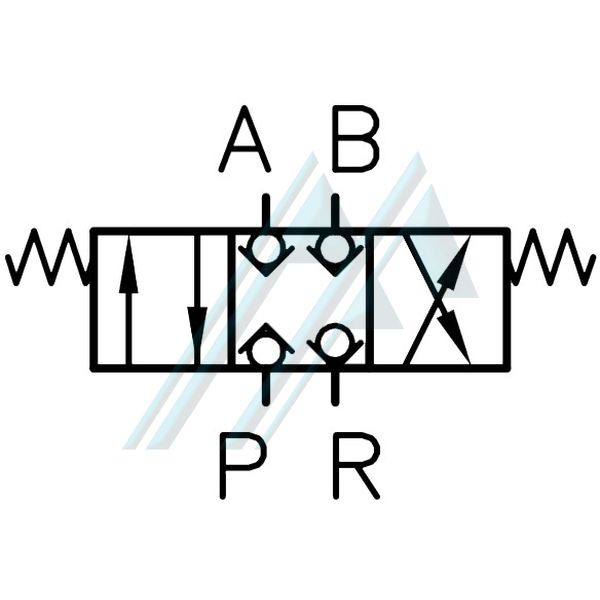

Size | Q max. l / min | P max. Pub. Electromagnetic | Connections P, R and A, B |
2 | 25 | 700 | G 3/8 and G 1/2 |
