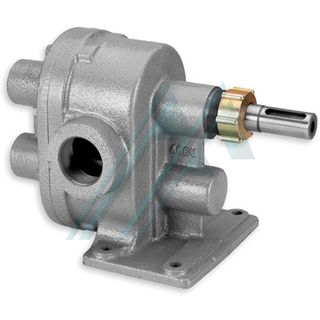

Gear pumps of Type "A" sets are compact body formed by a melt containing a set of rotating gears, and connecting two mouths. On operating the drive shaft, the pump draws a liquid mouth and pushes the other, with pressure and directly proportional to the power and resulting flow speed respectively applied.
Availability : In stock, usually dispatched in one working day
| Nº | Rosca | Eje | Viscosidad o Engler | Caudal sin presión L/min R.P.M. | ||||||||
| EØ | F | 20 | 50 | 100 | 150 | 200 | 250 | 350 | 500 | 800 | ||
| 00 | ¼” | 12 | 30 | 800 | 800 | 650 | 415 | 325 | 1.8 | 2.5 | 3.6 | 5.6 |
| 0 | ¼” | 13 | 34 | 800 | 800 | 650 | 415 | 325 | 3.5 | 5 | 7 | 10 |
| 1 | 3/8” | 14 | 30 | 800 | 800 | 600 | 380 | 300 | 5 | 7 | 10 | 15 |
| 2 | ½” | 16 | 30 | 800 | 800 | 500 | 320 | 250 | 8 | 11 | 16 | 24 |
| 3 | ¾” | 19 | 45 | 800 | 635 | 400 | 250 | 200 | 15 | 21 | 30 | 48 |
| 4 | 1” | 19 | 50 | 800 | 635 | 400 | 250 | 200 | 22 | 32 | 45 | 72 |
| 5 | 1 ¼” | 21 | 50 | 500 | 500 | 350 | 225 | 175 | 34 | 49 | 68 | 110 |
| 10E | 1”- 1 ¼” | 21 | 50 | 500 | 300 | 200 | 130 | 100 | 48 | 67 | 96 | - |
| 11E | 1”- 1 ¼” | 25 | 55 | 500 | 300 | 200 | 130 | 100 | 65 | 90 | 130 | - |
| 6-12 | 1 ½” | 25 | 65 | 500 | 400 | 250 | 160 | 125 | 75 | 105 | 150 | - |
| 7 | 2 ½” | 25 | 65 | 500 | 400 | 250 | 160 | 125 | 84 | 117 | 168 | - |
| 10 | 3” | 30 | 65 | 500 | 300 | 200 | 130 | 100 | 185 | 260 | 370 | - |
| 14 | 4” | 40 | 70 | 500 | 300 | 200 | 130 | 100 | 315 | 435 | 625 | - |
