Adapter male JIC thread 1"5/8 to male thread 1"7/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
25,88 €
Adapter male JIC thread 1"5/8 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
18,17 €
Adapter male JIC thread 1"5/8 to male thread 1"5/16 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
23,08 €
Adapter male JIC thread 1"5/16 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
52,17 €
90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €

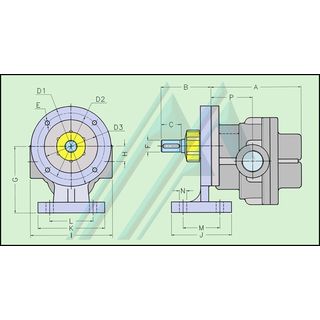

A | B | C | D1 | D2 | D3 | E | F | G | H | I | J | K | L | M | N | P | |
FM0S | 100 | 62 | 19 | 120 | 100 | 80 | M-6 | 14 | 105 | 17 | 98 | 95 | 100 | 70 | 55 | 11 | 28 |
FM1S | 115 | 66 | 22 | 120 | 100 | 80 | M-6 | 14 | 105 | 17 | 104 | 95 | 100 | 70 | 55 | 11 | 40 |
FM2S | 135 | 76 | 30 | 120 | 100 | 80 | M-6 | 18 | 105 | 23 | 106 | 95 | 100 | 70 | 55 | 11 | 61,5 |
FM3S | 170 | 87 | 31 | 160 | 130 | 110 | M-8 | 22 | 160 | 27,5 | 142 | 110 | 140 | 103 | 70 | 13 | 72,5 |
FM4S | 200 | 87 | 31 | 160 | 130 | 110 | M-8 | 22 | 160 | 27,5 | 142 | 110 | 140 | 103 | 70 | 13 | 91 |
FM5S | 255 | 97 | 35 | 160 | 130 | 110 | M-8 | 28 | 160 | 42 | 158 | 110 | 140 | 103 | 70 | 13 | 120 |
FM6S | 285 | 97 | 35 | 160 | 130 | 110 | M-8 | 28 | 160 | 36 | 158 | 110 | 140 | 103 | 70 | 13 | 123 |
