DESCRIPTION
- Easy operation, connection-disconnection with one-hand operation, small size and great robustness. Availability in step-free. Patented system.
APPLICATIONS
For applications pneumatic in general. Corrosion-resistant due to the surface treatment.
FEATURES
- Recommended operating pressure: 0 - 12 bar.
- Maximum working pressure: 35 bar.
- Working temperature:
From -10º to +95ºC, with NBR seals.
Of -15º to +200ºC, with standard FKM seals.
Of -40º to +95ºC, with EPDM seals.
Of -60º to +200ºC, with gaskets VMQ.

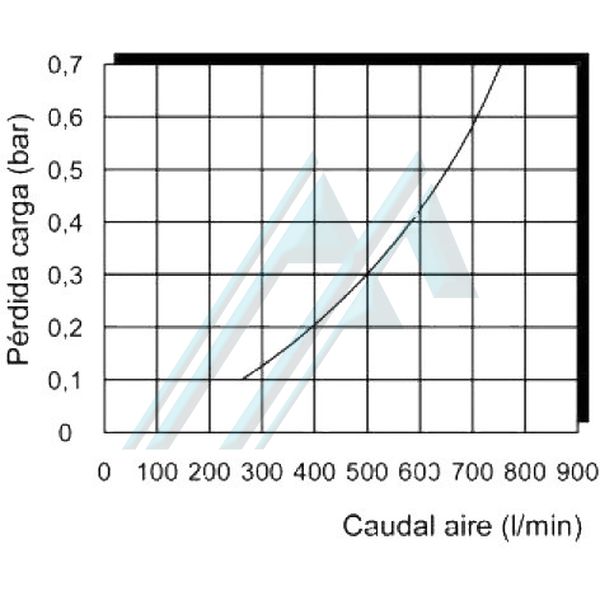

- Flow capacity: 636 l/min. Measurement is performed in a plug CD-25 with acoplamento ACD-25M, at a pressure of 6 bar, pressure loss of 0,5 bar.

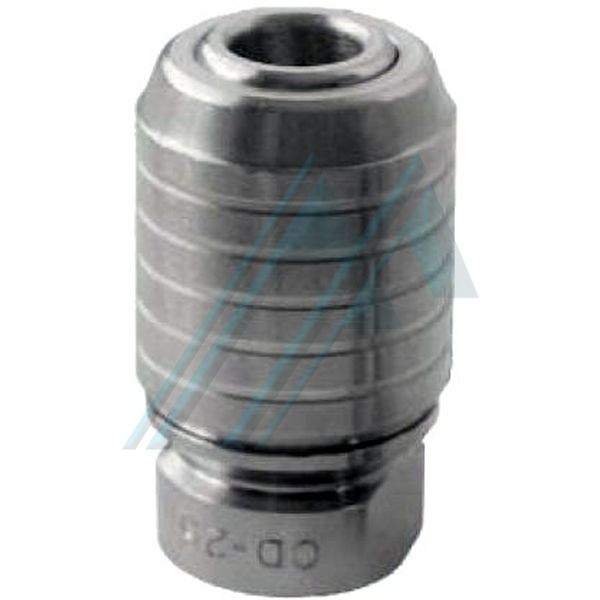

CD-25 | |
BODY | Nickel-plated steel |
CUFF | Nickel-plated steel |
VALVE | Stainless steel AISI 303 |
WASHER | Stainless steel AISI 304 |
CLAWS | Stainless steel AISI 303 |
GASKET | NBR, FKM, EPDEM : VMQ |
SPRINGS | Steel stainless AISI 302 |
CLIP | Stainless steel AISI 301 |
