DESCRIPTION
- Easy operation, connection-disconnection with one-hand operation, small size and great robustness. Availability in step-free. Patented system.
APPLICATIONS
For applications pneumatic in general. Corrosion-resistant due to the surface treatment.
FEATURES
- Recommended operating pressure: 0 - 12 bar.
- Maximum working pressure: 35 bar.
- Working temperature:
From -10º to +95ºC, with NBR seals.
Of -15º to +200ºC, with standard FKM seals.
Of -40º to +95ºC, with EPDM seals.
Of -60º to +200ºC, with gaskets VMQ.

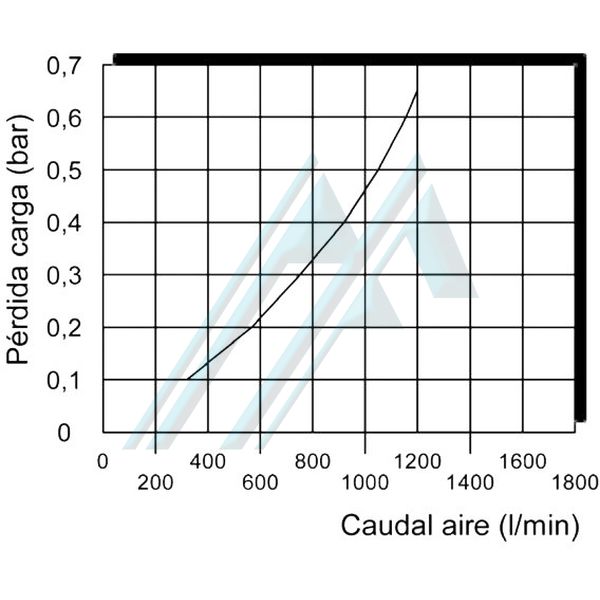

- Flow rate: 1.050 l/min. Measurement is performed in a plug CD-50 with acoplamento ACD-50M, at a pressure of 6 bar, pressure loss of 0,5 bar.
| CD-50 | |
| BODY | Nickel-plated steel |
| CUFF | Nickel-plated steel |
|
VALVE |
Stainless steel AISI 303 |
| WASHER | Stainless steel AISI 304 |
| CLAWS | Stainless steel AISI 303 |
| GASKET | NBR, FKM, EPDEM or VMQ |
| SPRINGS | Steel stainless AISI 302 |
| CLIP | Stainless steel AISI 301 |
