90° elbow threaded nut M-52X150 to hydraulic pipe Ø 42 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 42 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
51,29 €
90° elbow threaded nut M-52X150 to hydraulic pipe Ø 38 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 38 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
122,42 €
90° elbow threaded nut M-45X200 to hydraulic pipe Ø 35 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-45X200.- For hydraulic pipe Ø 35 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
37,50 €
Single-acting pneumatic cylinder with piston diameter 25 mm
- Single-acting pneumatic cylinder. - Front spring. - Piston diameter Ø 25 mm. - Stroke 50 mm. - Material of the stem and sleeve stainless steel. - Working temperature 0ºC to +80ºC. - Working pressure from 1 Bar to 10 Bar.
75,45 €
- PVDA-LAN pressure reducing cartridge valve
- Mounting in T-21A cavity. - Pilot operated. - Adjustment using allen screw. - Adjustment from 7 to 210 Bar. - Nitrile gasket material.
287,86 €
Pressure regulating valve for threading in block Hawe CDK 3 51
- Pressure regulator valve for threading into a block. - Block not included. - Flow rate 12 l/min. - Pressure regulation from 15 to 165 BAR. - Adjustable with tool.
226,00 €
Flexible 1/4" double textile braid tubing
SELLING PRICE PER METER: 1 UNIT = 1 METER
4,63 €
Flexible tubing 3/16" double textile braid
SELLING PRICE PER METER: 1 UNIT = 1 METER
5,96 €

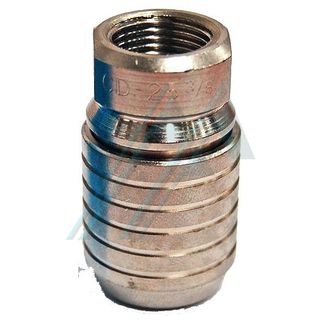

DESCRIPTION
- Easy operation, connection-disconnection with one-hand operation, small size and great robustness. Availability in step-free. Patented system.
APPLICATIONS
For applications pneumatic in general. Corrosion-resistant due to the surface treatment.
FEATURES
- Recommended operating pressure: 0 - 12 bar.
- Maximum working pressure: 35 bar.
- Working temperature:
From -10º to +95ºC, with NBR seals.
Of -15º to +200ºC, with standard FKM seals.
Of -40º to +95ºC, with EPDM seals.
Of -60º to +200ºC, with gaskets VMQ.

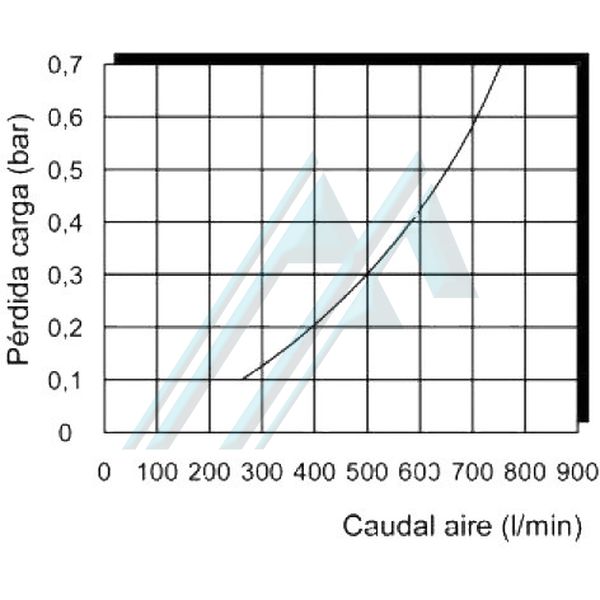

- Flow capacity: 636 l/min. Measurement is performed in a plug CD-25 with acoplamento ACD-25M, at a pressure of 6 bar, pressure loss of 0,5 bar.

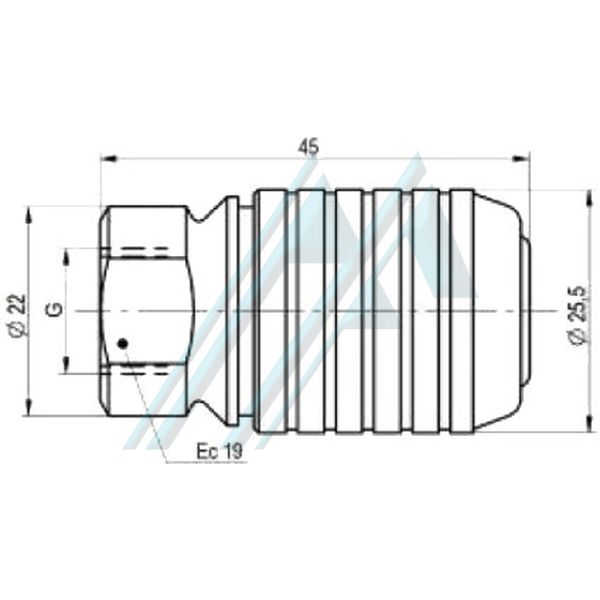

CD-25 | |
BODY | Nickel-plated steel |
CUFF | Nickel-plated steel |
VALVE | Stainless steel AISI 303 |
WASHER | Stainless steel AISI 304 |
CLAWS | Stainless steel AISI 303 |
GASKET | NBR, FKM, EPDEM : VMQ |
SPRINGS | Steel stainless AISI 302 |
CLIP | Stainless steel AISI 301 |
