188,42 €
Availability : En stock, normalmente enviado en un día laboral

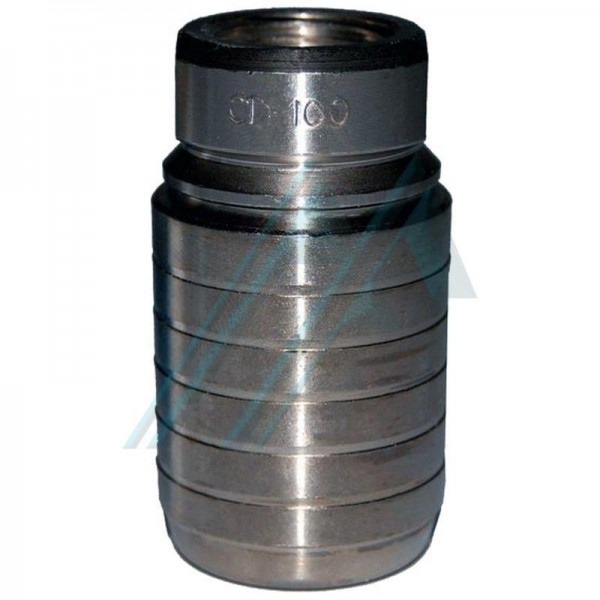

CD100
Applications:
CD-100: For pneumatic applications in general. Corrosion resistant due to surface treatment.
Recommendations:
- Use original IMOPAC® couplings made of treated steel, brass or stainless steel for proper functioning of the connection.
Work temperature:
- From -10 ºC to +95 ºC, with NBR gaskets.
- From -15 ºC to +200 ºC, with FKM joints.
- From -40 ºC to +95 ºC, with EPDM gaskets.
- From -60 ºC to +200 ºC, with VMQ gaskets.
- Flow rate: 1,900 l / min.
Measurement carried out on a CD-100 plug with ACD-100M coupling, at a pressure of 6 bar and a pressure drop of 0.5 bar.
