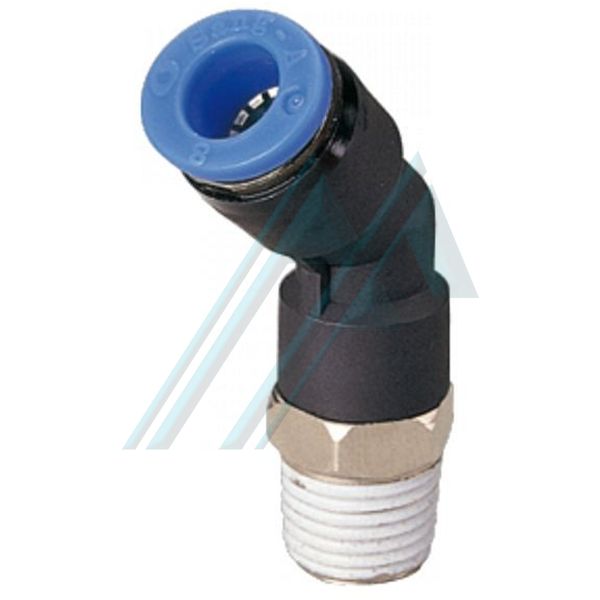

Push-in fitting PL45 conical thread

CHARACTERISTICS:

- Lightweight and high strength body: tenopolymer composite with fiberglass.

- More compact: reduction in size but without restriction of passage or decrease in effective flow.

- Maximum working pressure: 20 bar.

- Temperature: from -20 ° C to + 80 ° C.

- Free of silicones and oils in the assembly.

- Meets ROHS regulations on environmental protection.

- Rock parts: nickel-plated brass.

- Great ease of connection: clamping system.

- Easy disconnection: Exclusive button.

- Tefloned on the conical male rocks.

- Joint cylindrical thread OR - NBR.

- Adjustable L and T threaded models.

- Main applications: Compressed air-vacuum.

- Stainless steel multi-grip pliers: Optimum clamping to the tube.

- Exclusive internal collar with maximum tube-fitting sealing.

- Vacuum pressure: -750 mm Hg.
