PACK KYLE COMPOSED BY THE FOLLOWING ITEMS:
DESCRIPTION | GAUGE | Ø HOSE | THREAD | UNITS / METERS |
Press TUBOMATIC H47 PM (max. Ø 46 mm) with pump on stand |
|
|
| 1 pc. |
Clamp Ø 16 TUBOMATIC H47 PM |
|
|
| 1 pc. |
Clamp Ø 22 TUBOMATIC H47 PM |
|
|
| 1 pc. |
Clamp Ø 25 TUBOMATIC H47 PM |
|
|
| 1 pc. |

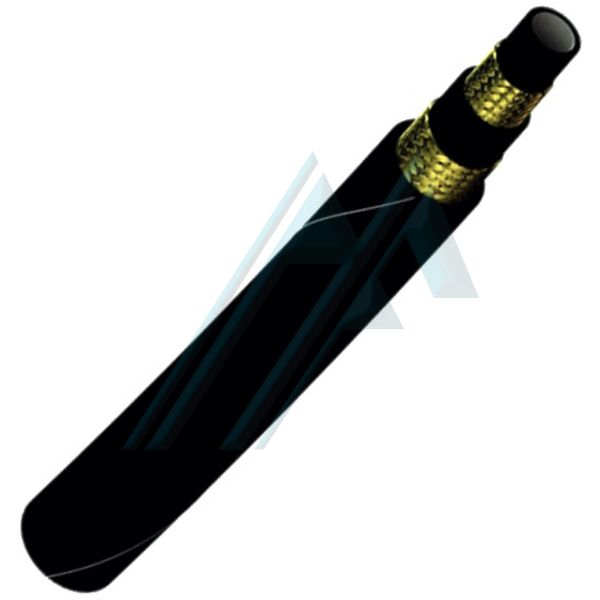

Flexible pipe 1/4" DIN en 857 2SC |
|
|
| 20 m. |
Flexible tubing 3/8" DIN en 857 2SC |
|
|
| 20 m. |
Flexible pipe 1/2" DIN en 857 2SC |
|
|
| 20 m. |

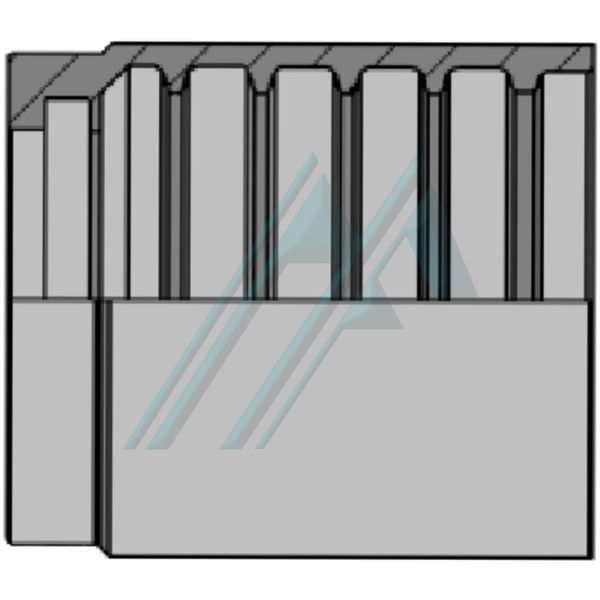

Cap is not peeled R1AT /R2AT / R16 / 1SN /2S | 4 | 6.3 mm |
| 25 pcs. |
Cap is not peeled R1AT /R2AT / R16 / 1SN /2S | 6 | 9.5 mm |
| 25 pcs. |
Cap is not peeled R1AT /R2AT / R16 / 1SN /2S | 8 | 12.7 mm |
| 25 pcs. |
Male connector BSP 1/4" R1 - R2 - R7 - R8 - 4SP G-4 | 4 | 1/4" | 1/4" - 19 | 2 pcs. |
Male connector BSP 3/8" R1 - R2 - R7 - R8 - 4SP G-4 | 4 | 1/4" | 3/8" - 19 | 2 pcs. |
Male connector BSP 1/4" R1 - R2 - R7 - R8 - 4SP G-6 | 6 | 3/8" | 1/4" - 19 | 2 pcs. |
Male connector BSP 3/8" R1 - R2 - R7 - R8 - 4SP G-6 | 6 | 3/8" | 3/8" - 19 | 2 pcs. |
Male connector BSP 1/2" R1 - R2 - R7 - R8 - 4SP G-8 | 8 | 1/2" | 1/2" - 14 | 2 pcs. |
Male connector BSP 3/4" R1 - R2 - R7 - R8 - 4SP G-8 | 8 | 1/2" | 3/4" - 14 | 2 pcs. |

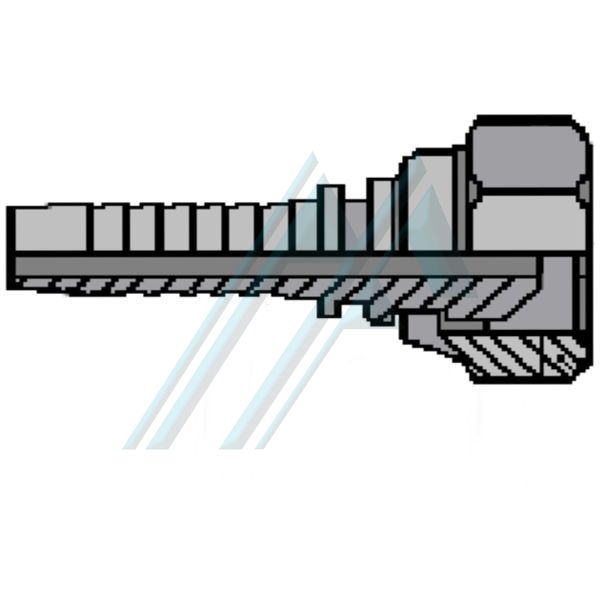

Fitting female swivel BSP 1/4" BSP R1 - R2 - R7 - R8 G-4 | 4 | 1/4" | 1/4" - 19 | 2 pcs. |
Fitting female swivel BSP 3/8" BSP R1 - R2 - R7 - R8 G-4 | 4 | 1/4" | 3/8" - 19 | 2 pcs. |
Fitting female swivel BSP 3/8" BSP R1 - R2 - R7 - R8 G-6 | 6 | 3/8" | 3/8" - 19 | 2 pcs. |
Fitting female swivel BSP 1/2" BSP R1 - R2 - R7 - R8 G-6 | 6 | 3/8" | 1/2" - 14 | 2 pcs. |
Fitting female swivel BSP 1/2" BSP R1 - R2 - R7 - R8 G-8 | 8 | 1/2" | 1/2" - 14 | 2 pcs. |
Fitting female swivel BSP 3/4" BSP R1 - R2 - R7 - R8 G-8 | 8 | 1/2" | 3/4" - 14 | 2 pcs. |

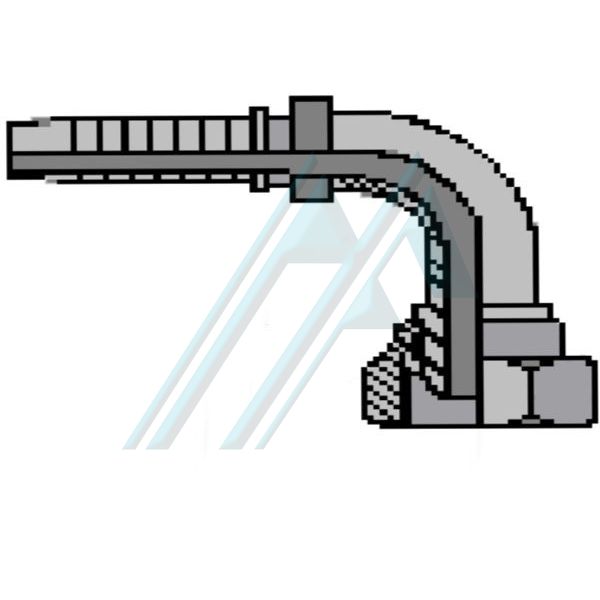

Fitting 90° female swivel BSP 1/4" G - 4 | 4 | 1/4" | 1/4" - 19 | 2 pc. |
Fitting 90° female swivel BSP 3/8" G - 4 | 4 | 1/4" | 3/8" - 19 | 2 pcs. |
Fitting 90° female swivel BSP 3/8" G - 6 | 6 | 3/8" | 3/8" - 19 | 2 pcs. |
Fitting 90° female swivel BSP 1/2" G - 6 | 6 | 3/8" | 1/2" - 14 | 2 pcs. |
Fitting 90° female swivel BSP 1/2" G - 8 | 8 | 1/2" | 1/2" - 14 | 2 pcs. |

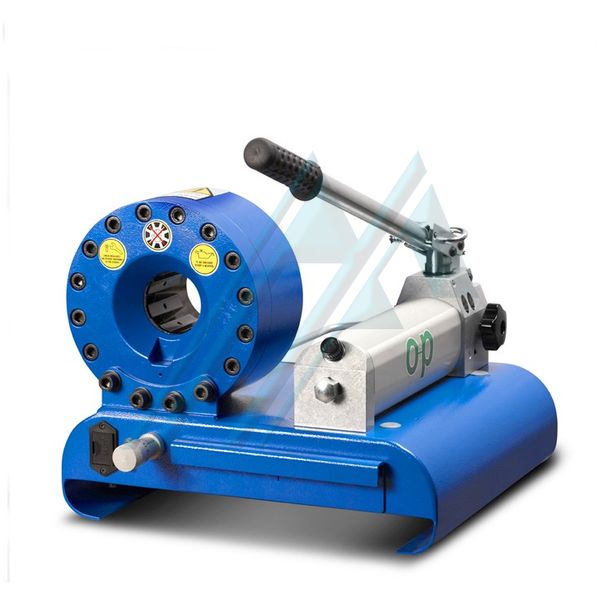

The press TUBOMATIC H47PM is the ideal machine for splicing hydraulic hoses flexible up to 1" with 2 braids.
Versatile and easy to transport, it is a perfect machine for on-site assistance.
Not suitable for cable glands one-piece.
MAIN FEATURE:
- Manual pump.
- Light to indicate the diameter of the pressing.
- Useful to change the calipers.
* The clamping jaws and other accessories are sold separately.
TECHNICAL FEATURES:
PRESSING FORCE | 100 TONELADAS(110 US TONS) |
CAPACITY | 1" 2 SP |
Ø MAXIMUM | 46 MM (1.811") WITH CLAMPS SPECIAL |
NUMBER OF CRIMPING/HOUR | 930 |
OPENING OF JAWS | Ø + 20 mm (Ø + 0.788") |
FITTINGS 90° | 3/8" |
DIMENSIONS w x d x H | 390x510x300 mm (15.354"x20.078"x11.811") |
WEIGHT | 32 KG (71 LBS) |
ACCESSORIES | |
CYLINDER SIMPLE EFFECT | Included |
OIL | Included |
DRAWER HOLDER CLAMPS | Included |
JAWS | Including Ø indicated |
JAWS SPECIAL | Optional |
UTIL-CHANGE JAWS | Optional |
