PACK STAN COMPOSED BY THE FOLLOWING ITEMS:
|
DESCRIPTION |
GAUGE |
Ø HOSE |
THREAD |
UNITS / METERS |
|
Press TUBOMATIC TUB040EL (max. Ø 58 mm) |
|
|
|
1 pc. |
|

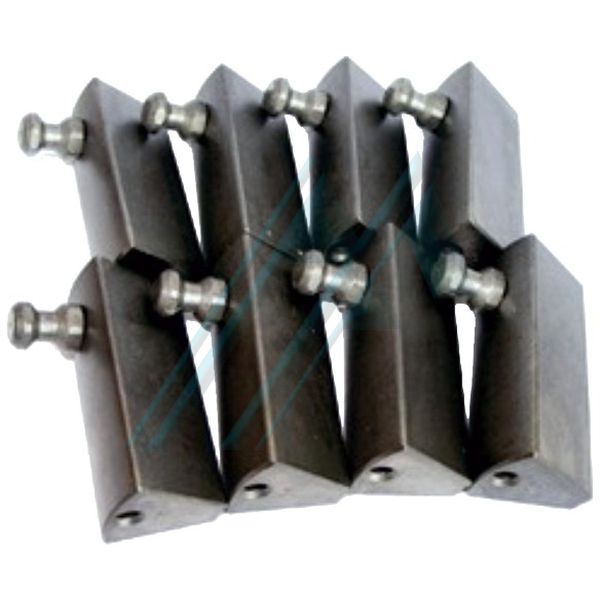

Clamp Ø 16 TUBOMATIC 040 EL |
|
|
|
1 pc. |
|
Clamp Ø 22 TUBOMATIC 040 EL |
|
|
|
1 pc. |
|
Clamp Ø 25 TUBOMATIC 040 EL |
|
|
|
1 pc. |
|

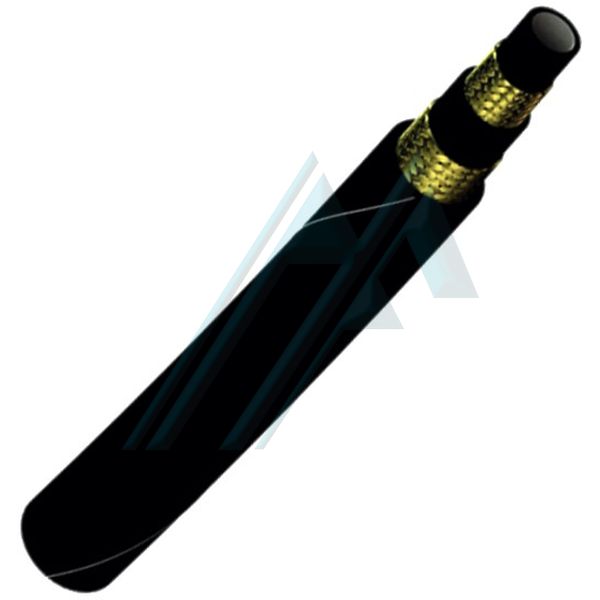

Flexible pipe 1/4" DIN en 857 2SC |
|
|
|
20 m. |
|
Flexible tubing 3/8" DIN en 857 2SC |
|
|
|
20 m. |
|
Flexible pipe 1/2" DIN en 857 2SC |
|
|
|
20 m. |
|

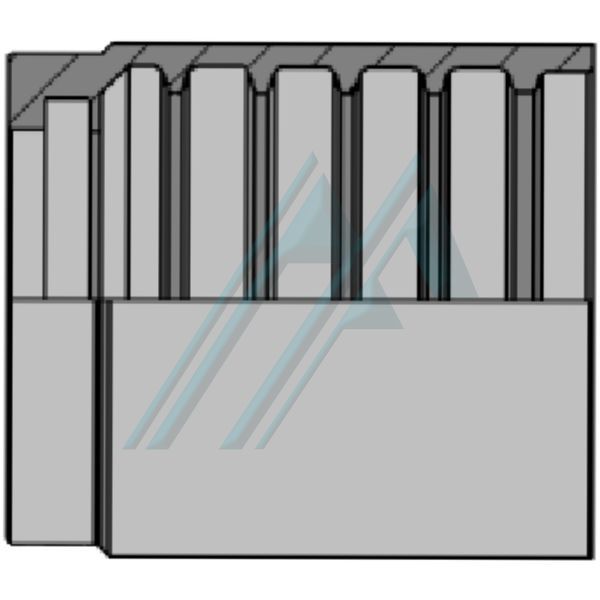

Cap is not peeled R1AT /R2AT / R16 / 1SN /2S |
4 |
6.3 mm |
|
25 pcs. |
|
Cap is not peeled R1AT /R2AT / R16 / 1SN /2S |
6 |
9.5 mm |
|
25 pcs. |
|
Cap is not peeled R1AT /R2AT / R16 / 1SN /2S |
8 |
12.7 mm |
|
25 pcs. |
|

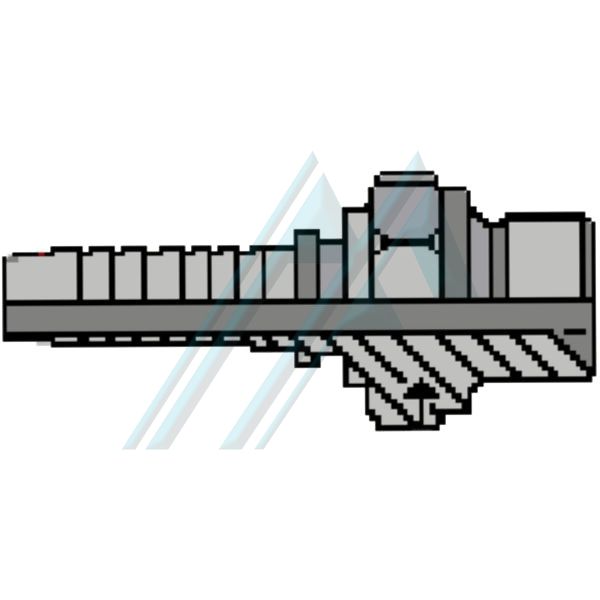

Male connector BSP 1/4" R1 - R2 - R7 - R8 - 4SP G-4 |
4 |
1/4" |
1/4" - 19 |
2 pcs. |
|
Male connector BSP 3/8" R1 - R2 - R7 - R8 - 4SP G-4 |
4 |
1/4" |
3/8" - 19 |
2 pcs. |
|
Male connector BSP 1/4" R1 - R2 - R7 - R8 - 4SP G-6 |
6 |
3/8" |
1/4" - 19 |
2 pcs. |
|
Male connector BSP 3/8" R1 - R2 - R7 - R8 - 4SP G-6 |
6 |
3/8" |
3/8" - 19 |
2 pcs. |
|
Male connector BSP 1/2" R1 - R2 - R7 - R8 - 4SP G-8 |
8 |
1/2" |
1/2" - 14 |
2 pcs. |
|
Male connector BSP 3/4" R1 - R2 - R7 - R8 - 4SP G-8 |
8 |
1/2" |
3/4" - 14 |
2 pcs. |
|

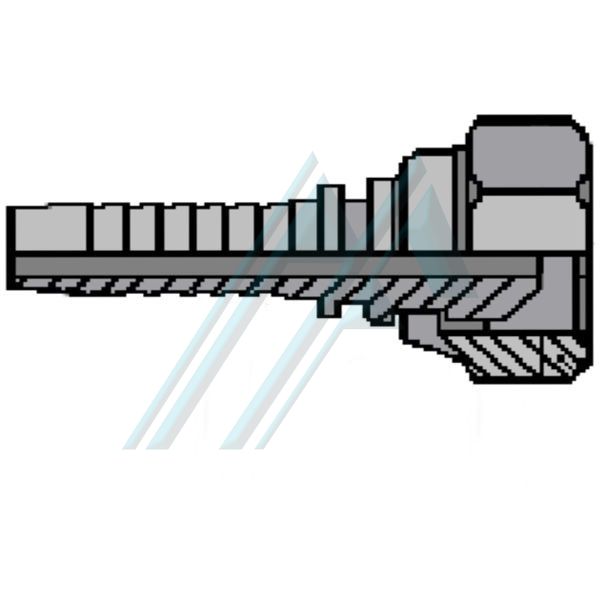

Fitting female swivel BSP 1/4" BSP R1 - R2 - R7 - R8 G-4 |
4 |
1/4" |
1/4" - 19 |
2 pcs. |
|
Fitting female swivel BSP 3/8" BSP R1 - R2 - R7 - R8 G-4 |
4 |
1/4" |
3/8" - 19 |
2 pcs. |
|
Fitting female swivel BSP 3/8" BSP R1 - R2 - R7 - R8 G-6 |
6 |
3/8" |
3/8" - 19 |
2 pcs. |
|
Fitting female swivel BSP 1/2" BSP R1 - R2 - R7 - R8 G-6 |
6 |
3/8" |
1/2" - 14 |
2 pcs. |
|
Fitting female swivel BSP 1/2" BSP R1 - R2 - R7 - R8 G-8 |
8 |
1/2" |
1/2" - 14 |
2 pcs. |
|
Fitting female swivel BSP 3/4" BSP R1 - R2 - R7 - R8 G-8 |
8 |
1/2" |
3/4" - 14 |
2 pcs. |
|

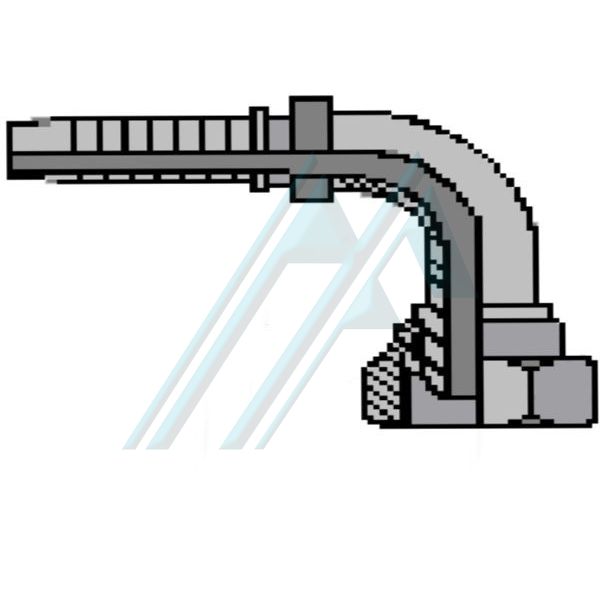

Fitting 90° female swivel BSP 1/4" G - 4 |
4 |
1/4" |
1/4" - 19 |
2 pc. |
|
Fitting 90° female swivel BSP 3/8" G - 4 |
4 |
1/4" |
3/8" - 19 |
2 pcs. |
|
Fitting 90° female swivel BSP 3/8" G - 6 |
6 |
3/8" |
3/8" - 19 |
2 pcs. |
|
Fitting 90° female swivel BSP 1/2" G - 6 |
6 |
3/8" |
1/2" - 14 |
2 pcs. |
|
Fitting 90° female swivel BSP 1/2" G - 8 |
8 |
1/2" |
1/2" - 14 |
2 pcs. |

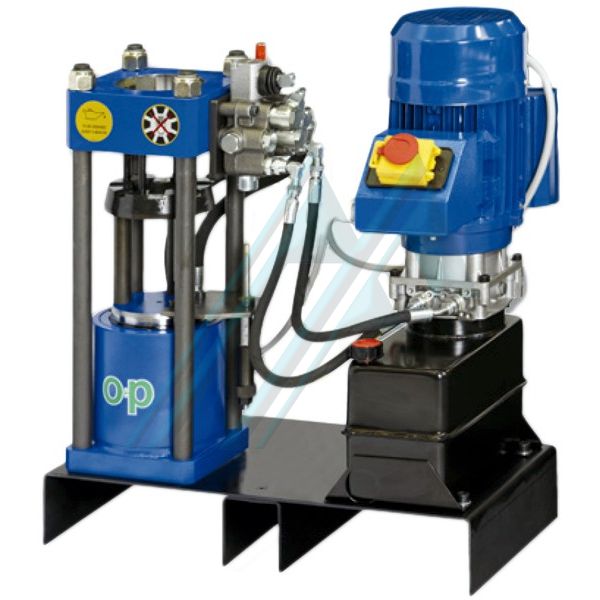

The press TUBOMATIC 040 EL is ideal machine for crimping hydraulic hoses flexible of up to 3/4" with 6 spirals and 1" 4-spiral.
MAIN FEATURES:
- Central hydraulic drive.
- Working position vertical.
* The clamping jaws and other accessories are sold separately.
TECHNICAL FEATURES:
|
PRESSING FORCE |
108 TONNES (12 US TONS) |
|
6 SPIRALS 2 PIECES |
3/4" |
|
4 SPIRALS |
1" |
|
2 BRAIDS |
1" |
|
Ø MAX. PRESSING |
58 mm (2.284") WITH CLAMPS SPECIAL |
|
NUMBER OF CRIMPING / HOUR |
451 |
|
OPENING OF JAWS |
Ø + 37 mm (Ø + 1.457") |
|
STANDARD VOLTAGE |
230 V 50 Hz 1 PH |
|
ENGINE POWER |
1.8 Kw (2.4 Hp) |
|
DIMENSIONS L x P x A |
570 x 370 x 660 mm |
|
WEIGHT WITHOUT OIL |
102 kg (225 Lbs) |
|
ACCESSORIES |
|
|
OIL |
Included |
|
Optional |
|
|
JAWS SPECIAL |
Optional |
|
SPECIAL VOLTAGE |
Optional |
