PACK CARTMAN COMPOSED BY THE FOLLOWING ITEMS:
DESCRIPTION | GAUGE | Ø HOSE | THREAD | UNITS / METERS |
Press TUBOMATIC 265S EL (max. Ø 82 mm) | 1 pc. | |||
Clamp Ø 16 TUBOMATIC 265S EL | 1 pc. | |||
Clamp Ø 22 TUBOMATIC 265S EL | 1 pc. | |||
Clamp Ø 25 TUBOMATIC 265S EL | 1 pc. | |||

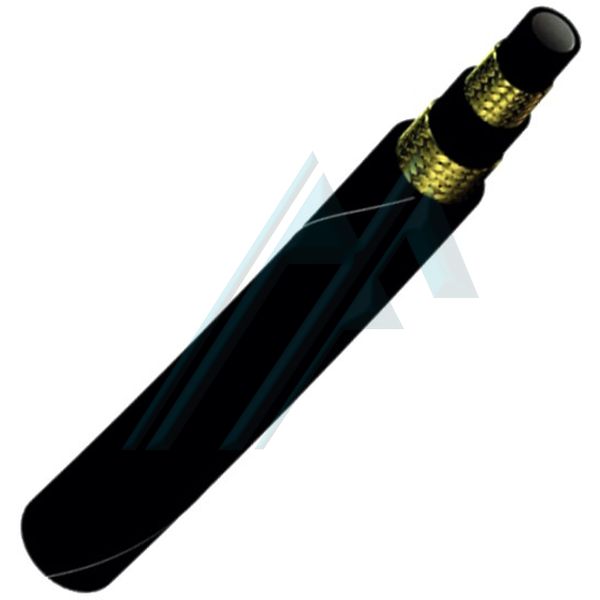

Flexible pipe 1/4" DIN en 857 2SC | 20 m. | |||
Flexible tubing 3/8" DIN en 857 2SC | 20 m. | |||
Flexible pipe 1/2" DIN en 857 2SC | 20 m. | |||

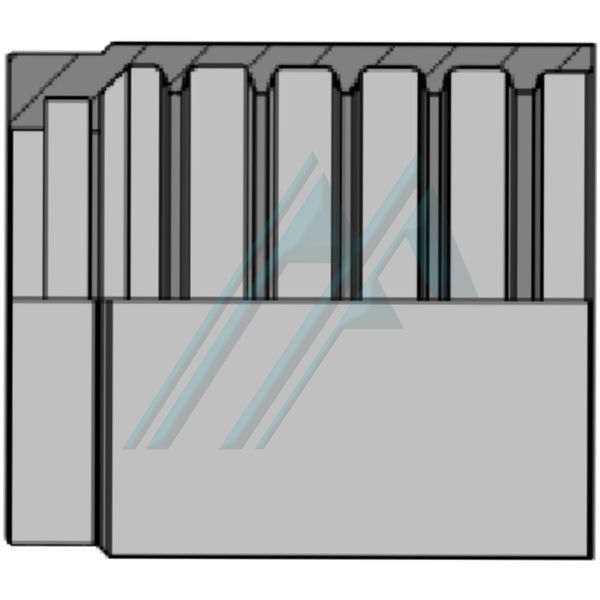

Cap is not peeled R1AT /R2AT / R16 / 1SN /2S | 4 | 6.3 mm | 25 pcs. | |
Cap is not peeled R1AT /R2AT / R16 / 1SN /2S | 6 | 9.5 mm | 25 pcs. | |
Cap is not peeled R1AT /R2AT / R16 / 1SN /2S | 8 | 12.7 mm | 25 pcs. | |

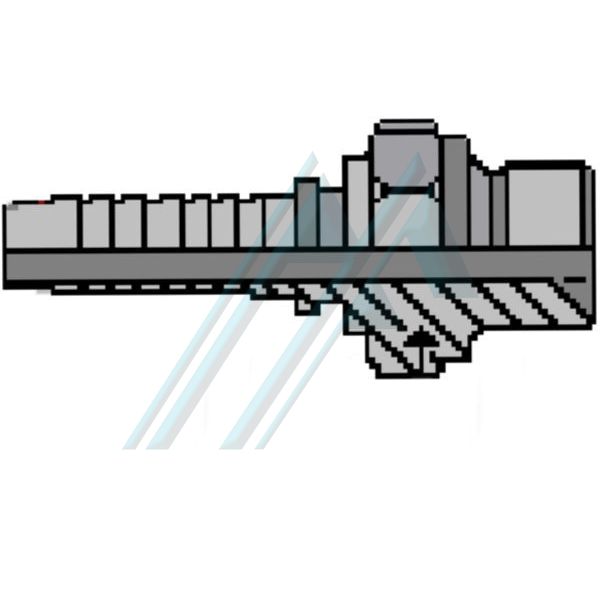

Male connector BSP 1/4" R1 - R2 - R7 - R8 - 4SP G-4 | 4 | 1/4" | 1/4" - 19 | 2 pcs. |
Male connector BSP 3/8" R1 - R2 - R7 - R8 - 4SP G-4 | 4 | 1/4" | 3/8" - 19 | 2 pcs. |
Male connector BSP 1/4" R1 - R2 - R7 - R8 - 4SP G-6 | 6 | 3/8" | 1/4" - 19 | 2 pcs. |
Male connector BSP 3/8" R1 - R2 - R7 - R8 - 4SP G-6 | 6 | 3/8" | 3/8" - 19 | 2 pcs. |
Male connector BSP 1/2" R1 - R2 - R7 - R8 - 4SP G-8 | 8 | 1/2" | 1/2" - 14 | 2 pcs. |
Male connector BSP 3/4" R1 - R2 - R7 - R8 - 4SP G-8 | 8 | 1/2" | 3/4" - 14 | 2 pcs. |

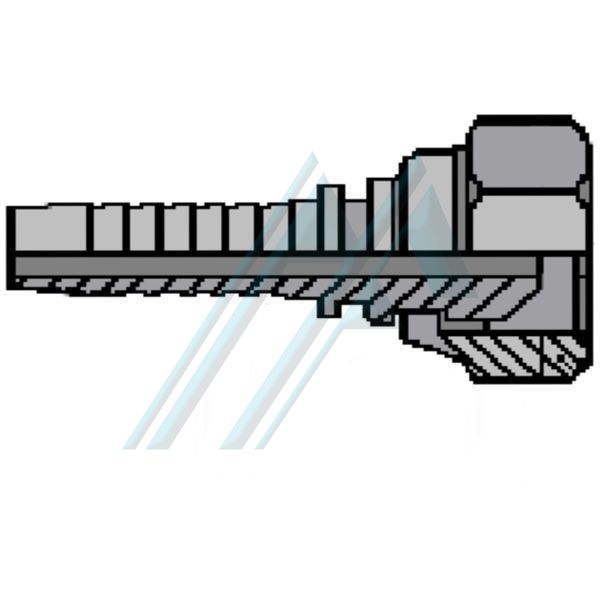

Fitting female swivel BSP 1/4" BSP R1 - R2 - R7 - R8 G-4 | 4 | 1/4" | 1/4" - 19 | 2 pcs. |
Fitting female swivel BSP 3/8" BSP R1 - R2 - R7 - R8 G-4 | 4 | 1/4" | 3/8" - 19 | 2 pcs. |
Fitting female swivel BSP 3/8" BSP R1 - R2 - R7 - R8 G-6 | 6 | 3/8" | 3/8" - 19 | 2 pcs. |
Fitting female swivel BSP 1/2" BSP R1 - R2 - R7 - R8 G-6 | 6 | 3/8" | 1/2" - 14 | 2 pcs. |
Fitting female swivel BSP 1/2" BSP R1 - R2 - R7 - R8 G-8 | 8 | 1/2" | 1/2" - 14 | 2 pcs. |
Fitting female swivel BSP 3/4" BSP R1 - R2 - R7 - R8 G-8 | 8 | 1/2" | 3/4" - 14 | 2 pcs. |

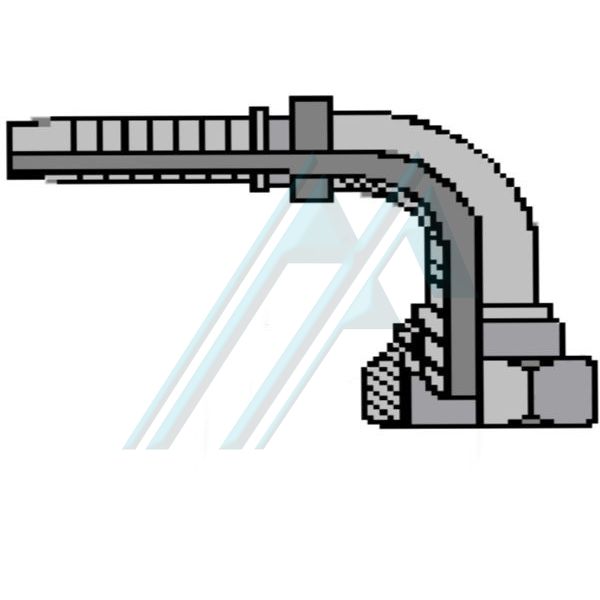

Fitting 90° female swivel BSP 1/4" G - 4 | 4 | 1/4" | 1/4" - 19 | 2 pc. |
Fitting 90° female swivel BSP 3/8" G - 4 | 4 | 1/4" | 3/8" - 19 | 2 pcs. |
Fitting 90° female swivel BSP 3/8" G - 6 | 6 | 3/8" | 3/8" - 19 | 2 pcs. |
Fitting 90° female swivel BSP 1/2" G - 6 | 6 | 3/8" | 1/2" - 14 | 2 pcs. |
Fitting 90° female swivel BSP 1/2" G - 8 | 8 | 1/2" | 1/2" - 14 | 2 pcs. |

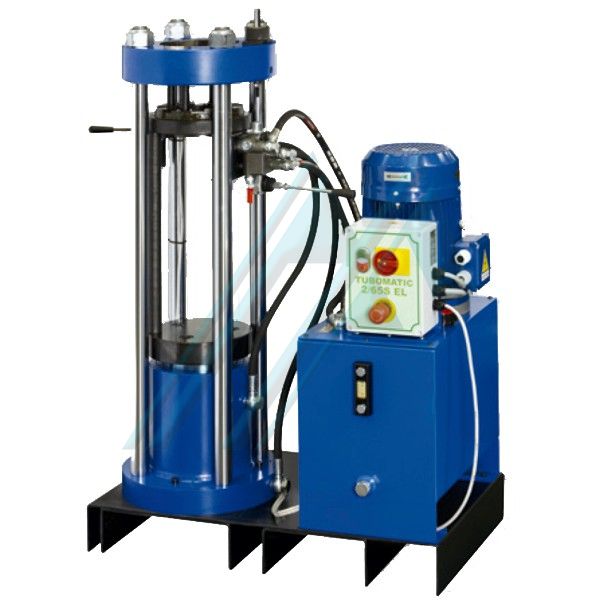

The press Tubomatic 265S EL is ideal machine for pressing hydraulic hoses flexible up to 1" 1/2 six spirals and 2" four spirals.
CARACTERÍSTICAS MAJOR:
- Central hydraulic drive.
- Working position vertical.
*The clamping jaws and other accessories are sold separately.
TECHNICAL FEATURES:
| PRESSING FORCE | 260 TONS |
| 6 SPIRALS 2 PIECES | 1" 1/2 |
| 4 SPIRALS | 2" |
| 2 BRAIDS | 2" |
| Ø MAXIMUM SWAGING | 82 MM (3.228") |
| CRIMPING / HOUR | 430 |
| OPENING JAWS | Ø + 33 MM (Ø + 1.299") |
| MAXIMUM OPENING WITHOUT JAWS | 110 MM (4.331") |
| STANDARD VOLTAGE | 400 V 50 Hz 3 PH |
| ENGINE POWER | 4 KW (5.5 HP) |
| DIMENSIONS L x P x A | 900 x 500 x 1170 MM (35.433" x 19.685" x 46.063") |
| WEIGHT WITHOUT OIL | 340 KG (750 LBS) |
| OIL | 35 LITRES |
ACCESSORIES | |
OIL | Included |
Including the indicated | |
JAWS SPECIAL | Optional |
SPECIAL VOLTAGE | Optional |
