DESCRIPTION |
GAUGE |
Ø HOSE |
THREAD |
UNITS / METERS |
|
Press TUBOMATIC H47 E (max. Ø 46 mm) with pump included |
|
|
|
1 pc. |
|
Clamp Ø 16 TUBOMATIC H47 E |
|
|
|
1 pc. |
|
Clamp Ø 22 TUBOMATIC H47 E |
|
|
|
1 pc. |
|
Clamp Ø 25 TUBOMATIC H47 E |
|
|
|
1 pc. |
|

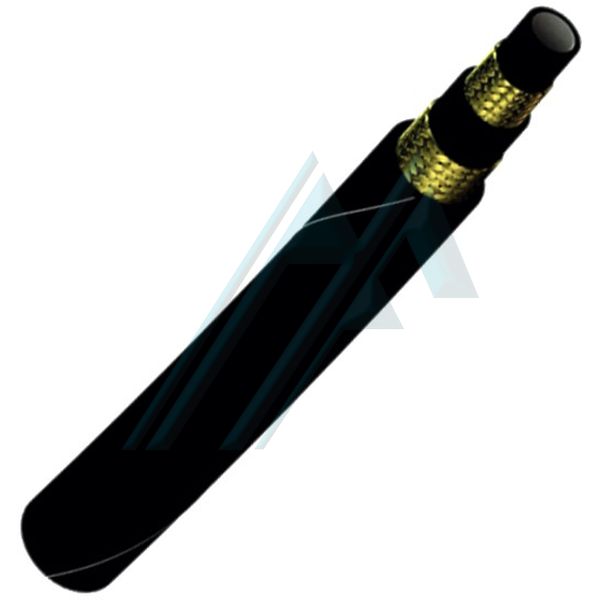

Flexible pipe 1/4" DIN en 857 2SC |
|
|
|
20 m. |
|
Flexible tubing 3/8" DIN en 857 2SC |
|
|
|
20 m. |
|
Flexible pipe 1/2" DIN en 857 2SC |
|
|
|
20 m. |
|

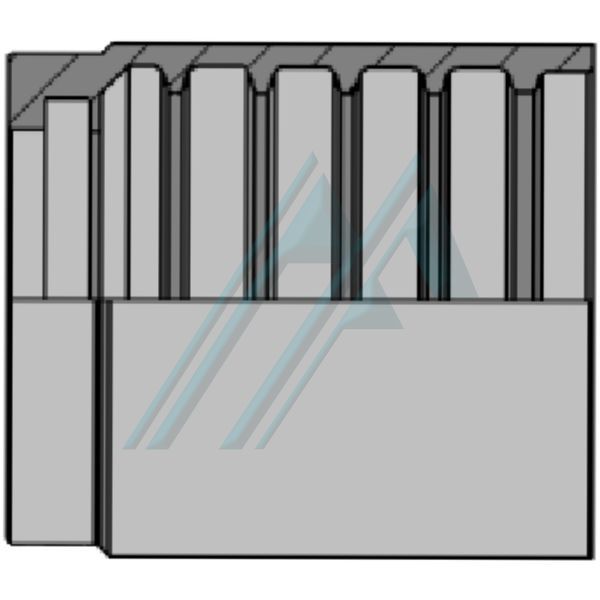

Cap is not peeled R1AT /R2AT / R16 / 1SN /2S |
4 |
6.3 mm |
|
25 pcs. |
|
Cap is not peeled R1AT /R2AT / R16 / 1SN /2S |
6 |
9.5 mm |
|
25 pcs. |
|
Cap is not peeled R1AT /R2AT / R16 / 1SN /2S |
8 |
12.7 mm |
|
25 pcs. |
|

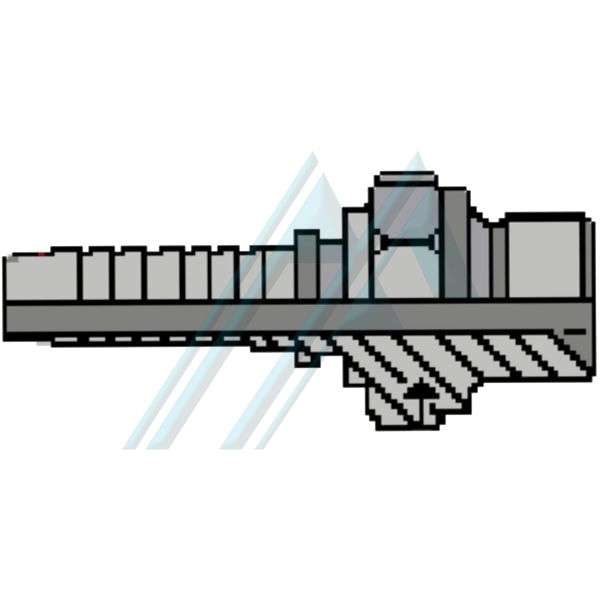

Male connector BSP 1/4" R1 - R2 - R7 - R8 - 4SP G-4 |
4 |
1/4" |
1/4" - 19 |
2 pcs. |
|
Male connector BSP 3/8" R1 - R2 - R7 - R8 - 4SP G-4 |
4 |
1/4" |
3/8" - 19 |
2 pcs. |
|
Male connector BSP 1/4" R1 - R2 - R7 - R8 - 4SP G-6 |
6 |
3/8" |
1/4" - 19 |
2 pcs. |
|
Male connector BSP 3/8" R1 - R2 - R7 - R8 - 4SP G-6 |
6 |
3/8" |
3/8" - 19 |
2 pcs. |
|
Male connector BSP 1/2" R1 - R2 - R7 - R8 - 4SP G-8 |
8 |
1/2" |
1/2" - 14 |
2 pcs. |
|
Male connector BSP 3/4" R1 - R2 - R7 - R8 - 4SP G-8 |
8 |
1/2" |
3/4" - 14 |
2 pcs. |
|

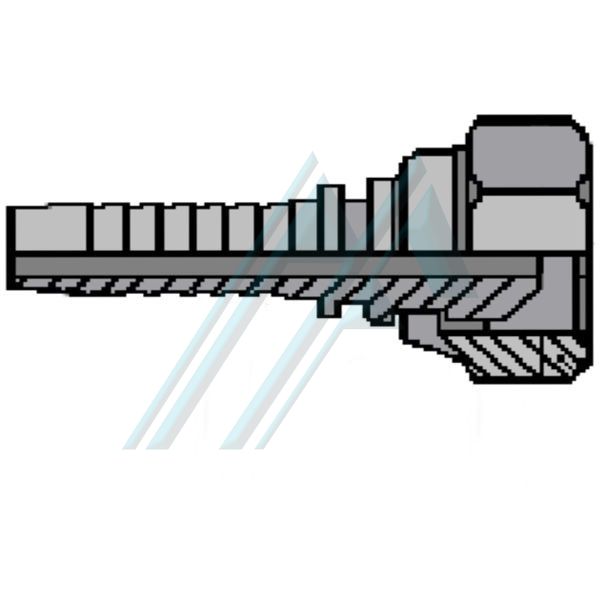

Fitting female swivel BSP 1/4" BSP R1 - R2 - R7 - R8 G-4 |
4 |
1/4" |
1/4" - 19 |
2 pcs. |
|
Fitting female swivel BSP 3/8" BSP R1 - R2 - R7 - R8 G-4 |
4 |
1/4" |
3/8" - 19 |
2 pcs. |
|
Fitting female swivel BSP 3/8" BSP R1 - R2 - R7 - R8 G-6 |
6 |
3/8" |
3/8" - 19 |
2 pcs. |
|
Fitting female swivel BSP 1/2" BSP R1 - R2 - R7 - R8 G-6 |
6 |
3/8" |
1/2" - 14 |
2 pcs. |
|
Fitting female swivel BSP 1/2" BSP R1 - R2 - R7 - R8 G-8 |
8 |
1/2" |
1/2" - 14 |
2 pcs. |
|
Fitting female swivel BSP 3/4" BSP R1 - R2 - R7 - R8 G-8 |
8 |
1/2" |
3/4" - 14 |
2 pcs. |
|

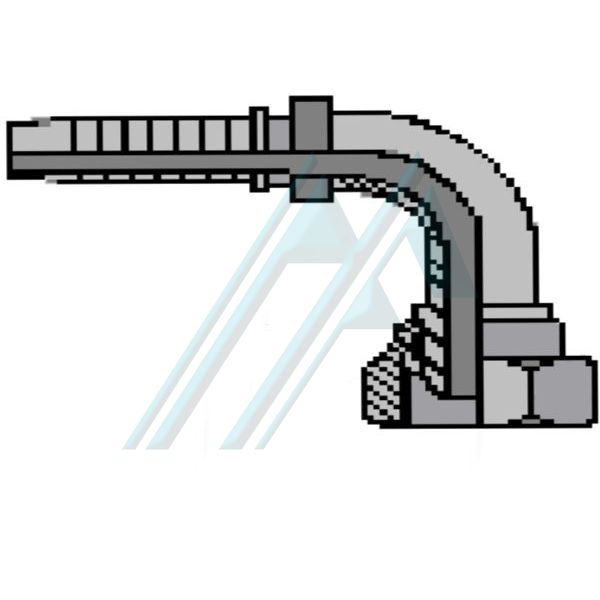

Fitting 90° female swivel BSP 1/4" G - 4 |
4 |
1/4" |
1/4" - 19 |
2 pc. |
|
Fitting 90° female swivel BSP 3/8" G - 4 |
4 |
1/4" |
3/8" - 19 |
2 pcs. |
|
Fitting 90° female swivel BSP 3/8" G - 6 |
6 |
3/8" |
3/8" - 19 |
2 pcs. |
|
Fitting 90° female swivel BSP 1/2" G - 6 |
6 |
3/8" |
1/2" - 14 |
2 pcs. |
|
Fitting 90° female swivel BSP 1/2" G - 8 |
8 |
1/2" |
1/2" - 14 |
2 pcs. |

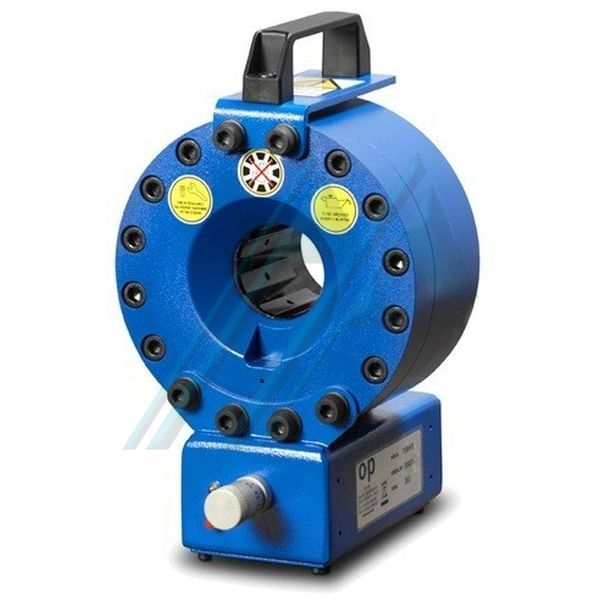

The press TUBOMATIC H47E is the ideal machine for splicing hydraulic hoses flexible up to 1" with 2 braids.
Versatile and easy to carry, is a perfect machine for on-site assistance.
Not suitable for cable glands one-piece.
MAIN FEATURE:
- Manual pump.
- Light to indicate the diameter of the pressing.
- Useful to change the calipers.
* The clamping jaws and other accessories are sold separately.
TECHNICAL FEATURES:
|
PRESSING FORCE |
100 TONELADAS(110 US TONS) |
|
CAPACITY |
1" 2 SP |
|
Ø MAXIMUM |
46 MM (1.811") WITH CLAMPS SPECIAL |
|
OPENING OF JAWS |
Ø + 20 MM (Ø + 0.788") |
|
FITTINGS 90° |
3/8" |
|
DIMENSIONS w x d x H |
300x345x330 MM (11.820"x13.593"x13.002") |
|
WEIGHT |
28 KG (62 LBS) |
|
EFFORT ON LEVER |
30 KG (66 LBS) |
|
ACCESSORIES |
|
|
CYLINDER SIMPLE EFFECT |
Included |
|
OIL |
Included |
|
DRAWER HOLDER CLAMPS |
Included |
|
Includia |
|
|
Including Ø indicated |
|
|
JAWS SPECIAL |
Optional |
|
UTIL-CHANGE JAWS |
Optional |
