COUPLING | MATERIAL | REFERENCE | THREAD |

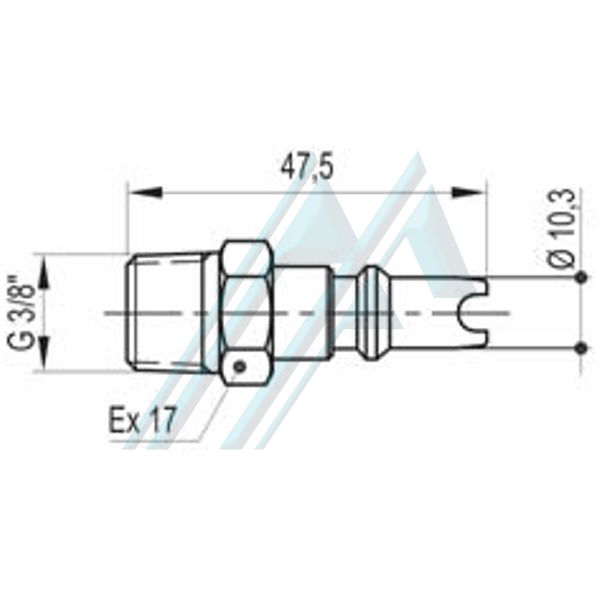

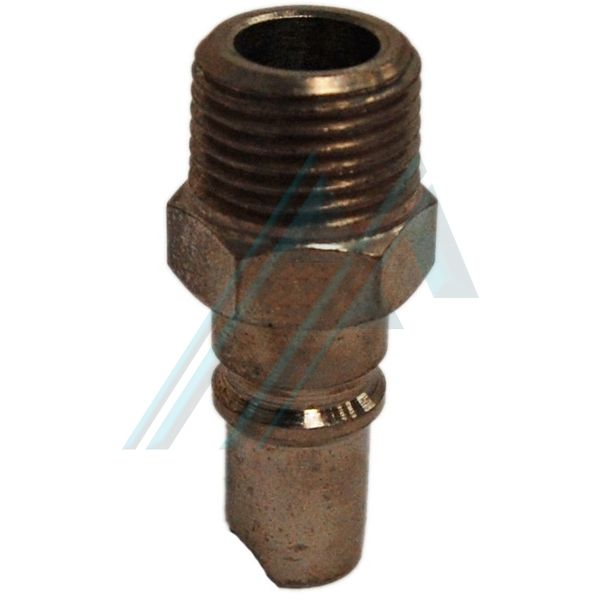

| Steel | ACD50M | R 3/8 ” |

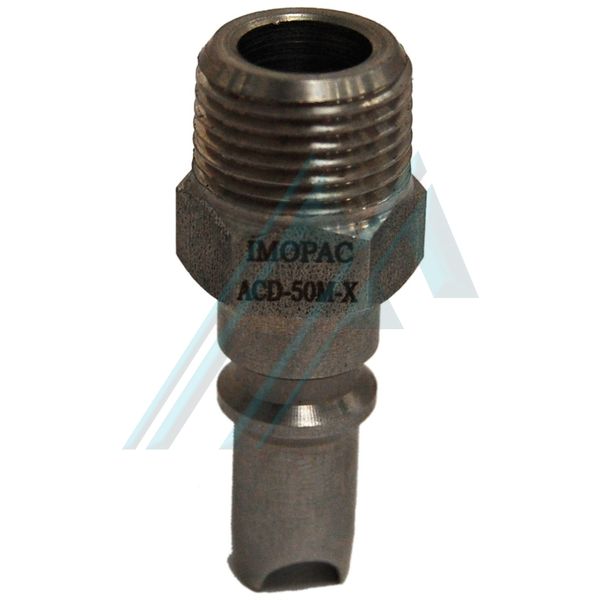

Stainless steel AISI 303 | ACD50MX | ||

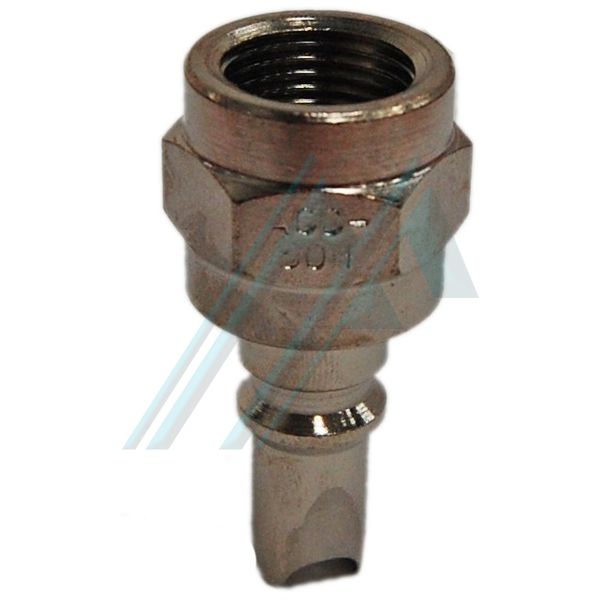

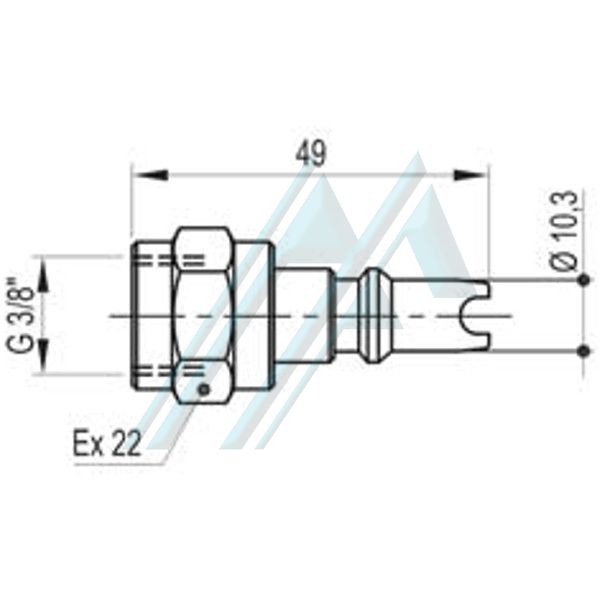

| Steel | ACD50H | G 3/8 " |

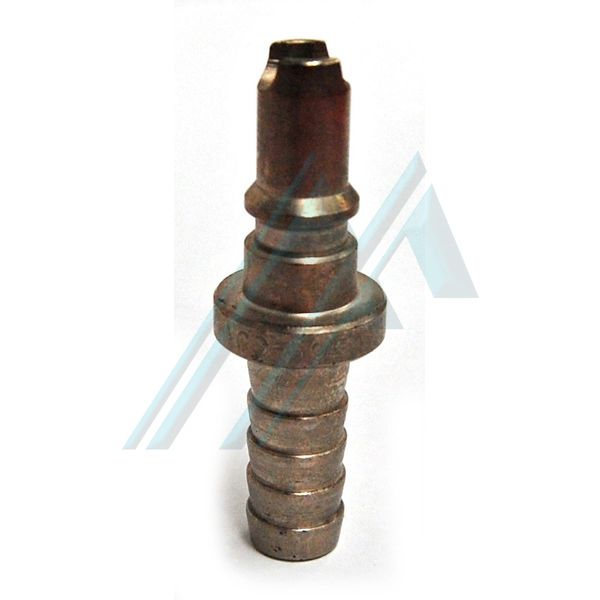

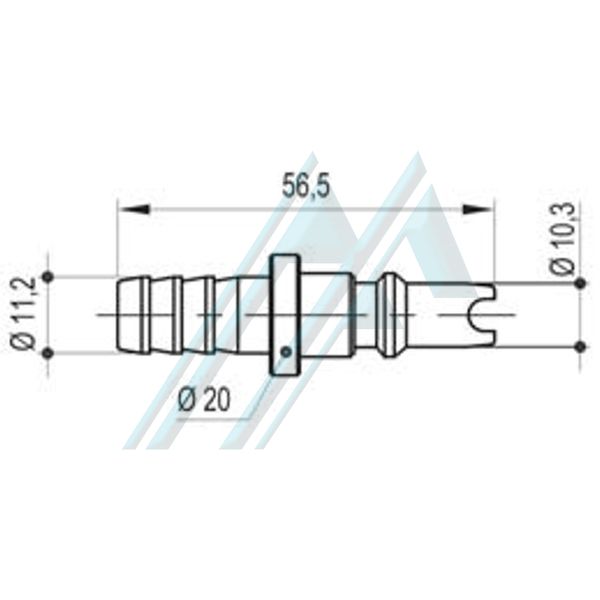

| Steel | ACD50E | Spigot for 10 tube (Ø 11.2 mm.) |

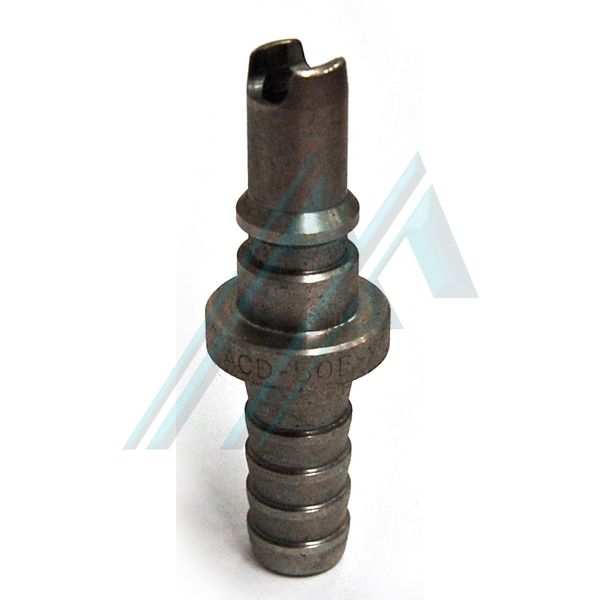

Stainless steel AISI 303 | ACD50EX |
- Recommended working pressure: 0 - 12 bar.
- Maximum working pressure: 20 bar.
- Standard opening pressure: 0.30 bar.
- Working temperature: From -20 ºC to +100 ºC, with NBR gaskets.
From -20 ºC to +205 ºC, with FKM gaskets.
From -40 ºC to +130 ºC, with EPDM gaskets.
From -60 ºC to +200 ºC, with VMQ gaskets.
