90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 6 outside.- Peasda series.- Material forged steel.- Bichromated anti rust treatment.
5,13 €
90° elbow threaded nut M-12X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-12X150.- For hydraulic pipe Ø 6 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
4,63 €
90° elbow threaded nut M-24X150 to hydraulic pipe Ø 16 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-24X150.- For hydraulic pipe Ø 16 outside.- Heavy series.- Material forged steel.- Bichromated anti-oxidation treatment.
11,50 €
90° elbow threaded nut M-22X150 to hydraulic pipe Ø 15 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-22X150.- For hydraulic pipe Ø 15 outside.- Light series.- Material forged steel.- Bichromated antioxide treatment.
7,83 €

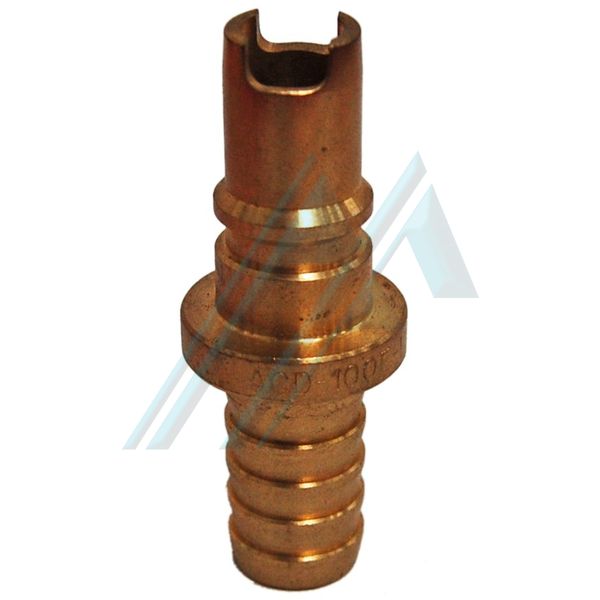

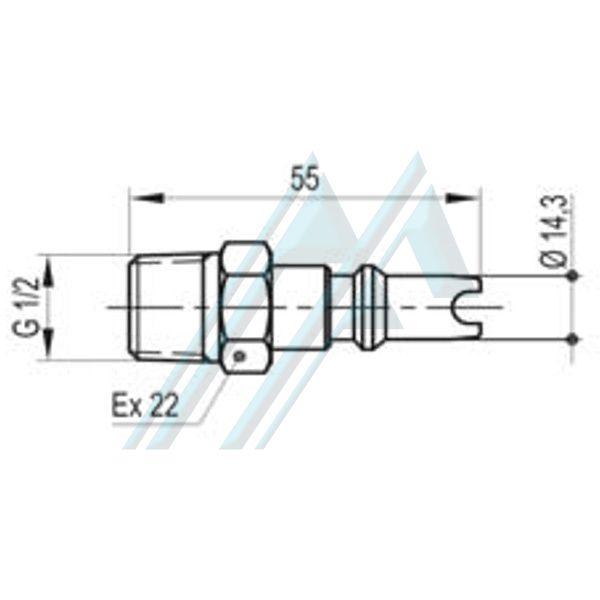

COUPLING | MATERIAL | REFERENCE | THREAD |

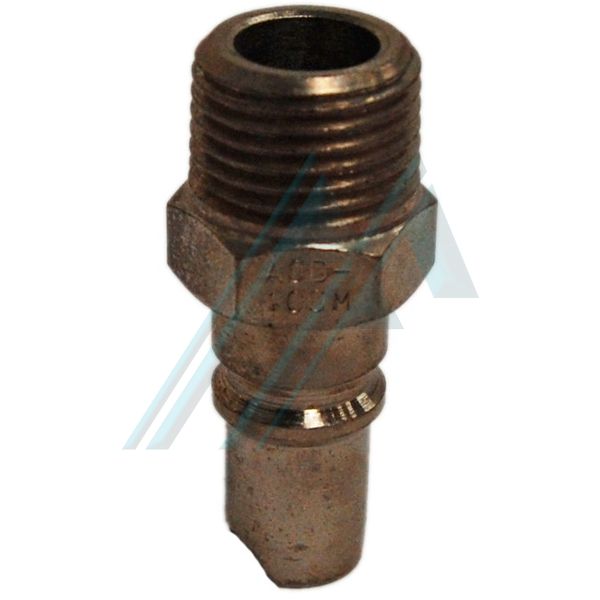

Steel | ACD100M | R 1/2 ” | |
Brass | ACD100ML | ||

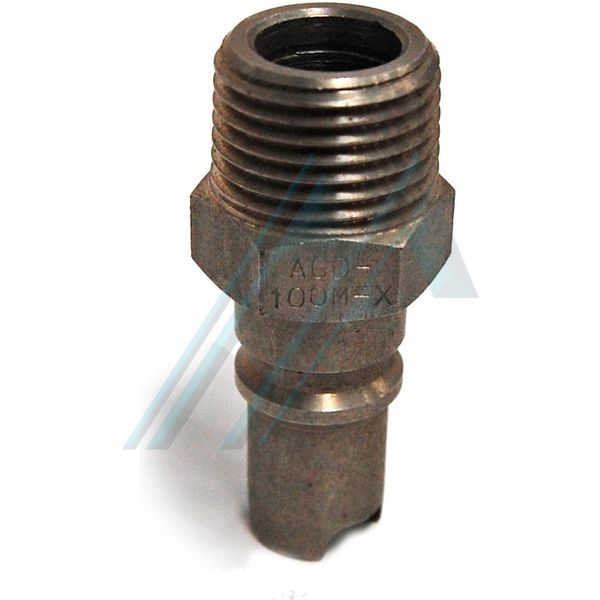

Stainless steel AISI 303 | ACD100MX | ||

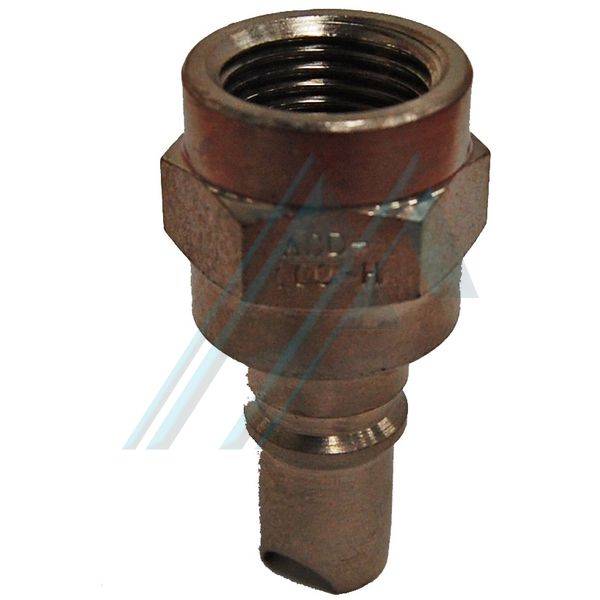

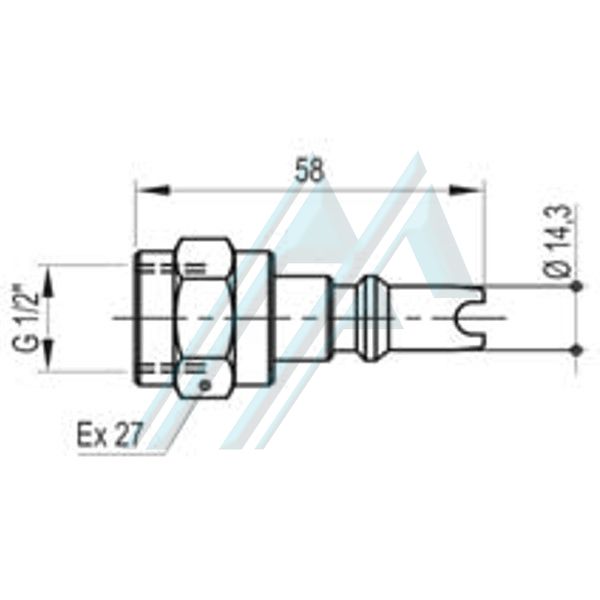

Steel | ACD100H | G 1/2 ” | |

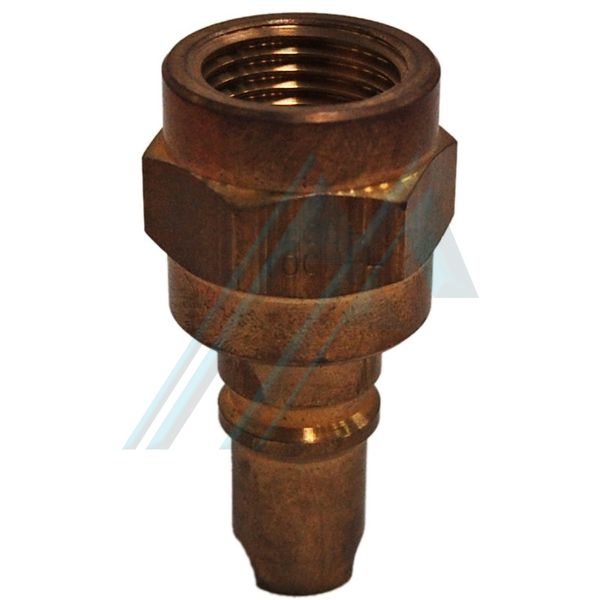

Brass | ACD100HL | ||
Stainless steel AISI 303 | ACD100HX | ||

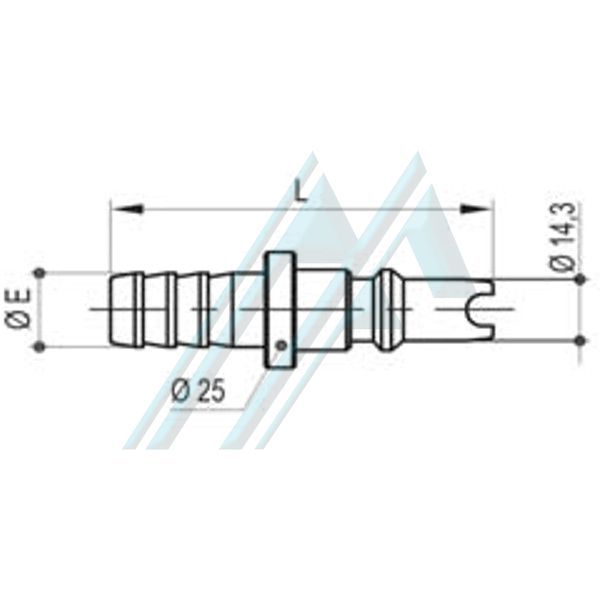

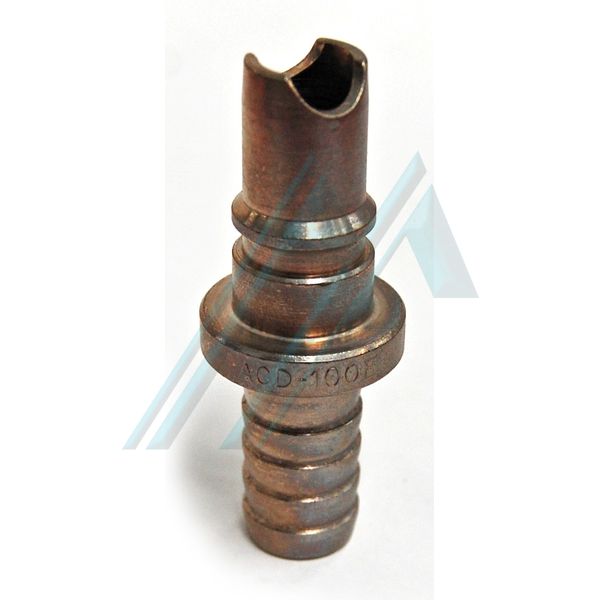

Steel | ACD100E | Spigot for 14 tube (Ø 15.2 mm.) | |
Brass | ACD100EL | ||
Stainless steel AISI 303 | ACD100EX |
- Recommended working pressure: 0 - 12 bar.
- Maximum working pressure: 20 bar.
- Standard opening pressure: 0.30 bar.
- Working temperature: From -20 ºC to +100 ºC, with NBR gaskets.
From -20 ºC to +205 ºC, with FKM gaskets.
From -40 ºC to +130 ºC, with EPDM gaskets.
From -60 ºC to +200 ºC, with VMQ gaskets.
