DESCRIPTION
Easy handling, connection-disconnection with one-hand operation, small size and great robustness. Patented system.
FEATURES
- Recommended operating pressure: 0 - 12 bar.
- Maximum working pressure: 35 bar.
- Working temperature:
-10 ° C to +95 ° C with NBR seals.
From -15 ° C up to +200 ° C with sealing rings made of FKM.
Range -40 ° C to +95 ° C with gaskets of EPDM.
From -60 ° C up to +200 ° C with seals VMQ.
- Flow capacity: 384 l / min. (Measurement performed in a plug CD-12M1 with coupling ACD-12M1, at a pressure of 6 Bar and a pressure loss of 0.5 bar).
|

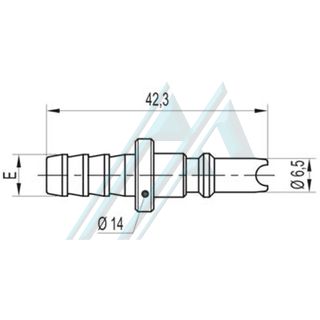

COUPLING |
MATERIAL |
REFERENCE |
THREAD |
L |
Ex |
|
|
Steel |
ACD12M |
R 1/4” |
38,3 |
12 |
|
ACD12M1 |
R 1/8” |
36,3 | 12 | ||
|
|
ACD12H |
G 1/4” |
37,8 |
17 |
|
|
ACD12H1 |
G 1/8” |
35,8 | 12 | ||
|
|
ACD12E6 |
Spike for 6 tube (Ø 7,2 mm) |
- |
- |
|
|
ACD12E8 |
Dowel tube 8 (Ø 9,2 mm) |
- |
- |
