Quick coupler ACD-25 coupling

DESCRIPTION

Easy handling, connection-disconnection with one-hand operation, small size and great robustness. Availability in step-free. Patented system.

Couplings of treated steel, brass or stainless steel.

FEATURES

- Recommended operating pressure: 0-12 bar.

- Maximum working pressure: 35 bar.

- Working temperature:

- Of -10º C to +95º C, with NBR seals.

- From -15º C up to +200 ° C, with sealing rings made of FKM.

- Of -10º C to +95º C, with gaskets of EPDM.

- Of -10º C to +95º C, with seals VMQ.

* Flow capacity: 636 l/min. Measurement is performed in a plug CD-25 with coupling ACD-25M, at a pressure of 6 bar and a pressure loss of 0.5 bar.

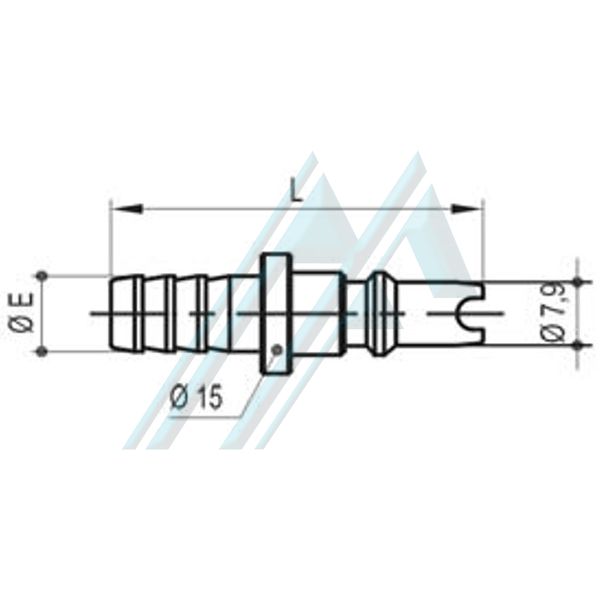

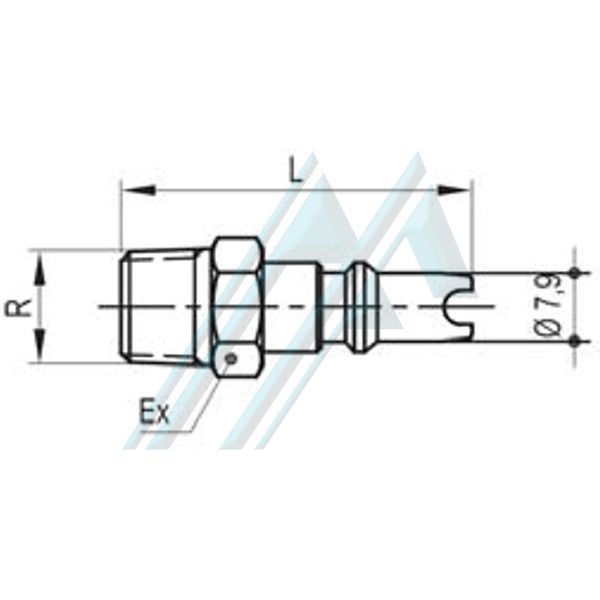

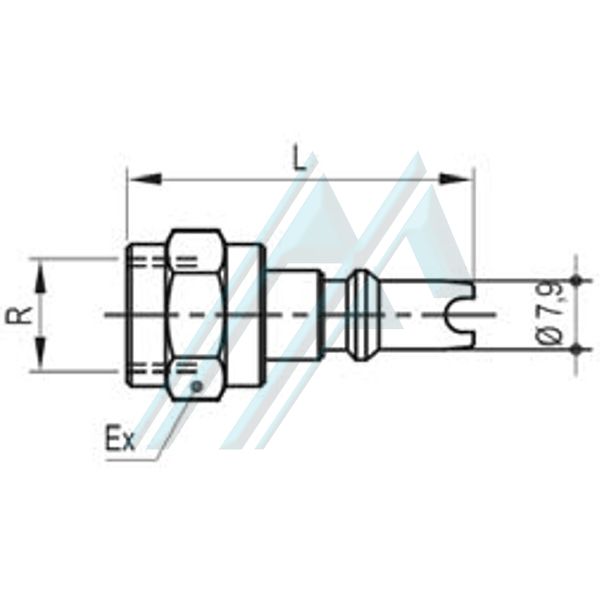

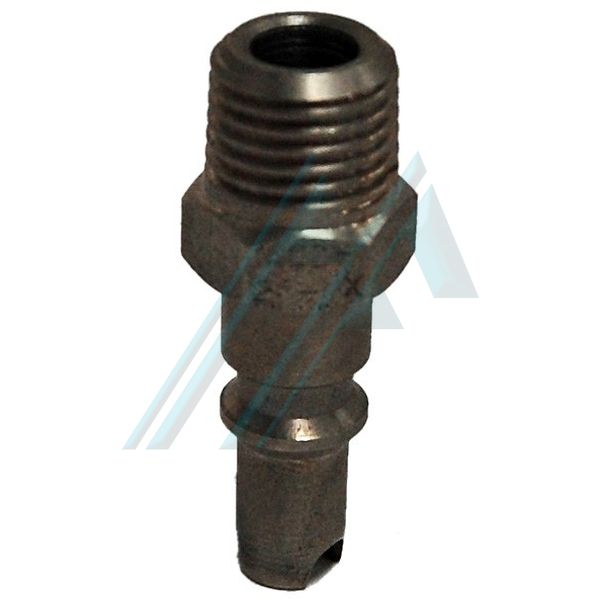

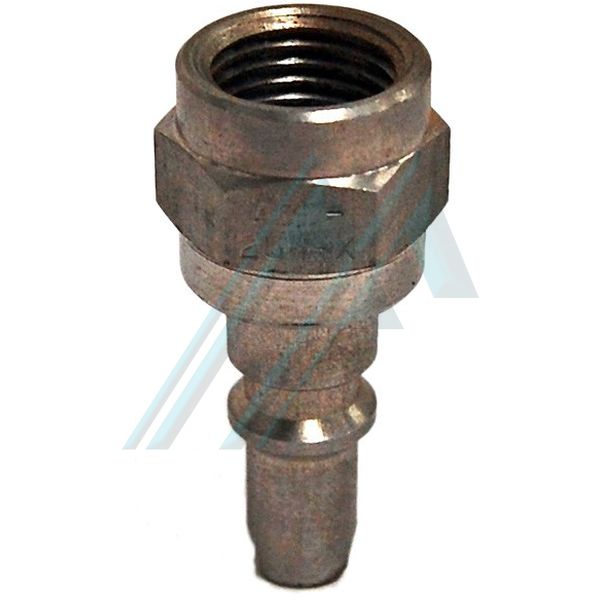

COUPLING	MATERIAL	REFERENCE	THREAD	L	Ex

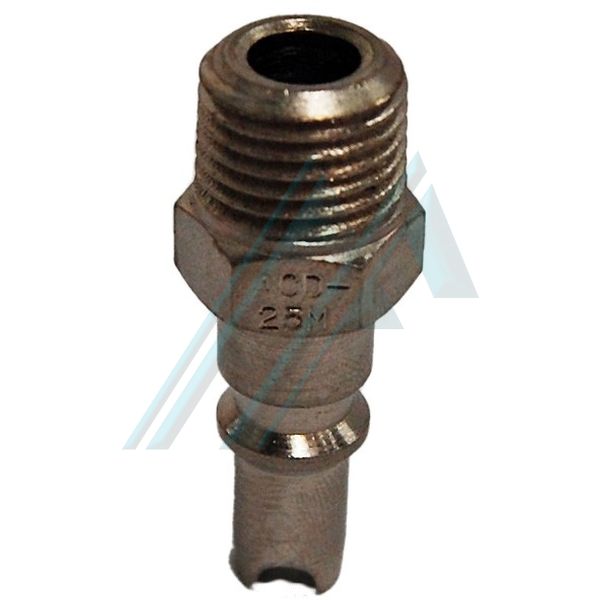

	Steel	ACD25M	R 1/4”	For 40.8	14
	Stainless steel AISI 303	ACD25MX

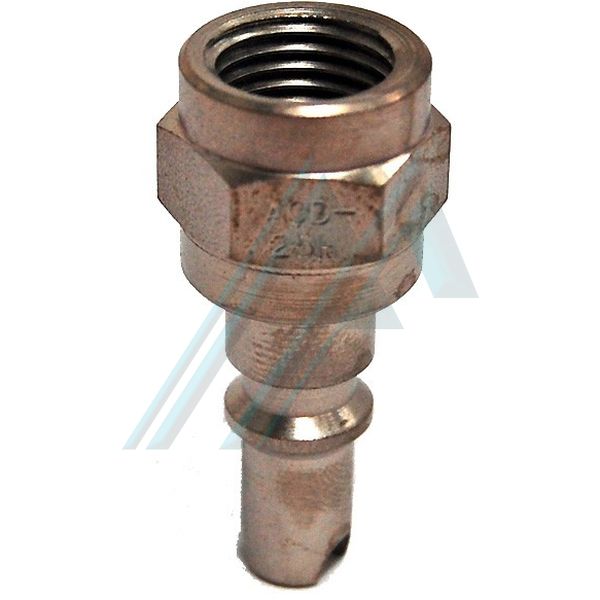

	zero	ACD25H	G 1/4”	40,3	17
	Stainless steel AISI 303	ACD25HX

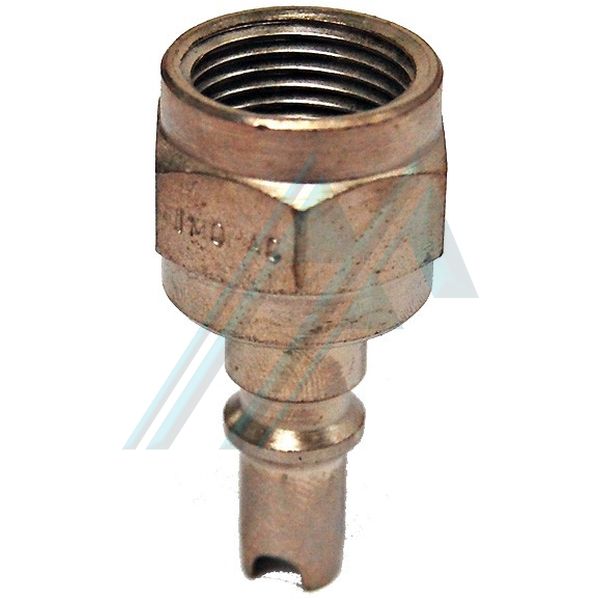

	Steel	ACD25H38	G 3/8”	41,8	20

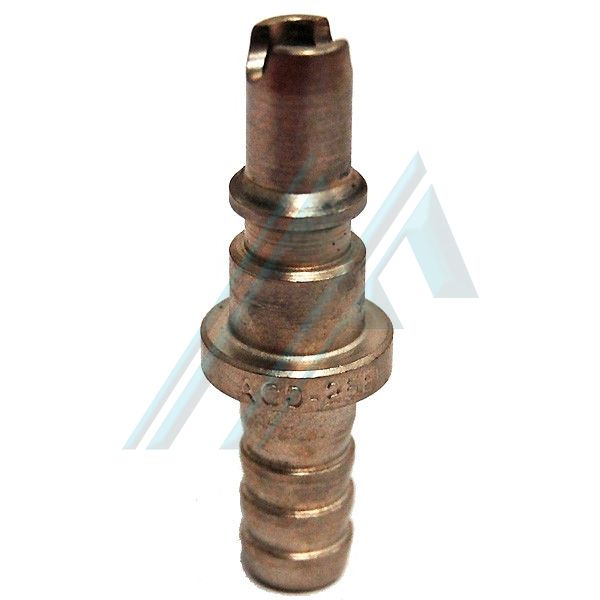

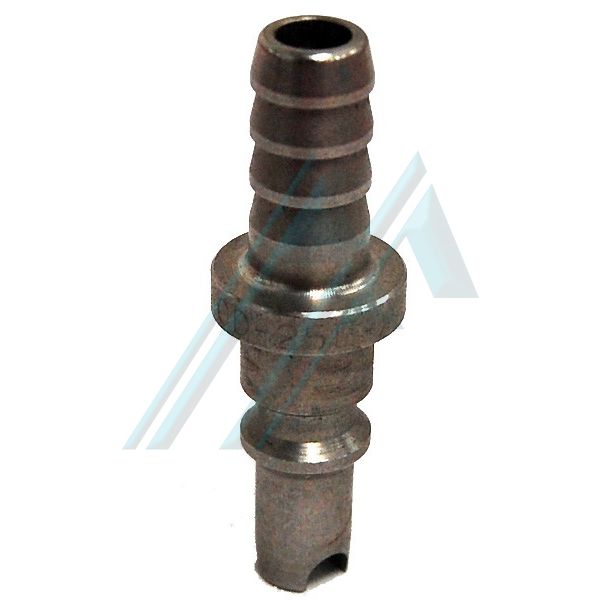

	Steel	ACD25E	Dowel tube 8 (Ø 9,2 mm)	47,0	-
	Stainless steel AISI 303	ACD25EX		As against 52.3	-
