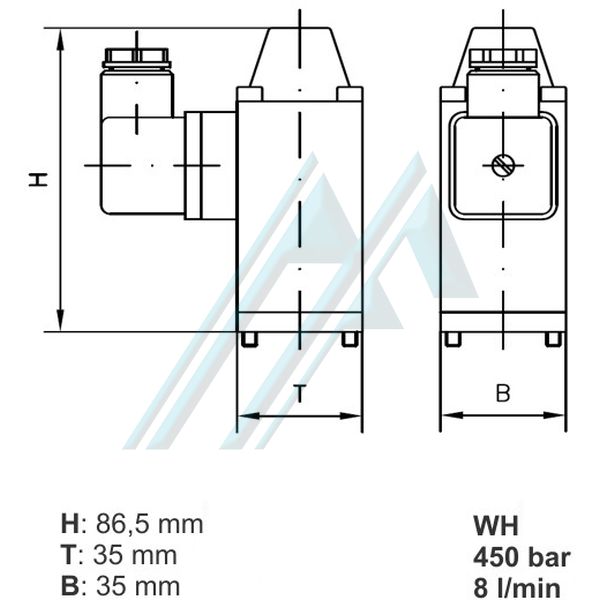

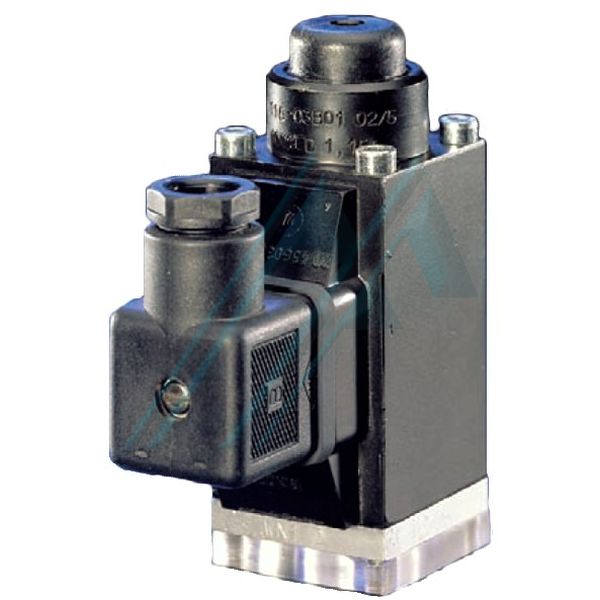

Sealed solenoid valve HAWE WH 1N L24

All function-relevant components, from the coil to the valve elements, are lubricated with hydraulic oil and are maintenance-free. In the WH model, the actuator is located between the coil and the valve elements are hermetic and has been constructed in such a way that the force of the coil is assisted by an additional hydraulic force and that the switchable pressure is around 350 bar . The coil compartment also communicates internally with the return chamber for lubrication and flow compensation, depending on the type of application, it must be connected to the return duct that goes to the tank when using 2 / 2 way.
