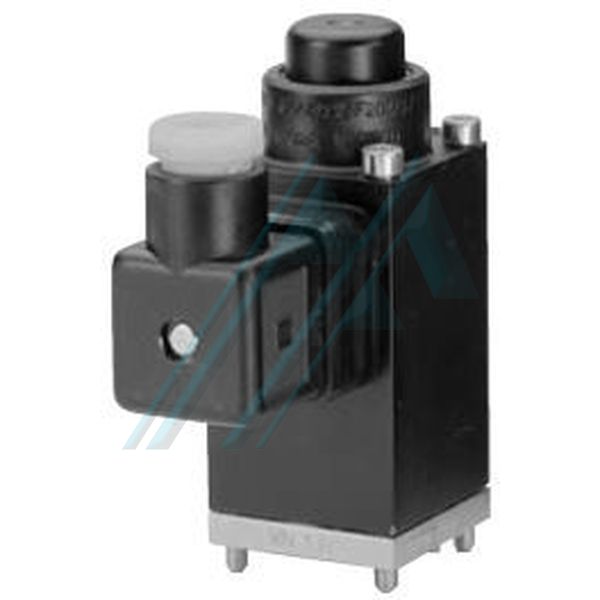

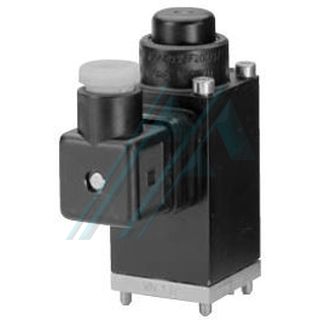

Solenoid valve HAWE WN 1 F-G 24

All function-relevant components, from the electromagnetic rotor to the valve elements, are lubricated with hydraulic oil and are maintenance-free. The pressure-tight electromagnetic rotor compartment is directly connected to the valve outlet R. A simple tappet between the electromagnetic rotor and the valve elements is therefore sufficient without any sealing. This results in a very long service life (no seal wear). The electromagnetic force depends considerably on the existing pressures, so it is often also possible to work with low voltage, this reduces the temperature of the electromagnet, thus increasing the service life.

Properties and advantages:

• Space-saving.
• Sealed directional valve without drainage.
• Electromagnetic version with 8 watt technology.

Areas of application:

• Agricultural and forestry machinery.
• Construction and building material machines.
• Clamping mechanisms, punching tools, devices.
• Technological systems.
