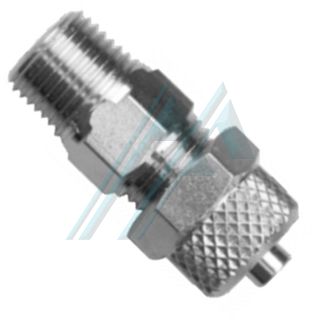

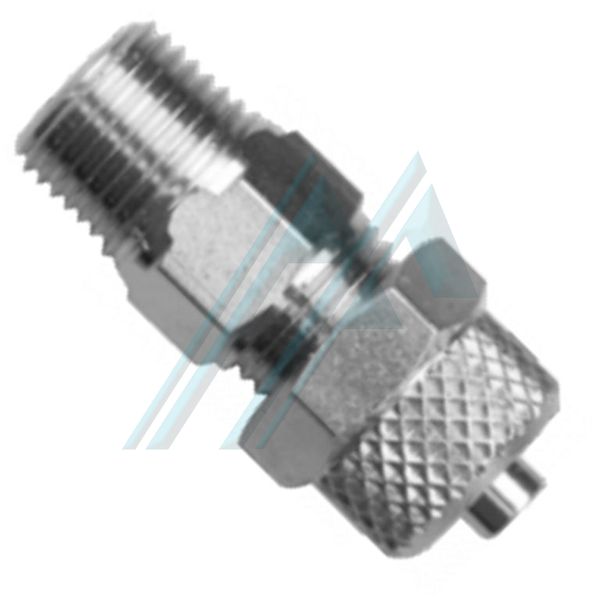

Made of nickel-plated brass OT-58.
Working temperature from -15ºC to 70ºC.
Nominal pressure of 15 bar.
Availability : In stock, usually shipped within one business day
Made of nickel-plated brass OT-58.
Working temperature from -15ºC to 70ºC.
Nominal pressure of 15 bar.
Availability : In stock, usually shipped within one business day
All female threads:
- Cylindrical BSP.
Male thread:
- conical BSP;
- Cylindrical BSP.
REFERENCE | Ø TUBE | THREAD |
| RC 0401 | 2.5x4 | 1/8 " |
| RC 0501 | 3x5 | 1/8 " |
| RC 0601 | 4x6 | 1/8 " |
| RC 0602 | 4x6 | 1/4 " |
| RC 0603 | 4x6 | 3/8 " |
| RC 0801 | 6x8 | 1/8 " |
| RC 0802 | 6x8 | 1/4 " |
| RC 0803 | 6x8 | 3/8 " |
| RC 1001 | 8x10 | 1/8 " |
| RC 1002 | 8x10 | 1/4 " |
| RC 1003 | 8x10 | 3/8 " |
| RC 1004 | 8x10 | 1/2 " |
| RC 1203 | 10x12 | 3/8 " |
| RC 1204 | 10x12 | 1/2 " |
Connection thread measurements:
M5 | 01 | 02 | 03 | 04 | 05 | 06 |
M5x0.8 | R-1/8 " | R-1/4 " | R-3/8 " | R-1/2 " | R-3/4 " | R-1 " |
Example: RC 1002, corresponds to an 8x10 fitting and 1/4 "thread.
