Made of nickel-plated brass OT-58.
Working temperature from -15ºC to 70ºC.
Nominal pressure of 15 bar.
Availability : In stock, usually shipped within one business day
PACK KYLE press TUBOMATIC H47PM OR+P (max Ø 46 mm) with fittings and hose
PACK KYLE composed by press TUBH47PM (max Ø 46 mm) with fittings and hose.
1 567,60 €
Case of O-rings. 382 O-rings made of NBR with measurements in Metric. The dimensions of the O-ring are determined by the inside diameter and the thickness. SPECIAL OFFER UNTIL ITS OUT OF STOCK!
10,99 €
PACK KENNY press TUBOMATIC H47E OR+P (max Ø 46 mm) with fittings and hose
PACK KENNY composed by press TUBH47E (max Ø 46 mm) with fittings and hose.
1 567,60 €
Racor T/L-MF JIC/BSPP 1"1/16-3/4"
13,70 €
188,42 €
244,23 €

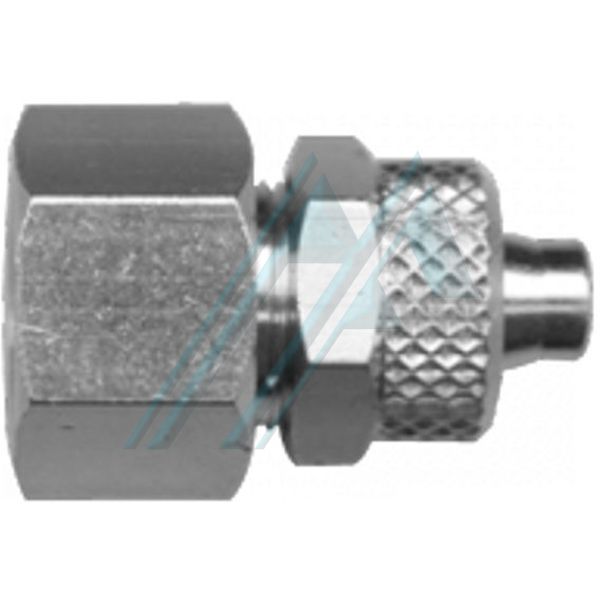

Made of nickel-plated brass OT-58.
Working temperature from -15ºC to 70ºC.
Nominal pressure of 15 bar.
Availability : In stock, usually shipped within one business day
All female threads:
- Cylindrical BSP.
Male thread:
- conical BSP;
- Cylindrical BSP.
REFERENCE | Ø TUBE | THREAD |
| RCF 0601 | 4x6 | 1/8 " |
| RCF 0602 | 4x6 | 1/4 " |
| RCF 0603 | 4x6 | 3/8 " |
| RCF 0801 | 6x8 | 1/8 " |
| RCF 0802 | 6x8 | 1/4 " |
| RCF 0803 | 6x8 | 3/8 " |
| RCF 1001 | 8x10 | 1/8 " |
| RCF 1002 | 8x10 | 1/4 " |
| RCF 1003 | 8x10 | 3/8 " |
| RCF 1004 | 8x10 | 1/2 " |
| RCF 1203 | 10x12 | 3/8 " |
Connection thread measurements:
M5 | 01 | 02 | 03 | 04 | 05 | 06 |
M5x0.8 | R-1/8 " | R-1/4 " | R-3/8 " | R-1/2 " | R-3/4 " | R-1 " |
Example: RCF 1002, corresponds to an 8x10 fitting and 1/4 "thread.
