90° elbow threaded nut M-24X150 to hydraulic pipe Ø 16 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-24X150.- For hydraulic pipe Ø 16 outside.- Heavy series.- Material forged steel.- Bichromated anti-oxidation treatment.
11,50 €
90° elbow threaded nut M-22X150 to hydraulic pipe Ø 15 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-22X150.- For hydraulic pipe Ø 15 outside.- Light series.- Material forged steel.- Bichromated antioxide treatment.
7,83 €
90° elbow threaded nut M-22X150 to hydraulic pipe Ø 14 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-22X150.- For hydraulic pipe Ø 14 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
10,54 €
90° elbow threaded nut M-20X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-20X150.- For hydraulic pipe Ø 12 outside.- Heavy series.- Material forged steel.- Bichromated antioxide treatment.
7,13 €
- Air filter. - Height: 125 mm. - Exterior Diameter 128 mm. - Interior Diameter: 64 mm. - Internal Diameter 2: 64 mm. - Weight: 0.540.
25,12 €
90° elbow threaded nut M-36X200 to hydraulic pipe Ø 25 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-36X200.- For hydraulic pipe Ø 25 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
27,25 €
90° elbow threaded nut M-30X200 to hydraulic pipe Ø 22 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-30X200.- For hydraulic pipe Ø 22 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
15,46 €
90° elbow threaded nut M-30X200 to hydraulic pipe Ø 20 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-30X200.- For hydraulic pipe Ø 20 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
16,75 €

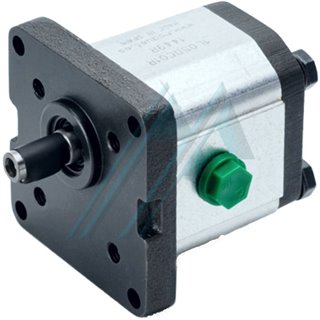

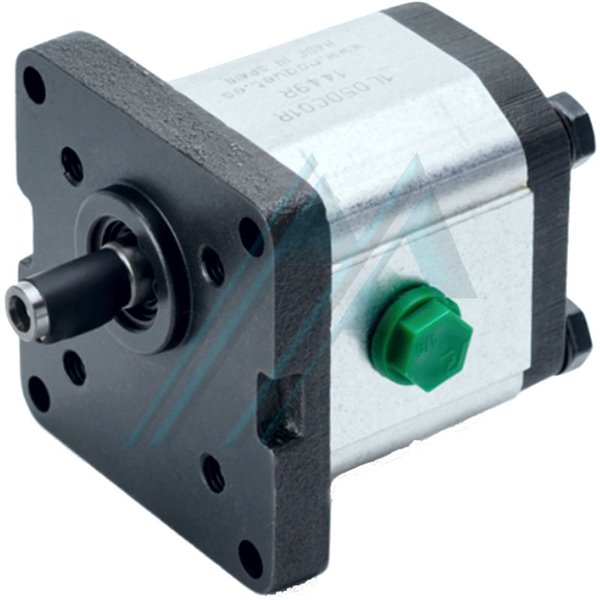

Pump flow | L / min. 1,500 RPM (US CPM 1500 RPM) | 10 (2.64) |
Displacement | cm3 / v - cc / rev (in3 / rev) | 6.6 (0.40) |
Max Pressure keep going | Pub (PSI) | 135 (1,960) |
Max pressure inter 5 sec. max. | Pub (PSI) | 150 (2,175) |
RPM at continuous pressure | 3,000 | |
Maximum RPM | 3,000 | |
Minimum RPM according to pressure | 100 bar (1,450 PSI) | 500 |
175 bar (2,540 PSI) | - | |
205 bar (3,625 PSI) | - | |
300 bar (4,350 PSI) | - | |
Recommended oil | ISO 6743 type HM, HV or HG | |
Viscosity | ISO 3448 cat. VG32-VG46 | |
Oil cleanliness degree | 19/16 s. ISO 4406 or RP70H | |
Oil working temperature | -20 ° C ... + 80 ° C -4 ° F ... + 173 ° F | |
Maximum suction depression | <0.3 bar |
