90° elbow threaded nut M-52X150 to hydraulic pipe Ø 42 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 42 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
51,29 €
90° elbow threaded nut M-52X150 to hydraulic pipe Ø 38 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 38 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
122,42 €
90° elbow threaded nut M-45X200 to hydraulic pipe Ø 35 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-45X200.- For hydraulic pipe Ø 35 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
37,50 €
Single-acting pneumatic cylinder with piston diameter 25 mm
- Single-acting pneumatic cylinder. - Front spring. - Piston diameter Ø 25 mm. - Stroke 50 mm. - Material of the stem and sleeve stainless steel. - Working temperature 0ºC to +80ºC. - Working pressure from 1 Bar to 10 Bar.
75,45 €
- PVDA-LAN pressure reducing cartridge valve
- Mounting in T-21A cavity. - Pilot operated. - Adjustment using allen screw. - Adjustment from 7 to 210 Bar. - Nitrile gasket material.
287,86 €
Pressure regulating valve for threading in block Hawe CDK 3 51
- Pressure regulator valve for threading into a block. - Block not included. - Flow rate 12 l/min. - Pressure regulation from 15 to 165 BAR. - Adjustable with tool.
226,00 €
Flexible 1/4" double textile braid tubing
SELLING PRICE PER METER: 1 UNIT = 1 METER
4,63 €
Flexible tubing 3/16" double textile braid
SELLING PRICE PER METER: 1 UNIT = 1 METER
5,96 €

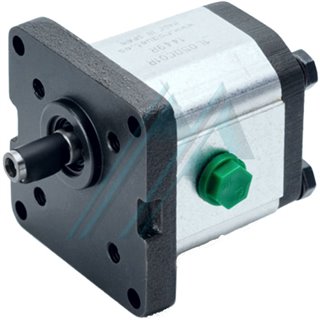

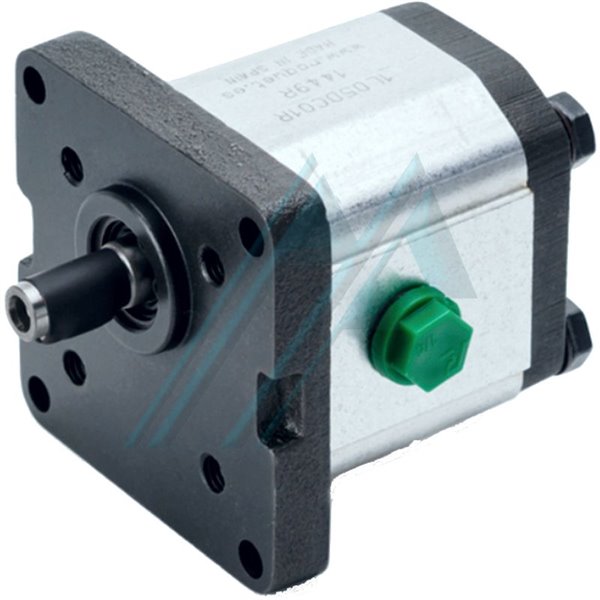

Pump flow | L / min. 1,500 RPM (US CPM 1500 RPM) | 1.5 (0.40) |
Displacement | cm3 / v - cc / rev (in3 / rev) | 1 (0.06) |
Max Pressure keep going | Pub (PSI) | 275 (3,990) |
Max Pressure inter 5 sec. max. | Pub (PSI) | 300 (4,350) |
RPM at continuous pressure | 5,000 | |
Maximum RPM | 6,000 | |
Minimum RPM according to pressure | 100 bar (1,450 PSI) | 1,000 |
175 bar (2,540 PSI) | 1,500 | |
205 bar (3,625 PSI) | 2,000 | |
300 bar (4,350 PSI) | 3,000 | |
Recommended oil | ISO 6743 type HM, HV or HG | |
Viscosity | ISO 3448 cat. VG32-VG46 | |
Oil cleanliness degree | 19/16 s. ISO 4406 or RP70H | |
Oil working temperature | -20 ° C ... + 80 ° C -4 ° F ... + 173 ° F | |
Maximum suction depression | <0.3 bar |
