Home>Hydraulic elements>Cartridge valves>SUN Series CBBA Hydraulic Relief Valve

SUN Series CBBA Hydraulic Relief Valve

Piloted semi-restrictive discharge compensating valves are manufactured to control excess loading.

This valve is also known as a motion control valve or an over center valve.

More details...

Availability : In stock, usually shipped within one business day

164,32 €

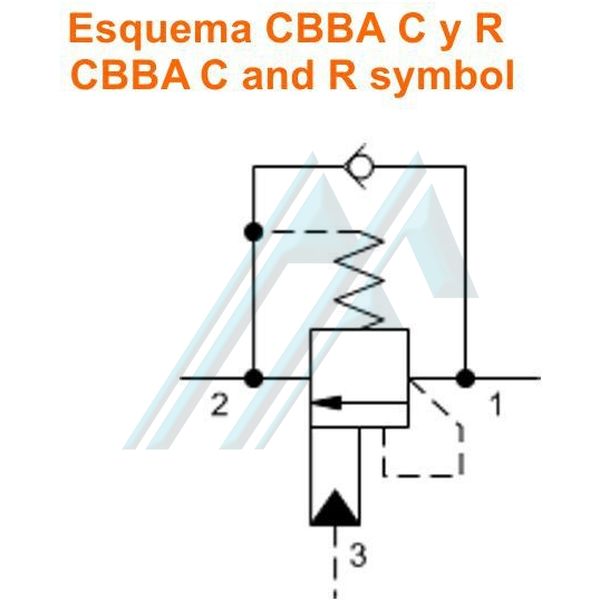

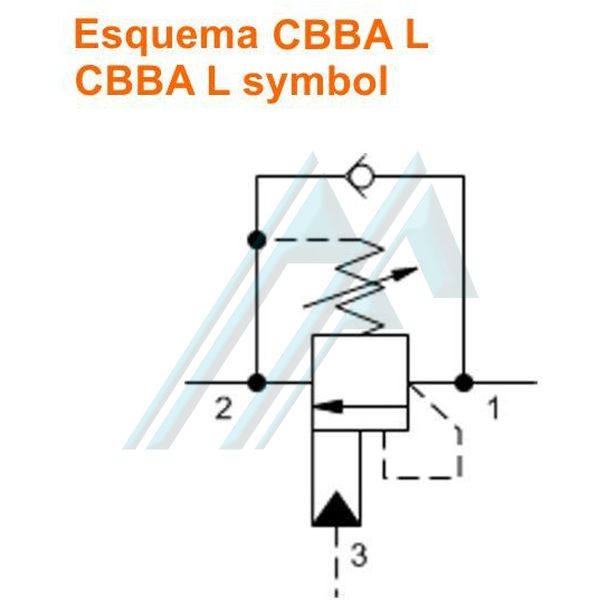

The non-return valve allows free flow from the directional valve (2) to pressure (1) while a direct, pilot-operated discharge valve controls the flow from 1 to 2. The pilot (3) lowers the effective setting of the discharge valve to a value determined by the piloting ratio.
.
Maximum flow: 20 liters;
Cavity: T11-A.
.
Standard options

I send

Pressure setting

Gaskets

C * Anti-tampering system - factory setting

L Standard screw adjustment

At 1000 - 4000 psi w / backstop at 4 psi (70 - 280 bar w / backstop at 0.3 bar)
3000 psi (210 bar) Standard setting

B 400 - 1500 psi w / backstop at 4 psi (28 - 105 bar w / backstop at 0.3 bar)
1000 psi (70 bar) Standard setting

H 1000 - 4000 w / backstop at 25 psi (70 - 280 bar w / backstop at 1.7 bar)
3000 psi (210 bar) Standard setting

I 400 - 1500 psi w / backstop at 25 psi (28 - 105 bar w / backstop at 1.7 bar)
1000 psi (70 bar) Standard setting

N Nitrile

V Viton

Special manufacturing

R * Screw adjustment with locking

ATTENTION: * Special setting to be confirmed at the time of ordering. Customer specified adjustments will be engraved on the nut.
