SUN Series CBCH Hydraulic Relief Valve

Pilot discharge compensating valves are manufactured to control excess charge.

This valve is also known as a motion control valve or an over center valve.

More details...

Availability : In stock, usually shipped within one business day

170,26 €

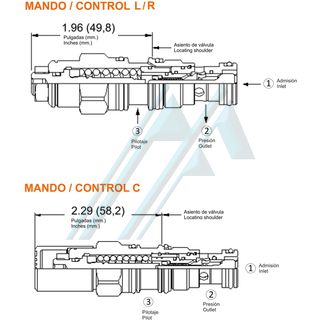

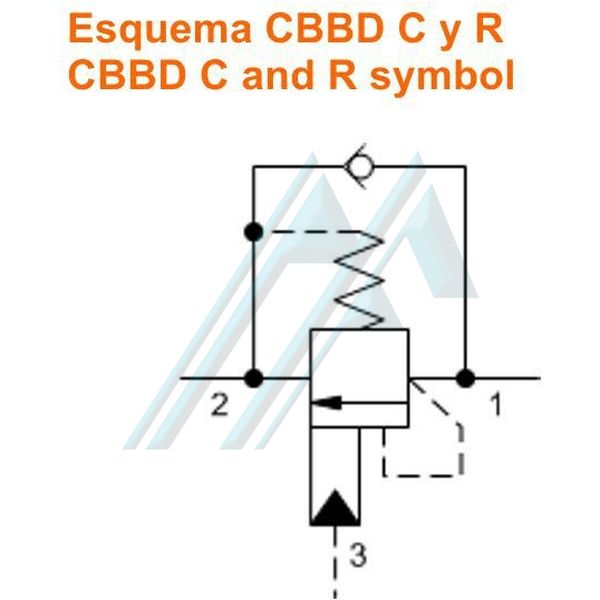

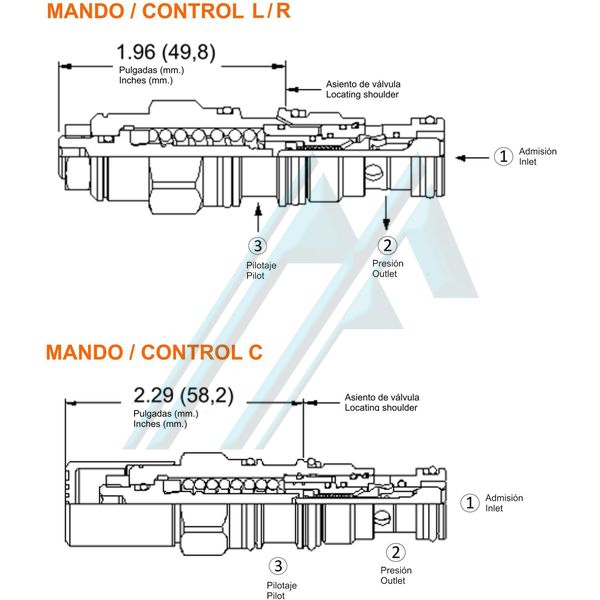

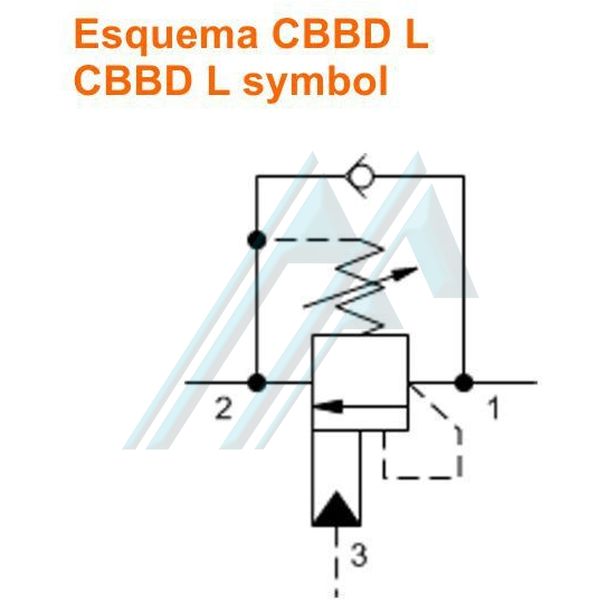

The non-return valve allows free flow from the directional valve (2) to pressure (1) while a direct, pilot-operated discharge valve controls the flow from 1 to 2. The pilot (3) lowers the effective setting of the discharge valve to a value determined by the piloting ratio.
.
Maximum flow: 60 liters;
Cavity: T11-A.
.
Standard options

I send

Pressure setting

Gaskets

C * Anti-tampering system - factory setting

L Standard screw adjustment

D 1000 - 2500 psi w / backstop at 4 psi (70 - 175 bar w / backstop at 0.3 bar)
2000 psi (140 bar) Standard setting

J 2000 - 5000 w / backstop at 25 psi (140 - 350 bar w / backstop at 1.7 bar)
3000 psi (210 bar) Standard setting

K 1000 - 2500 psi w / backstop at 25 psi (70 - 175 bar w / backstop at 1.7 bar)
2000 psi (140 bar) Standard setting

N Nitrile

V Viton

Special manufacturing

R * Screw adjustment with locking

ATTENTION: * Special setting to be confirmed at the time of ordering. Customer specified adjustments will be engraved on the nut.
