Home>Hydraulic elements>Cartridge valves>SUN Series CACA Hydraulic Relief Valve

SUN Series CACA Hydraulic Relief Valve

Pilot lightning relief valves are manufactured to control excess loading.

This valve is also known as a motion control valve or an over center valve.

More details...

Availability : On request, usually shipped in 3 weeks

254,65 €

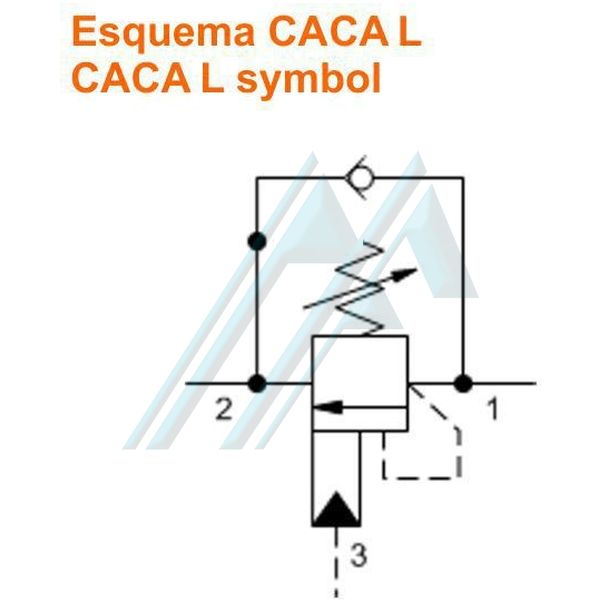

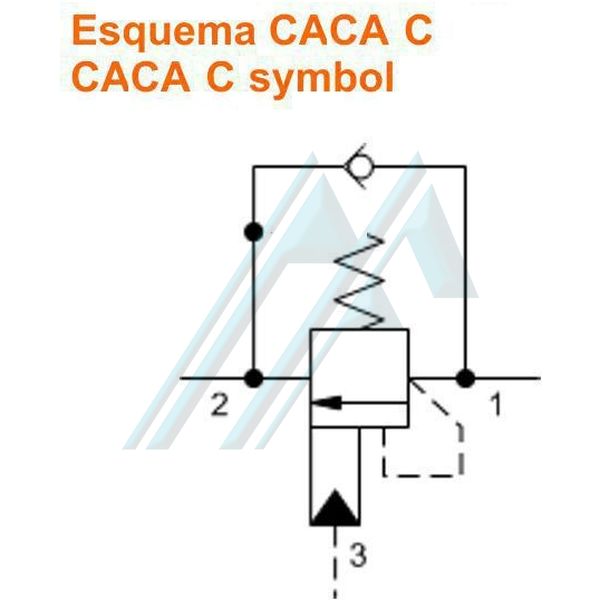

The non-return valve allows free flow from the directional valve (2) to pressure (1) while a direct, pilot-operated discharge valve controls the flow from 1 to 2. The pilot (3) lowers the effective setting of the discharge valve to a value determined by the piloting ratio. The back pressure at 2 does not affect the valve setting because the spring chamber has atmospheric reference.
.
Maximum flow: 60 liters;
Cavity: T11-A.
.
Standard options

I send

Pressure setting

Gaskets

C * Anti-tampering system - factory setting

L Standard screw adjustment

H 1000 - 4000 psi (140 - 350 bar)

3000 psi (210 bar) Standard setting

I 400 - 1500 psi (28 - 105 bar)

1000 psi (70 bar) Standard setting

N Nitrile

V Viton

Special manufacturing

R * Screw adjustment with locking

ATTENTION: * Special setting to be confirmed at the time of ordering. Customer specified adjustments will be engraved on the nut.
