90° elbow threaded nut M-52X150 to hydraulic pipe Ø 42 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 42 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
51,29 €
90° elbow threaded nut M-52X150 to hydraulic pipe Ø 38 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 38 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
122,42 €
90° elbow threaded nut M-45X200 to hydraulic pipe Ø 35 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-45X200.- For hydraulic pipe Ø 35 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
37,50 €
Single-acting pneumatic cylinder with piston diameter 25 mm
- Single-acting pneumatic cylinder. - Front spring. - Piston diameter Ø 25 mm. - Stroke 50 mm. - Material of the stem and sleeve stainless steel. - Working temperature 0ºC to +80ºC. - Working pressure from 1 Bar to 10 Bar.
75,45 €
- PVDA-LAN pressure reducing cartridge valve
- Mounting in T-21A cavity. - Pilot operated. - Adjustment using allen screw. - Adjustment from 7 to 210 Bar. - Nitrile gasket material.
287,86 €
Pressure regulating valve for threading in block Hawe CDK 3 51
- Pressure regulator valve for threading into a block. - Block not included. - Flow rate 12 l/min. - Pressure regulation from 15 to 165 BAR. - Adjustable with tool.
226,00 €
Flexible 1/4" double textile braid tubing
SELLING PRICE PER METER: 1 UNIT = 1 METER
4,63 €
Flexible tubing 3/16" double textile braid
SELLING PRICE PER METER: 1 UNIT = 1 METER
5,96 €
Recommended working pressure: 0 - 12 bar.
Maximum working pressure: 35 bar.
Working temperature: From -20 ºC to +100 ºC, with NBR seals.
Flow: 860 l / min.
Measurement carried out on a CD 25N M1 / 4 socket with ACD 25M coupling, at a pressure of 6 bar and a pressure drop of 0.5 bar.
Availability : On request, usually shipped in 3 weeks

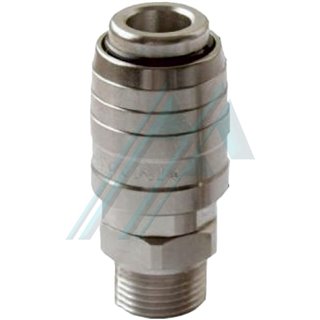

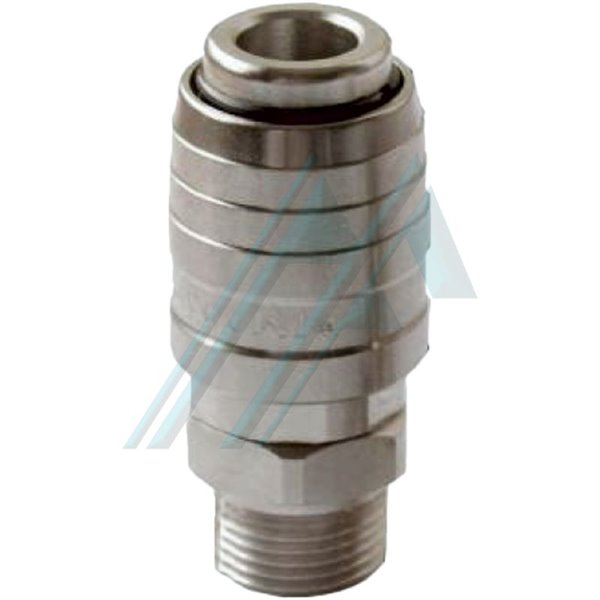

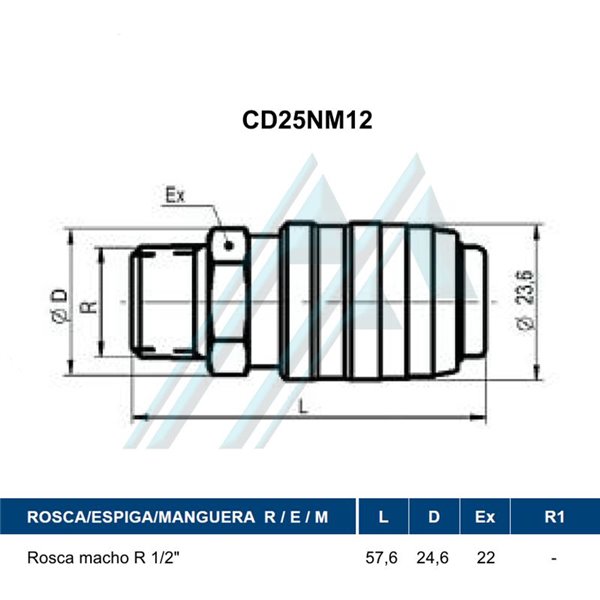

CD25NM12
DESCRIPTION
Easy to use, one-handed connection-disconnection, small size and great robustness.
High flow supply, favoring the performance of the installation.
Patented system.
Availability in free passage.
APPLICATIONS
Quick connection for pneumatic applications in general and non-aggressive or oxidizing fluids.
Especially suitable for applications with pneumatic tools, compressed air installations, industrial machinery, etc.
The prices shown on the website do not include VAT
The shipping costs are calculated automatically in the cart according to the weight of the product and the place of delivery
