SALES PRICE PER METER: 1 UNIT = 1 METER
Availability : Bajo pedido, normalmente enviado en 4 días
HID100403
JIC 37° female plug with 9/16" UNF thread
- Carbon steel material. - 37º inverted cone closure. - Dichromate surface treatment.
3,17 €
M-12X150 Male Adapter to M-14X150 Idler Nut Heavy Series
- DIN 2353 standard. - Heavy series. - Working pressure 160 Bar. - Carbon steel material. - Dichromate surface treatment.
4,46 €
JIC 37° female plug with 7/16" UNF thread
- Carbon steel material. - 37º inverted cone closure. - Dichromate surface treatment.
1,79 €
JIC 37° female plug with 1/2" UNF thread
- Carbon steel material. - 37º inverted cone closure. - Dichromate surface treatment.
1,58 €
NG6 3E-CV bolt with 3/8" inlet and outlet threads
- Base plate for mounting 3 NG-6 valves. - With pressure regulation. - 3/8" inlet and outlet threads.
256,10 €
Pressure gauge Ø 40 from 0-12 Bar rear connection G 1/8".
9,82 €
Automatic air vent special for solar energy 3/8" male thread
10,88 €
- With 250 micron filling filter. - Aeration sponge 40 microns. - Length 150mm. - 6 fixing screws.
25,90 €
SALES PRICE PER METER: 1 UNIT = 1 METER
Availability : Bajo pedido, normalmente enviado en 4 días
HID100403

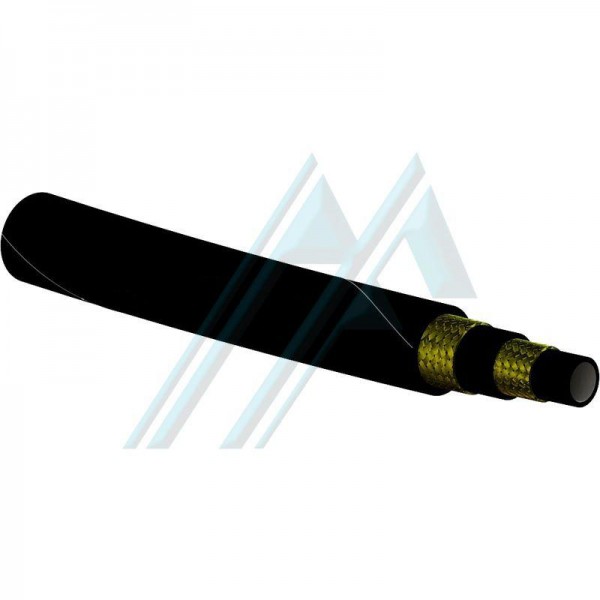

- Hydraulic hose reinforced with double braided high-pressure steel
According to ISO 1436 / DIN EN 853 type 2SN / SAE J517 type SAE 100R2 AT
- Inner tube Ø 4.8 mm. Oil-resistant synthetic rubber without welding
- Reinforcement: 2 high tensile steel wire braids
- Outer tube Ø 13.4 mm. Synthetic rubber resistant to abrasion, weather and oil.
- Working pressure 415 Bar.
- Burst pressure 1650 Bar.
- Safety factor: 4:1
- Application: petroleum based hydraulic fluids
- Temperature range: -40°C (-40°F) +100°C (+212°F); Intermittent service
- Max. Recommended temperature for water-based hydraulic fluids: +70°C (+158° F);
- Max. recommended air temperature: +60°C (+140° F)
