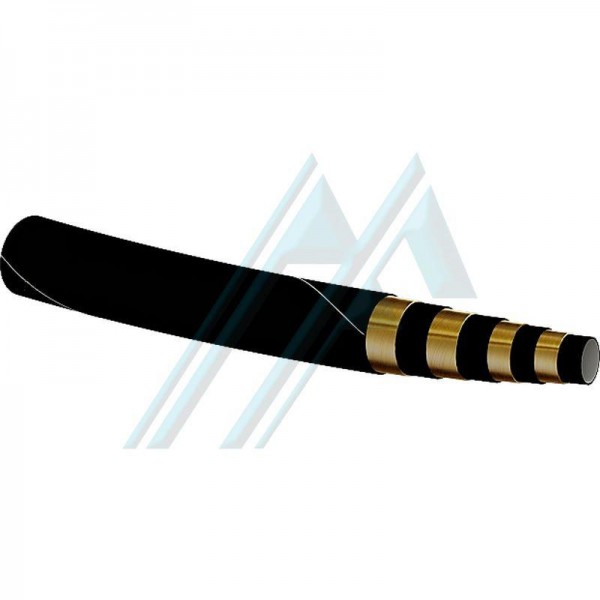

Flexible pipe 1"1/2 DIN EN 856 4SP

- Reinforced hydraulic hose with triple braided steel braid, very high pressure.

- According to ISO 3862 / EN 856 type 4SP.

- Inner tube Ø 38,3 mm. oil resistant synthetic rubber without welding.

- Reinforcement: 4 steel wire spirals with high tensile strength.

- Outer tube Ø 55 mm, black synthetic rubber, resistant to abrasion, oil and weathering.

- Working pressure 210 Bar.

- Burst pressure 840 Bar.

- Safety factor: 4:1.

- Application: petroleum based hydraulic fluids.

- Temperature range: 40°C (-40°F) +100°C (+212°F); Intermittent service: +120°C (+248°F).

- Max. recommended temp. for water-based hydraulic fluids: +70°C (+158°F).

- Max. recommended temperature for air: +60°C (+140°F).
