SALES PRICE PER METER: 1 UNIT = 1 METER
Availability : En stock, normalmente enviado en un día laboral
HID100424
Sleeve for parachute valve male thread 1" female thread 1".
- Sleeve for parachute valve.- Does not include inner valve.- Male 1" female 1" thread.- Carbon steel material.- Bichromated surface treatment.
10,75 €
Sleeve for parachute valve male thread 1/2" female thread 1/2".
6,95 €
Sleeve for parachute valve 1/4" male 1/4" female thread
7,11 €
Sleeve for parachute valve male thread 3/8" female thread 3/8".
15,48 €
Adapter 1/4" male 1/4" male 1/2" BSP thread reduction adapter
- BSP (Gas) thread reduction adapter.- 60° inverted cone.- Male 1/4" male 1/2" thread.- Carbon steel material.- Bichromated surface treatment.
2,38 €
Hose coupling with male thread 1"1/2 for hose Ø 40 mm
- Hose coupling with male thread.- Male thread 1"1/2.- For hose Ø 40 mm.- Material brass.
19,76 €
Bulkhead for tank thread 1" Stainless
25,99 €
Female thread 3/4" BSP female threaded hose fitting for hose inner Ø 20 mm
- Hose nut fitting.- 3/4" BSP female thread.- For hose Ø 20 mm inside.- Flat seat with NBR gasket.- Brass material.- Flat rubber gasket.
4,46 €
SALES PRICE PER METER: 1 UNIT = 1 METER
Availability : En stock, normalmente enviado en un día laboral
HID100424

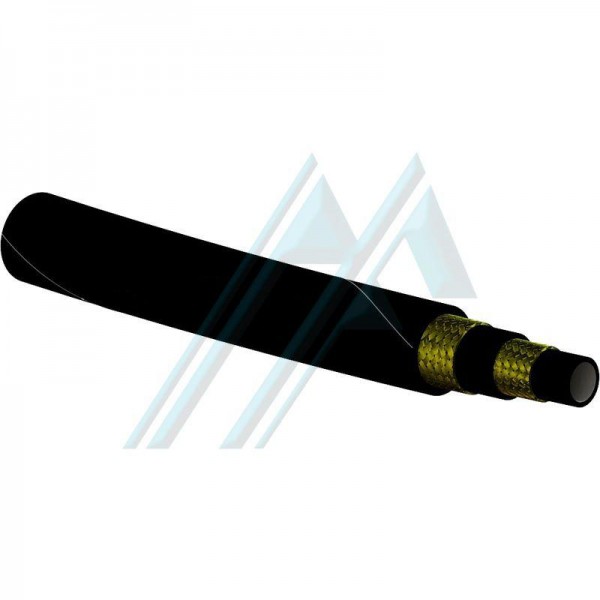

- Hydraulic hose reinforced with double braided high-pressure steel
According to ISO 1436 / DIN EN 853 type 2SN / SAE J517 type SAE 100R2 AT
- Inner tube Ø 38 mm. Oil-resistant synthetic rubber without welding
- Reinforcement: 2 high tensile steel wire braids
- Outer tube Ø 54.6 mm. Synthetic rubber resistant to abrasion, weather and oil.
- Working pressure 90 Bar.
- Burst pressure 360 Bar.
- Safety factor: 4:1
- Application: petroleum based hydraulic fluids
- Temperature range: -40°C (-40°F) +100°C (+212°F); Intermittent service
- Max. Recommended temperature for water-based hydraulic fluids: +70°C (+158° F);
- Max. recommended air temperature: +60°C (+140° F)
