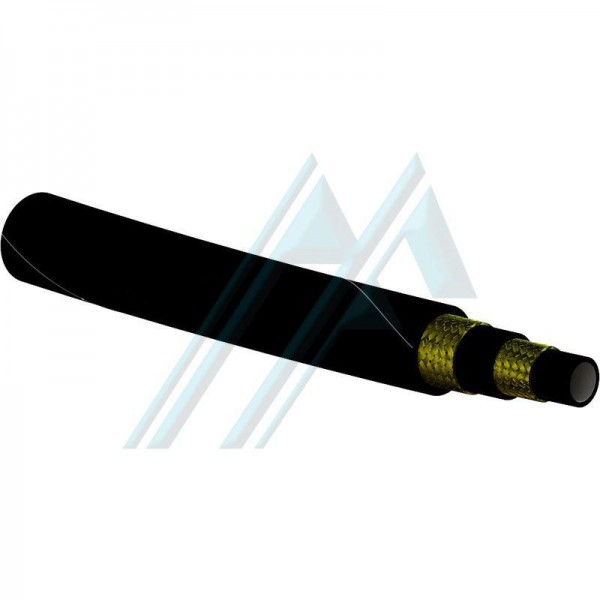

Flexible pipe 3/4" DIN EN 853 2SN / SAE 100R2AT

- Hydraulic hose reinforced with double braided high-pressure steel

According to ISO 1436 / DIN EN 853 type 2SN / SAE J517 type SAE 100R2 AT

- Inner tube Ø 19 mm. Oil-resistant synthetic rubber without welding

- Reinforcement: 2 high tensile steel wire braids

- Outer tube Ø 29.3 mm. Synthetic rubber resistant to abrasion, weather and oil.

- Working pressure 215 Bar.

- Burst pressure 860 Bar.

- Safety factor: 4:1

- Application: petroleum based hydraulic fluids

- Temperature range: -40°C (-40°F) +100°C (+212°F); Intermittent service

- Max. Recommended temperature for water-based hydraulic fluids: +70°C (+158° F);

- Max. recommended air temperature: +60°C (+140° F)
