90° elbow threaded nut M-36X200 to hydraulic pipe Ø 25 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-36X200.- For hydraulic pipe Ø 25 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
27,25 €
90° elbow threaded nut M-30X200 to hydraulic pipe Ø 22 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-30X200.- For hydraulic pipe Ø 22 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
15,46 €
90° elbow threaded nut M-30X200 to hydraulic pipe Ø 20 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-30X200.- For hydraulic pipe Ø 20 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
16,75 €
90° elbow threaded nut M-36X200 to hydraulic pipe Ø 28 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-36X200.- For hydraulic pipe Ø 28 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
25,58 €
Solenoid valve for compressed air 5 ways 3 positions
S9581-RFE
390,63 €
90° elbow threaded nut M-42X200 to hydraulic pipe Ø 30 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-42X200.- For hydraulic pipe Ø 30 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
35,96 €
Mini hydraulic power pack type HR 080
537,80 €
90° elbow threaded nut M-52X150 to hydraulic pipe Ø 42 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 42 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
51,29 €

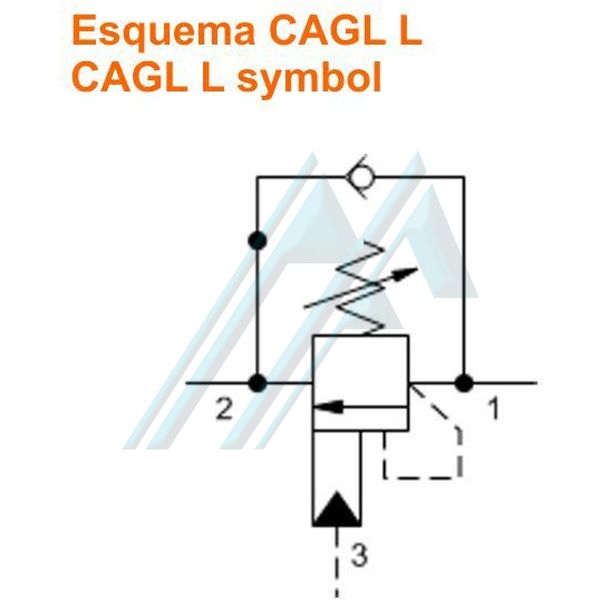

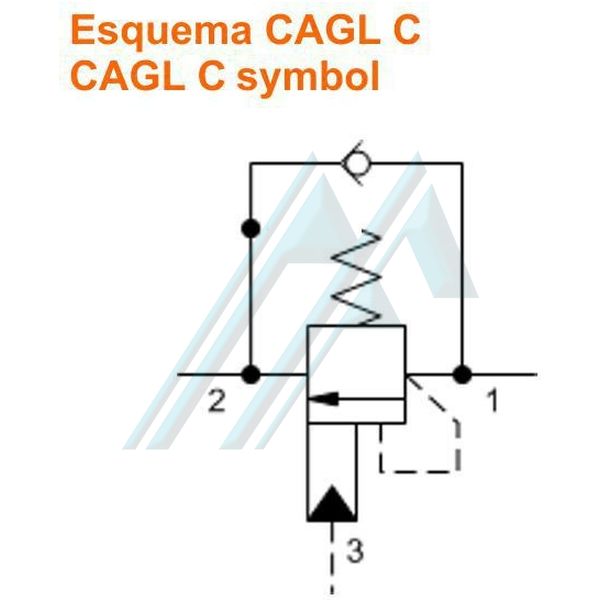

The non-return valve allows free flow from the directional valve (2) to pressure (1) while a direct, pilot-operated discharge valve controls the flow from 1 to 2. The pilot (3) lowers the effective setting of the discharge valve to a value determined by the piloting ratio. The back pressure at 2 does not affect the valve setting because the spring chamber has atmospheric reference.
.
Maximum flow: 240 liters;
Cavity: T17-A.
.
Standard options
I send | Pressure setting | Gaskets |
C * Anti-tampering system - factory setting L Standard screw adjustment | F 1000 - 2500 psi (70 - 175 bar) 2000 psi (140 bar) Standard setting G 2000 - 6000 psi (140 - 420 bar) 4000 psi (280 bar) Standard setting | N Nitrile V Viton |
ATTENTION: * Special setting to be confirmed at the time of ordering. Customer specified adjustments will be engraved on the nut. |
