Lubricating oil grade SAE 80W90 formulated with bases minerals of high degree of refining and additives of last generation.
Availability : In stock, usually dispatched in one working day
GEAR80W90EP5
90° elbow threaded nut M-52X150 to hydraulic pipe Ø 42 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 42 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
51,29 €
90° elbow threaded nut M-52X150 to hydraulic pipe Ø 38 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 38 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
122,42 €
90° elbow threaded nut M-45X200 to hydraulic pipe Ø 35 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-45X200.- For hydraulic pipe Ø 35 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
37,50 €
Single-acting pneumatic cylinder with piston diameter 25 mm
- Single-acting pneumatic cylinder. - Front spring. - Piston diameter Ø 25 mm. - Stroke 50 mm. - Material of the stem and sleeve stainless steel. - Working temperature 0ºC to +80ºC. - Working pressure from 1 Bar to 10 Bar.
75,45 €
- PVDA-LAN pressure reducing cartridge valve
- Mounting in T-21A cavity. - Pilot operated. - Adjustment using allen screw. - Adjustment from 7 to 210 Bar. - Nitrile gasket material.
287,86 €
Pressure regulating valve for threading in block Hawe CDK 3 51
- Pressure regulator valve for threading into a block. - Block not included. - Flow rate 12 l/min. - Pressure regulation from 15 to 165 BAR. - Adjustable with tool.
226,00 €
Flexible 1/4" double textile braid tubing
SELLING PRICE PER METER: 1 UNIT = 1 METER
4,63 €
Flexible tubing 3/16" double textile braid
SELLING PRICE PER METER: 1 UNIT = 1 METER
5,96 €

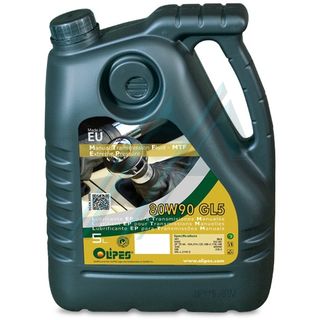

Lubricating oil grade SAE 80W90 formulated with bases minerals of high degree of refining and additives of last generation.
Availability : In stock, usually dispatched in one working day
GEAR80W90EP5
SPECIFICATIONS EXCEEDED:
API GL4; MIL-L-2105
MAN 341 N
ZF TE-ML 02A/ 16A/ 17A/ 19A
DESCRIPTION:
Lubricating oil grade SAE 80W90 for gears and gearboxes, which require a quality level API GL-4.
Formulated with bases minerals of high degree of refining and additives of last generation.
PROPERTIES AND ADVANTAGES:
- Good capacity to withstand loads medium-high, significantly reducing the friction losses.
- Excellent resistance to thermal degradation, providing protection against thickening of the oil and thus extends the useful life of the oil and the transmission.
- Reduced formation of deposits, keeping the fuel tank in an optimum state of cleanliness.
- High lubricity, wear protection and corrosion resistant.
- Good fluidity at low temperature.
- Compatible with seals and elastomers commonly used.
APPLICATIONS:
- Specially designed to lubricate gearboxes manuals, differentials, final and gears in crankcase closed, cut straight, helical, or gleason, as well as screw.
- Transmissions in light vehicles, media, and Public Work.
- Gears subject to high torque or high speeds of rotation.
Reducers subjected to loads medium-high.
SPECIFICATIONS / QUALITY LEVEL:
| API GL-4 | MB 235.1 |
| MAN 341 Z-1 / Z-2 | ZF TE ML 02 / 08 / 16A / 17A / 19A |
| MIL-L-2105 |
TECHNICAL DATA:
| PHYSICO-CHEMICAL CHARACTERISTICS | STANDARD | VALUE |
| SAE grade | SAE J306 | 80W90 |
| Kinematic viscosity 100 ºC (cSt) | D-445 | 13,5 – 18,5 |
| Viscosity at -26 ° C, Max (cP) | ASTM D-2983 | 150.000 |
| Freezing point (°C) | ASTM D-97 | < - 30 |
| Flash point (°C) | ASTM D-92 | > 220 |
| Test EP 4-Ball weld (kg) | ASTM D-2596 | 250 |
| Test Wear, 4-Ball, 20 kg/1800rpm/ + 55 ° C/1h, Footprint (mm) | ASTM D-2266 | <0,35 |
