90° elbow threaded nut M-52X150 to hydraulic pipe Ø 42 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 42 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
51,29 €
90° elbow threaded nut M-52X150 to hydraulic pipe Ø 38 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-52X200.- For hydraulic pipe Ø 38 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
122,42 €
90° elbow threaded nut M-45X200 to hydraulic pipe Ø 35 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-45X200.- For hydraulic pipe Ø 35 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
37,50 €
Single-acting pneumatic cylinder with piston diameter 25 mm
- Single-acting pneumatic cylinder. - Front spring. - Piston diameter Ø 25 mm. - Stroke 50 mm. - Material of the stem and sleeve stainless steel. - Working temperature 0ºC to +80ºC. - Working pressure from 1 Bar to 10 Bar.
75,45 €
- PVDA-LAN pressure reducing cartridge valve
- Mounting in T-21A cavity. - Pilot operated. - Adjustment using allen screw. - Adjustment from 7 to 210 Bar. - Nitrile gasket material.
287,86 €
Pressure regulating valve for threading in block Hawe CDK 3 51
- Pressure regulator valve for threading into a block. - Block not included. - Flow rate 12 l/min. - Pressure regulation from 15 to 165 BAR. - Adjustable with tool.
226,00 €
Flexible 1/4" double textile braid tubing
SELLING PRICE PER METER: 1 UNIT = 1 METER
4,63 €
Flexible tubing 3/16" double textile braid
SELLING PRICE PER METER: 1 UNIT = 1 METER
5,96 €

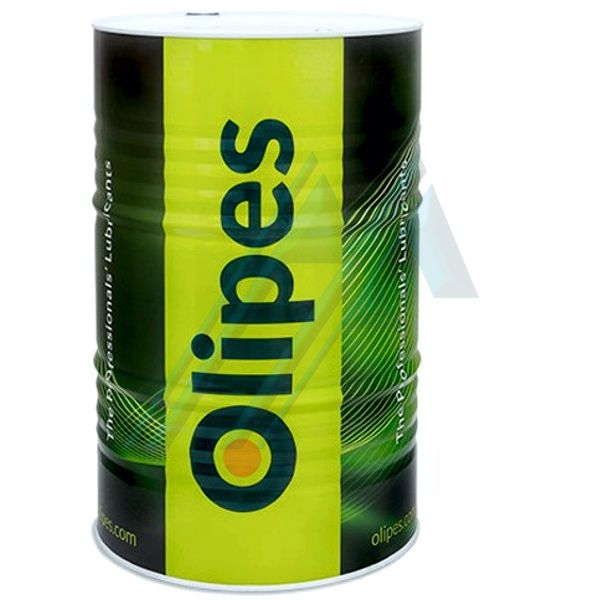

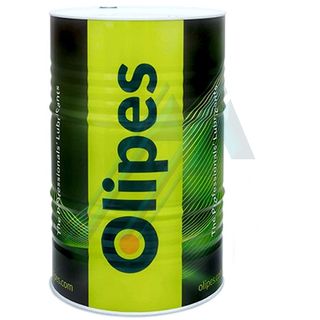

Hydraulic oil ISO 46.
Equivalent to HM.
It can be mixed.
High quality microfiltered mineral hydraulic fluids.
Hydraulic systems and controls, presses, cranes, booms, etc.
Hydraulic transmissions.
Hydraulic couplings.
Hydraulic systems subjected to high temperatures and / or high pressures.
Availability : On request, usually shipped within 2 days
FLUID46HLP200
EXCEEDED SPECIFICATIONS:
DIN 51524/2 (HLP)
AFNOR NFE 48-603 HM
EATON M-2950-S / EATON I-286-S3
CINCINNATI MACHINE P-68, P-69, P-70
DENISON HF-0, HF-1, HF-2
DESCRIPTION:
High quality microfiltered mineral hydraulic fluids, formulated with highly refined paraffinic bases and latest generation additives.
PROPERTIES AND ADVANTAGES:
- High resistance to oxidation and aging.
- Great antioxidant and anti-wear protection of the lubricated elements.
- Excellent demulsion and deaeration.
- Minimum formation of sludge and deposits.
- Excellent filterability.
- Compatible with joints and seals commonly used.
APPLICATIONS:
- Hydraulic systems and controls, presses, cranes, booms, etc.
- Hydraulic transmissions.
- Hydraulic couplings.
- Hydraulic systems subjected to high temperatures and / or high pressures.
SPECIFICATIONS / QUALITY LEVEL:
| DIN 51524/2 (HLP) | ISO 11158 (HM) |
| DIN 51519 | ISO 3448 |
| AFNOR NF E 48-603 HM | ISO 6743/4 (HM) |
| EATON VICKERS M-2950-S / EATON VICKERS I-286-S | SEB 181222 |
| CINCINNATI MACHINE P-68, P-69, P-70 | CASE IH MS 1216 |
| DENISON HF-0, HF-1, HF-2 | NH 632/646/668 |
TECHNICAL DATA:
| PHYSICOCHEMICAL CHARACTERISTICS | RULE | VALUE | ||
| ISO grade | ISO 3448 | 32 | 46 | 68 |
| Viscosity at 40 ºC (cSt) | ASTM D-445 | 29 - 35 | 42-50 | 62 - 74 |
| Viscosity at 100 ºC (cSt) | AST M D-445 | 5-6 | 6.5-7.5 | 8 - 9.5 |
| Viscosity index, Min | ASTM D-2270 | 100 | 100 | 100 |
| Density at 15 ° C, Typical (kg / l) | ASTM D-1298 | 0.865 | 0.870 | 0.880 |
| Freezing point (ºC) | ASTM D-97 | <-25 | <-20 | <- 20 |
| Flash point COC (ºC) | ASTM D-92 | > 200 | > 210 | > 220 |
| Corrosion to copper (3h, 100 ºC) | ASTM D-130 | 1 B | 1 B | 1 B |
| FZG, Stage | DIN 51354/2 | 12 | 12 | 12 |
| Air release, minutes, Max | DIN 51381 | 5 | 5 | 10 |
| Degree of cleanliness | ISO 4406/87 | 16/14/11 | 16/14/11 | 16/14/11 |
PRESENTATION:
5 L and 20 L containers, 200 L drums and 1000 L containers.
