The couplings of teeth curved BoWex® are flexible connections for axes and serve for the transmission of positive power to be particularly suitable to compensate for axial misalignment, radial and angular axes.
370,48 €
Crown for coupling BoWex 65. Material is nylon.
119,44 €
BOSCH pneumatical valve 0820219503
5/2 way valve with double penumatical piloting.
54,15 €
BOSCH pneumatical valve 0820005101
BOSCH pneumatical valve for in-line mounting.
66,00 €
BOSCH pneumatical electrovalve 0820020626
BOSCH pneumatical 3 way solenoide valve.
101,20 €
Fast plugs, light and compact, high resistance design. Conical thread.
3,60 €
Fast plugs, light and compact, high resistance design. Conical thread.
4,40 €
Fast plugs, light and compact, high resistance design. Conical thread.
3,30 €
PRECAUTIONS:
Low tendency to the formation of sludge, varnish, deposits and carbon residue
High lubricity attached to a higher power anti-wear, antiherrumbre and anti-corrosion.
Your employment translates into a perfect conservation of valves and a minimum wear of the moving parts.
Excellent thermal and chemical stability.
Fully compatible with gaskets and seals usually used.
High flash point, providing a higher level of security.
DESCRIPTION:

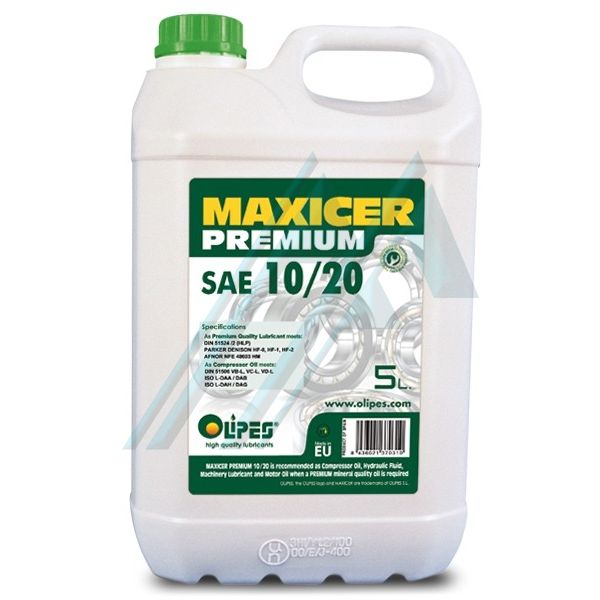

Lubricating oils mineral-based, formulated with special additives and detergent-free for the lubrication of air compressors and vacuum pumps.
PROPERTIES AND ADVANTAGES:
- Low tendency to the formation of sludge, varnish, deposits and carbon residue, keeping the system in an optimum state of cleanliness.
- High lubricity, power anti-wear and anti-corrosion, providing a perfect conservation of the elements lubricated (piston, screw, crankshaft, valves, etc.).
- Minimum formation of foam, avoiding wear on the surface by the phenomenon of cavitation.
- Excellent ability of desemulsión, minimizing the contact of moisture with the metal surfaces lubricated and to prevent the formation of rust.
- Excellent thermal and chemical stability, ensuring a high service life (up to 2000 hours depending on quality of the compressed air, presence of contaminants and humidity).
- Fully compatible with gaskets and seals usually used
- High flash point, providing a higher level of security.
- Excellent leakage in compressors rotary.
APPLICATIONS:
- Mechanisms and cylinders in compressors.
- Air compressors alternative, plunger or piston.
- Compressors rotary vane and screw.
- Air compressors-one-stage (2-3 bar) or multiple stages (up to 8 bar), air-cooled or by water.
- Hydraulic systems requiring fluids free of ash, due to its additive package free of zinc.
SPECIFICATIONS / QUALITY LEVEL:
Compressors | Hydraulic systems |
DIN 51506 VB-L, VC-L / RV-L | DIN 51524 / 2 (HLP) |
ISO 6521-L-DAA / DAB / DAH / DAG | DENISON HF-0, HF-1, HF-2 |
AFNOR NF E 48-603 HM |
TECHNICAL DATA:
PHYSICO-CHEMICAL CHARACTERISTICS | STANDARD | VALUE |
SAE grade | SAE J300 | 10/20 |
Grade ISO | ISO 3448 | 32 / 46 |
Density at 15 ° C, Typical (kg/l) | ASTM D-1298 | 0,86 – 0,88 |
Viscosity index, Min | ASTM D-2270 | 95 |
Freezing point (°C) | ASTM D-97 | <-20 |
Flash point COC (°C) | ASTM D-92 | >220 |
Sulphated ash (% wt) | ASTM D-874 | <0,01 |
Resistance to oxidation, Carbon Conradson, % | DIN 51352 p. 2 | <2,5 |
Corrosion to copper (3h,100 ºC) | ASTM D-130 | 1a |
PRESENTATION:
Containers of 5 L and Drums of 200 L.
